PROmax Switch-Mode Power Supply 960W 48V 20A

The Weidmüller PRO MAX 960W 48V 20A is a single-phase DIN rail switch-mode power supply delivering 48 V DC at 20 A for larger drive, conveyor and I/O distribution panels. It sits at the top of the PRO MAX range and is specified where a 48 V bus has to absorb heavy step loads: 20% continuous overload and short-term peaks to 300% of rated current, at 94% efficiency to limit heat inside the enclosure.

• Output: 48 V DC ±1%, 20 A, 960 W continuous
• Overload: 20% continuous, short-term peak loads to 300%
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 94%
• Power factor: 0.95 typical

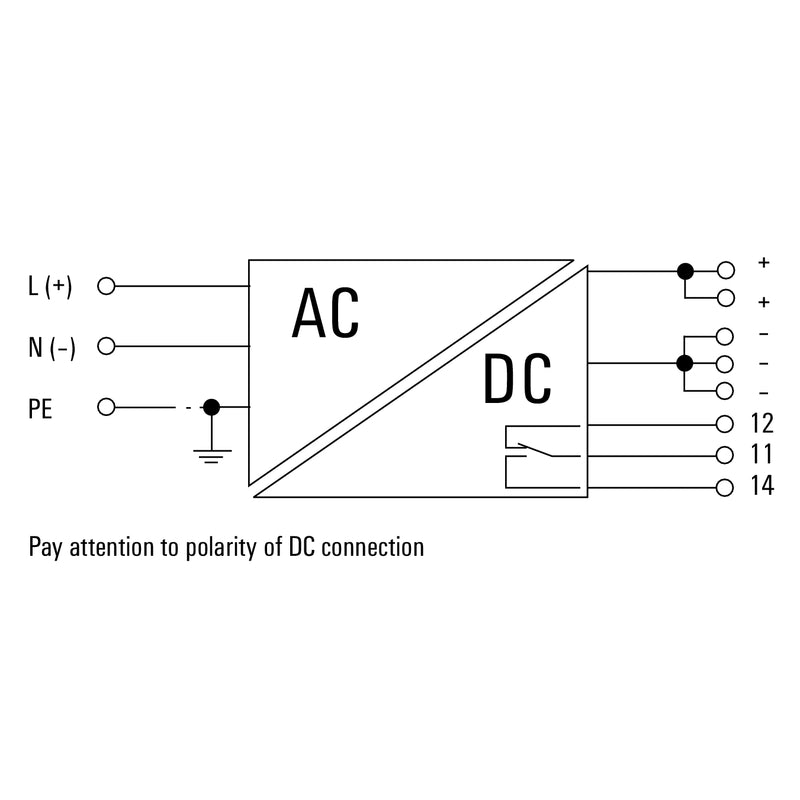

• Connection: Screw terminals (L/N/PE input, 8 output terminals)
• Mounting: Horizontal on TS 35 DIN rail

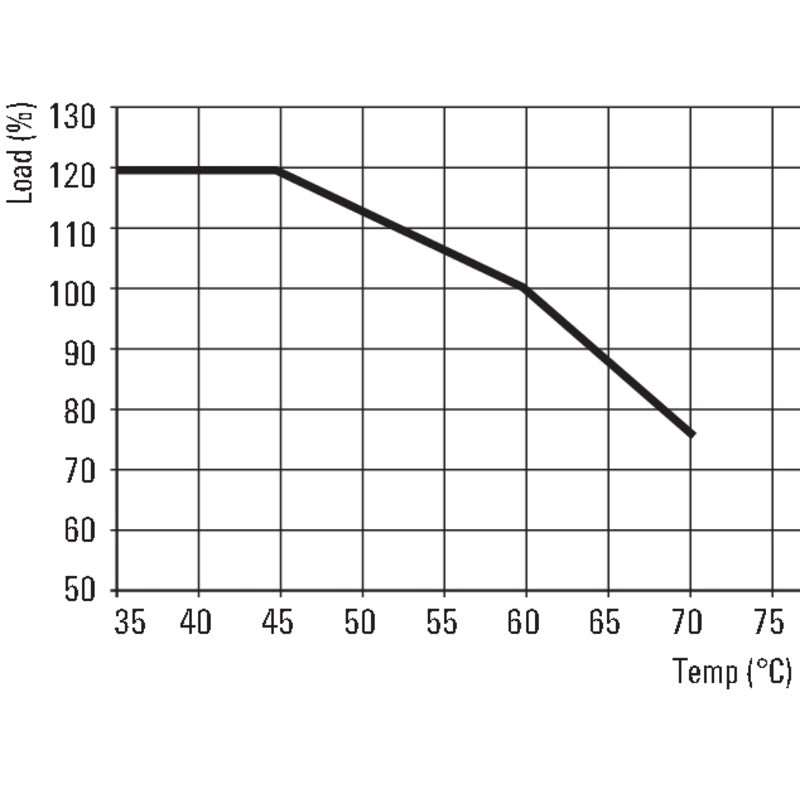

• Temperature: -25 °C to +70 °C; 24 A at 45 °C, 20 A at 60 °C, 15 A at 70 °C
• Dimensions: 140 x 130 x 150 mm (W x H x D), IP20
