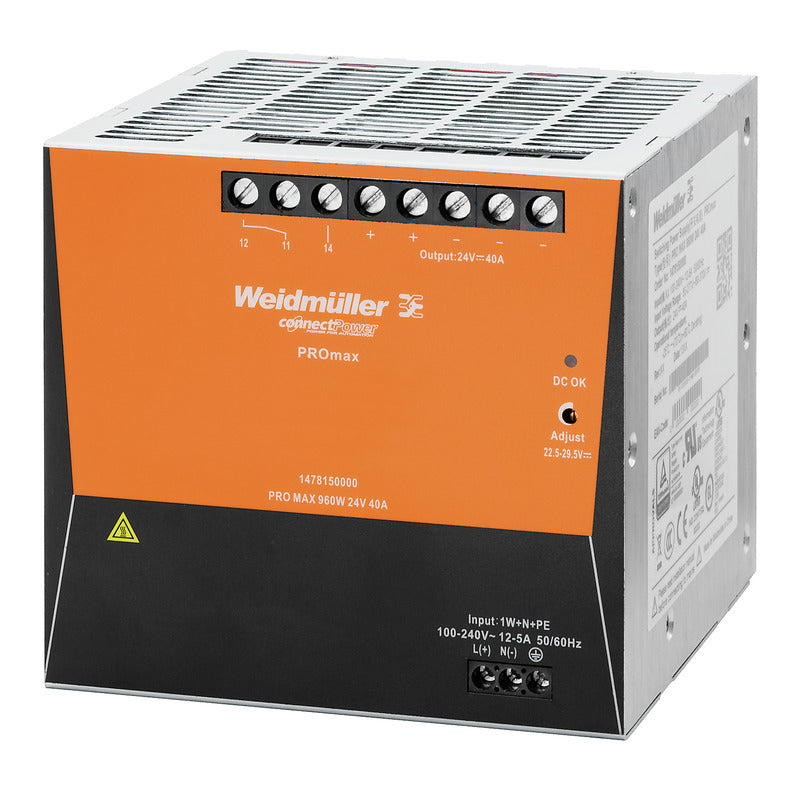

PROmax Switch-Mode Power Supply 960W 24V 40A

The Weidmüller PRO MAX 960W 24V 40A is a single-phase DIN rail switch-mode power supply sized for large control panels and distributed 24 V DC loads. Delivering the full 960 W from a single-phase feed, it suits sites with no three-phase supply at the panel, and the PRO MAX 300% peak capability lets it start heavy inductive loads without oversizing the unit.

• Output: 24 V DC ±1%, 40 A (960 W continuous), adjustable 22.5-29.5 V
• Peak load: up to 300% short-term; 20% continuous overload
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 93%
• Power factor: 0.95 typical at 230 V AC
• Connection: Screw terminals
• Mounting: TS 35 DIN rail, horizontal, 50 mm clearance above and below

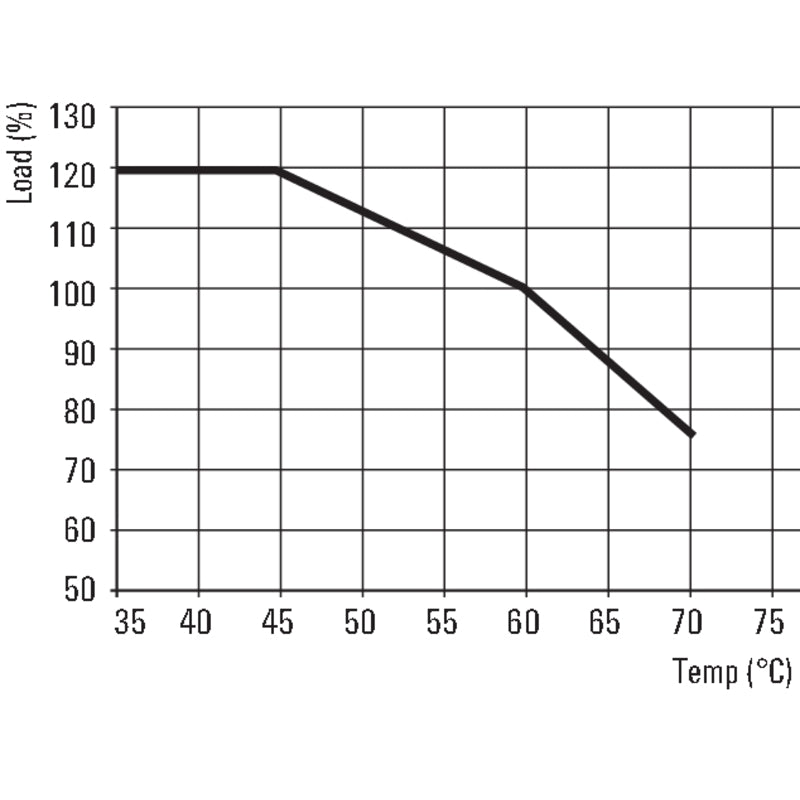

• Operating temperature: -25 °C to +70 °C; 48 A at 45 °C, 30 A at 70 °C
• Dimensions: 140 x 130 x 150 mm (W x H x D)
