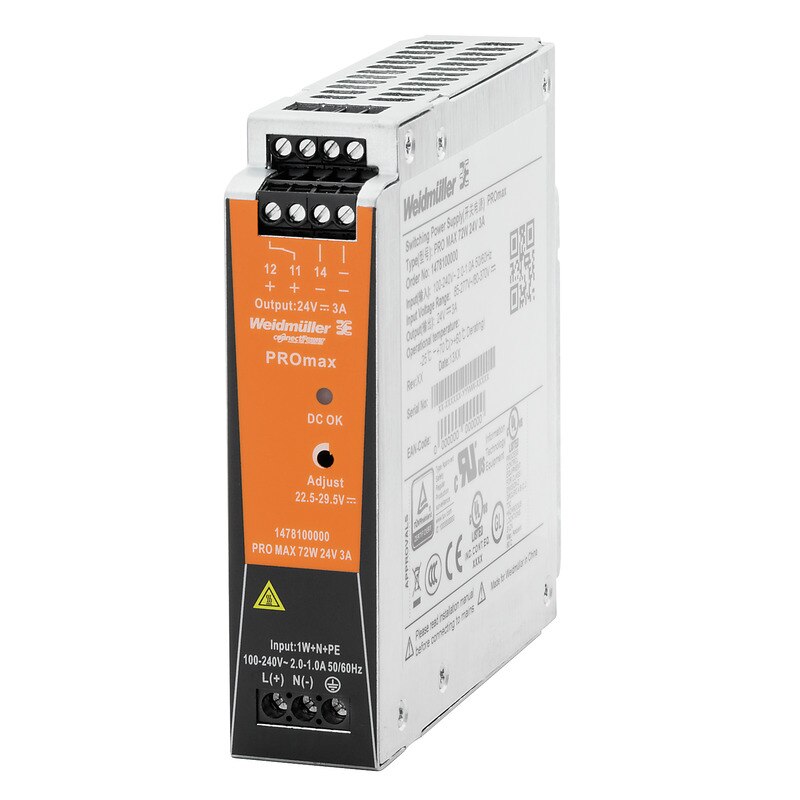

PROmax Switch-Mode Power Supply 72W 24V 3A

The Weidmüller PRO MAX 72W 24V 3A is a single-phase DIN rail switch-mode power supply for 24 V DC control circuits in machine and switchboard builds. PRO MAX is the performance family, adding 20% continuous overload capability and 300% short-term peak current, so it suits a small panel switching contactors, solenoids or valve banks that would fold a basic supply on inrush.

• Output: 24 V DC ±1%, 3 A (72 W continuous)
• Peak load: up to 300% short-term; 20% continuous overload
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 89%
• Power factor: 0.9 typical

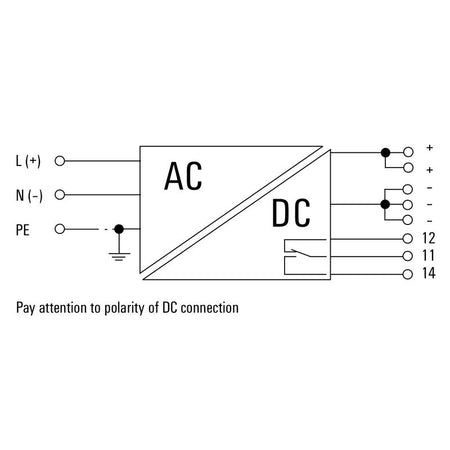

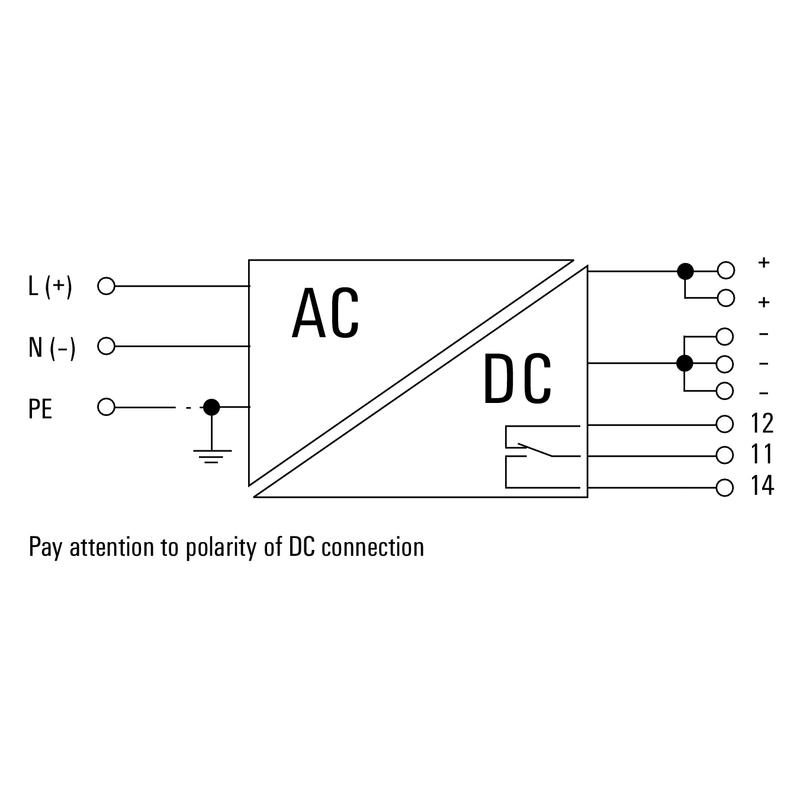

• Connection: Screw terminals
• Mounting: TS 35 DIN rail, horizontal, 50 mm clearance above and below

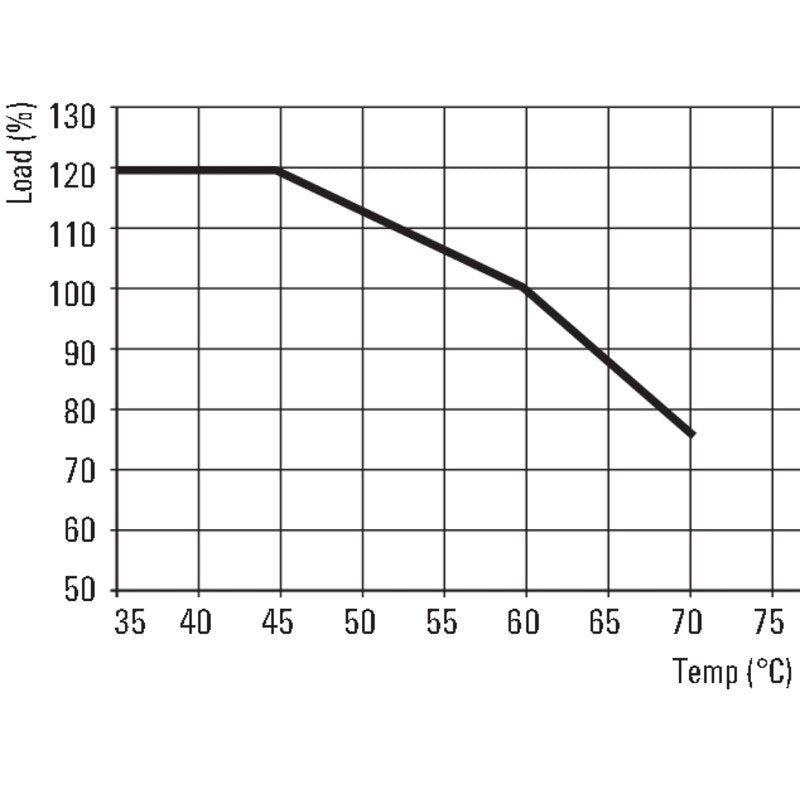

• Operating temperature: -25 °C to +70 °C; 3.6 A at 45 °C, 2.25 A at 70 °C
• Dimensions: 32 x 130 x 125 mm (W x H x D)
