PRO MAX 72W 12V 6A

Specifications

• IP Rating IP20
• Voltage 12V
• Size 72W

Standards & Conformities

Standards & certifications

IP20Ingress protection

Documents

Full Description

Weidmüller PRO MAX single-phase switch-mode power supply delivering 72 W at 12 V DC. Used where cameras, radios, telemetry equipment or other 12 V devices share a control cabinet with 24 V plant. Metal corrosion-resistant housing with LED and relay status indication.

• Input: 100…240 V AC single-phase, 45–65 Hz
• Output voltage: 12 V DC ± 1 %

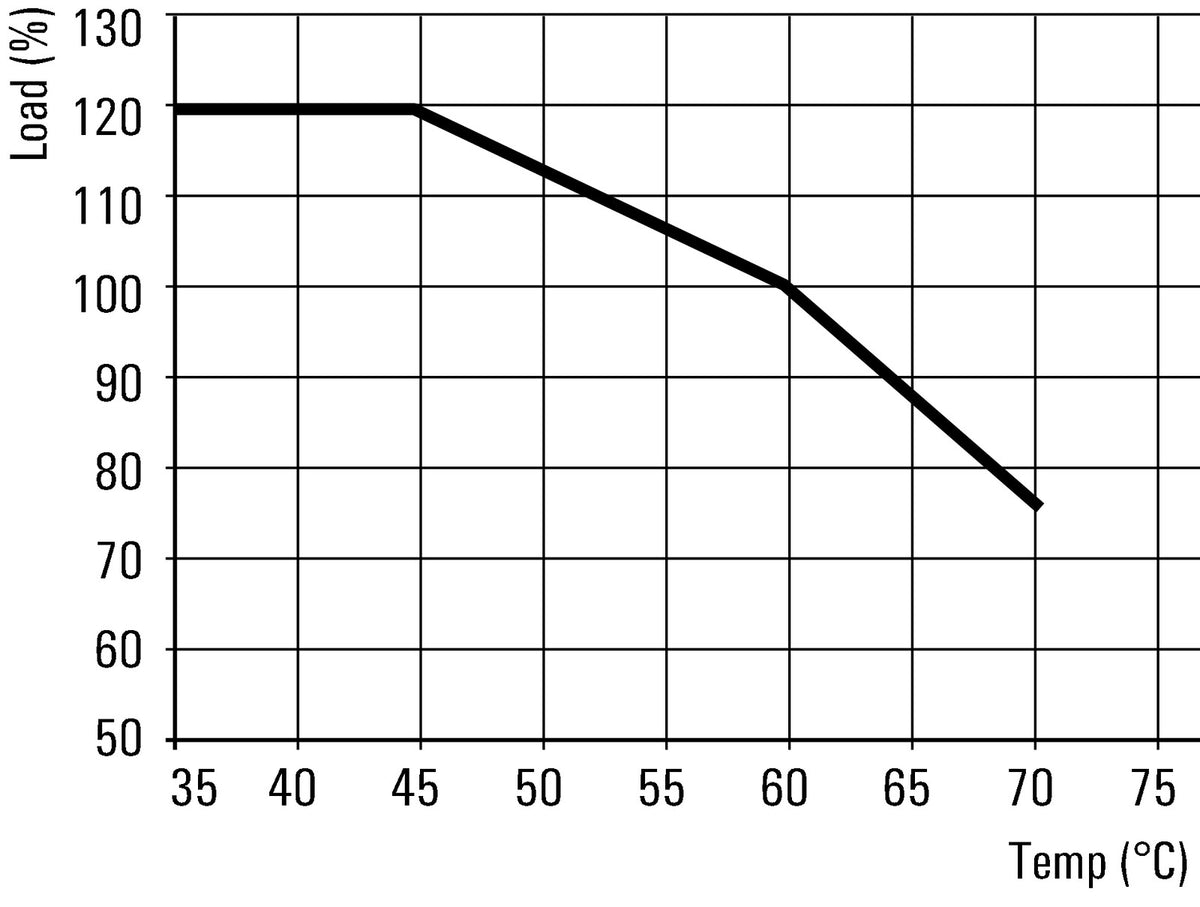

• Output current: 6 A @ 60 °C, up to 7.2 A @ 45 °C, 4.5 A @ 70 °C
• Output power: 72 W
• Efficiency: 89 %
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 32 x 130 x 125 mm
• Housing: metal, corrosion resistant
• Mounting: DIN rail TS 35
• Protection degree: IP20
