PROmax Switch-Mode Power Supply 240W 24V 10A

The Weidmüller PRO MAX 240W 24V 10A is a single-phase switch-mode power supply for TS 35 DIN rail, feeding a 24 V DC control circuit at up to 10 A. PROmax is the performance family, so this variant is chosen over PRO BAS or PRO ECO where contactors, solenoids or capacitive loads draw short current peaks that would trip a basic supply into fold-back.

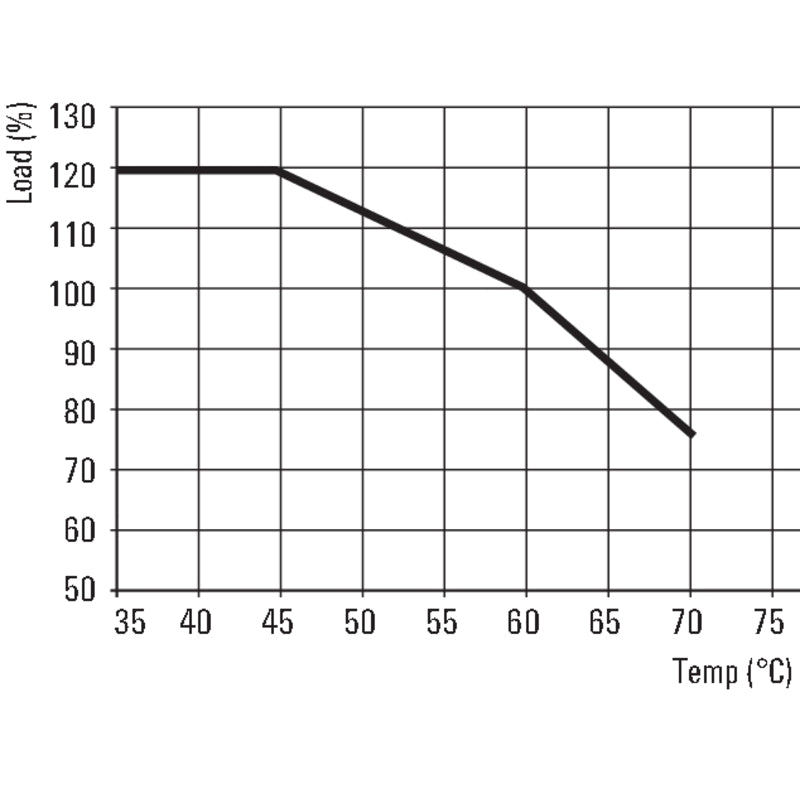

• Output: 24 V DC ± 1 %, 10 A at 60 °C (12 A at 45 °C, 7.5 A at 70 °C)
• Continuous power: 240 W
• Overload capability: Continuous overload to 120 %, short-term peak load to 300 %
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 91.5 %
• Power factor: Typically 0.95
• Connection: Screw terminals
• Operating temperature: -25 °C to +70 °C, derating above 60 °C
• Dimensions: 60 x 130 x 125 mm (W x H x D), 1050 g
