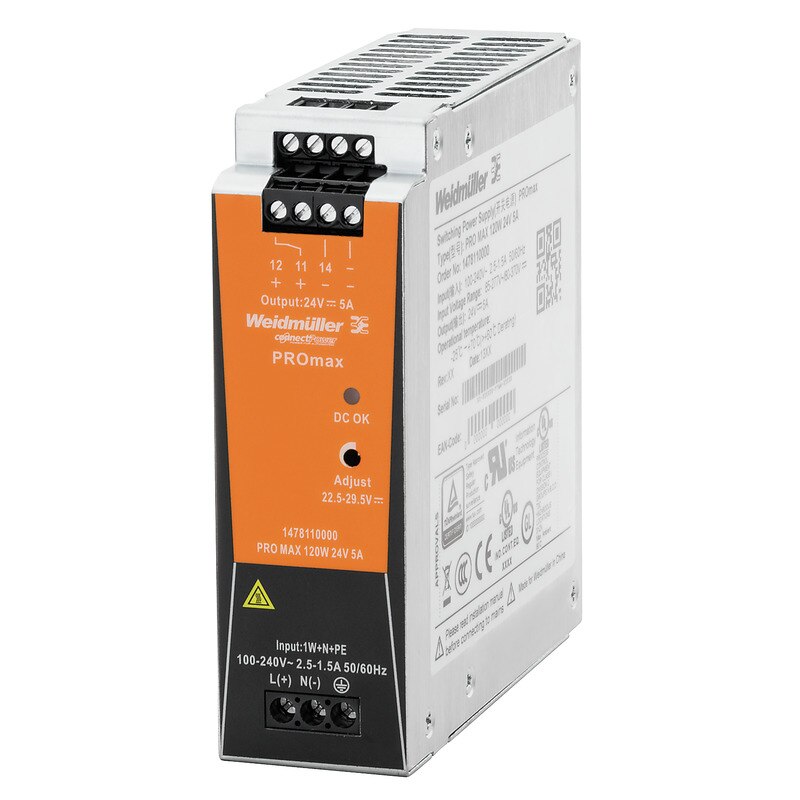

PROmax Switch-Mode Power Supply 120W 24V 5A

The Weidmüller PRO MAX 120W 24V 5A is a single-phase DIN rail switch-mode power supply that feeds 24 V DC control circuits in machine and plant control cabinets. The PRO MAX family is chosen over the basic and economy ranges where the load misbehaves at start-up: it holds a 20% continuous overload and delivers short-term peaks of up to 300% of rated current, which covers contactor, solenoid and small motor inrush without oversizing the supply.

• Output: 24 V DC ±1%, 5 A, 120 W continuous
• Overload: 20% continuous, short-term peak loads to 300%
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 89%
• Power factor: 0.9 typical

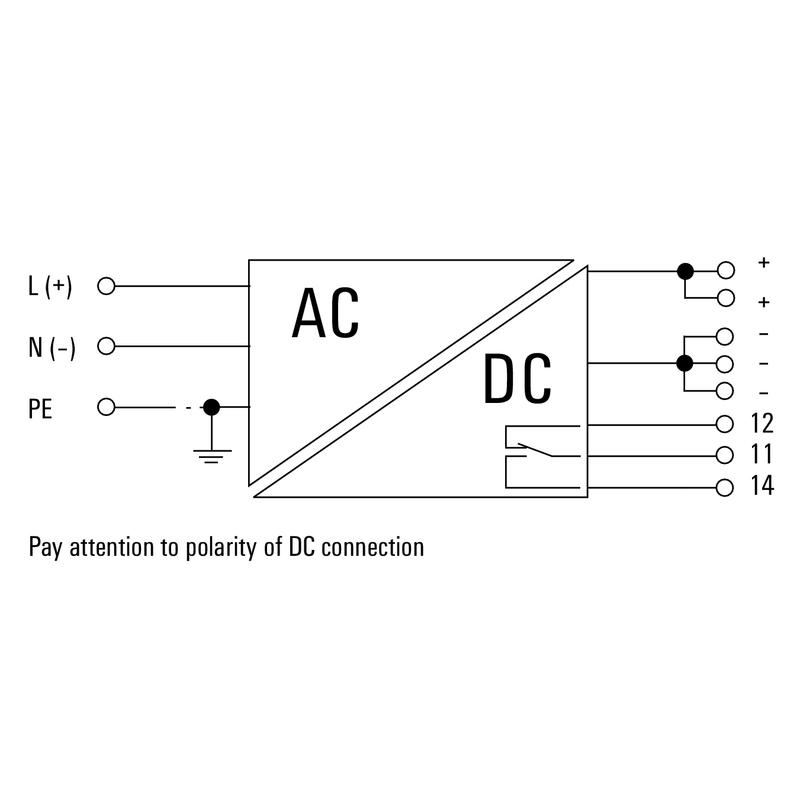

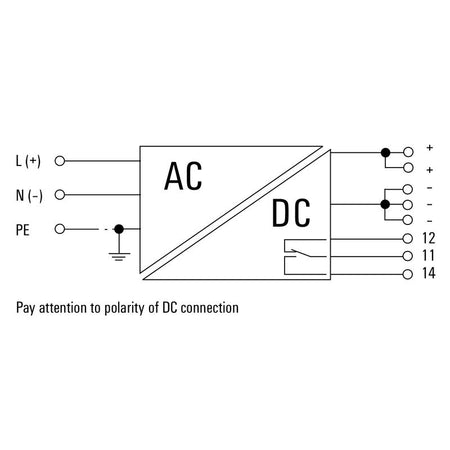

• Connection: Screw terminals (L/N/PE input, 8 output terminals)
• Mounting: Horizontal on TS 35 DIN rail

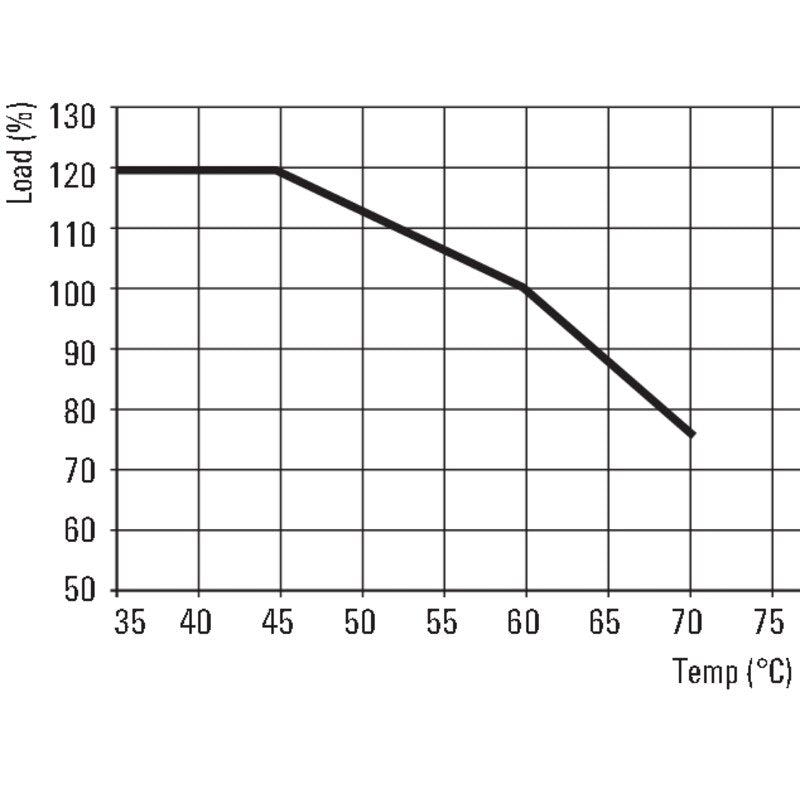

• Temperature: -25 °C to +70 °C; 6.0 A at 45 °C, 5 A at 60 °C, 3.75 A at 70 °C
• Dimensions: 40 x 130 x 125 mm (W x H x D), metal housing, IP20
