PRO MAX 120W 12V 10A

Specifications

• Type PROmax
• IP Rating IP20
• Voltage 12V
• Size 120W

Standards & Conformities

Standards & certifications

IP20Ingress protection

Documents

Full Description

Weidmüller PRO MAX single-phase switch-mode power supply delivering 120 W at 12 V DC — the higher-current 12 V option in the range, for cabinets running several 12 V loads from one rail.

• Input: 100…240 V AC single-phase, 45–65 Hz
• Output voltage: 12 V DC ± 1 %

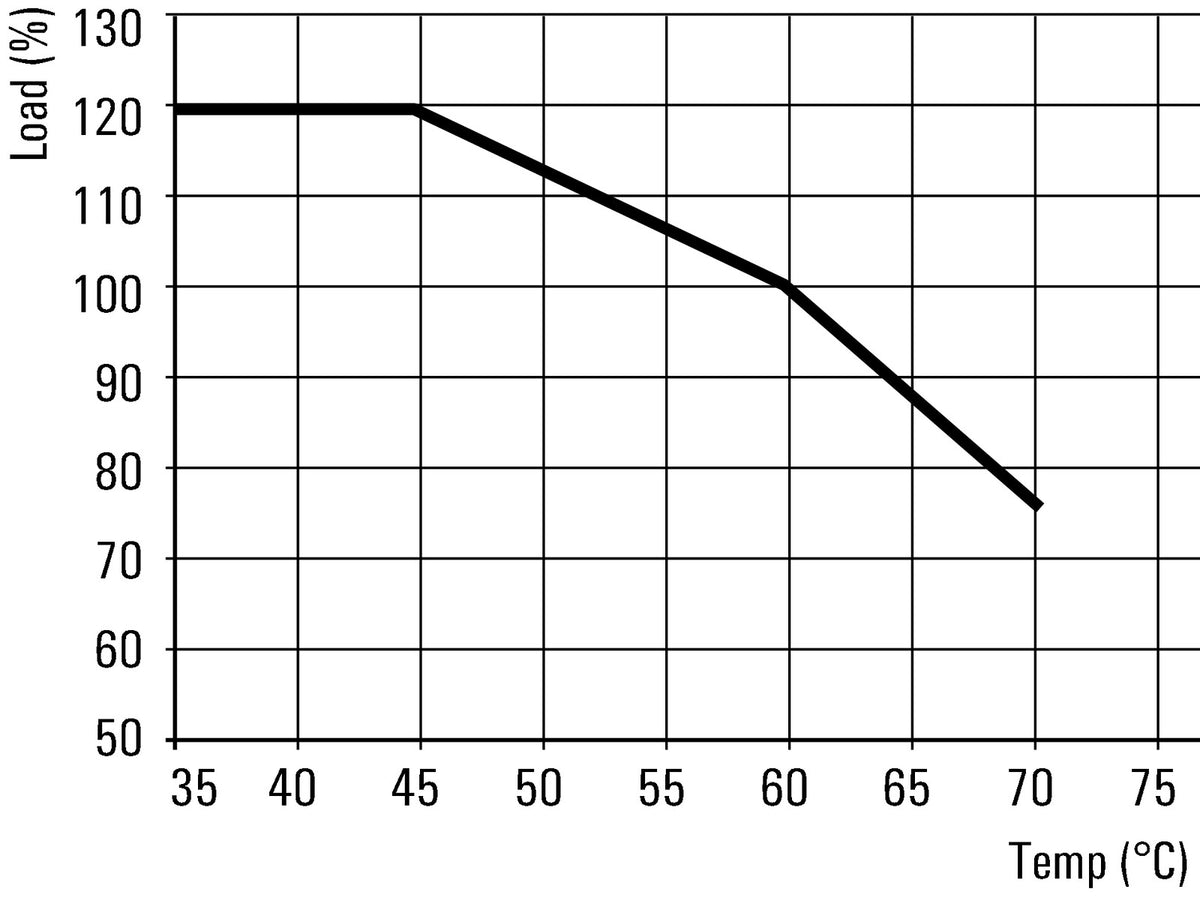

• Output current: 10 A @ 60 °C, up to 12 A @ 45 °C, 7.5 A @ 70 °C
• Output power: 120 W
• Efficiency: 89 %
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 40 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
