PROeco3 Switch-Mode Power Supply 960W 24V 40A II

Weidmüller PRO ECO3 three-phase switch-mode power supply delivering 960 W at 24 V DC. Requires a 3 x 400 to 3 x 500 V AC supply, or a 450…800 V DC link. PRO ECO is the value range — the same 24 V rail without the signalling and communication options of PRO TOP.

• Input: 3 x 400…3 x 500 V AC three-phase wide-range, or 450…800 V DC
• Output voltage: 24 V DC, adjustable 22–28 V by potentiometer

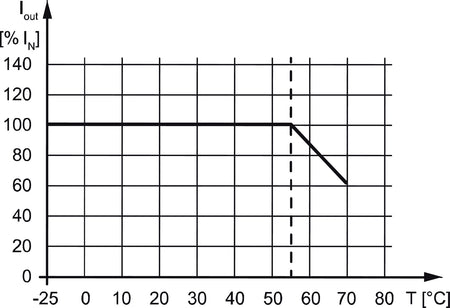

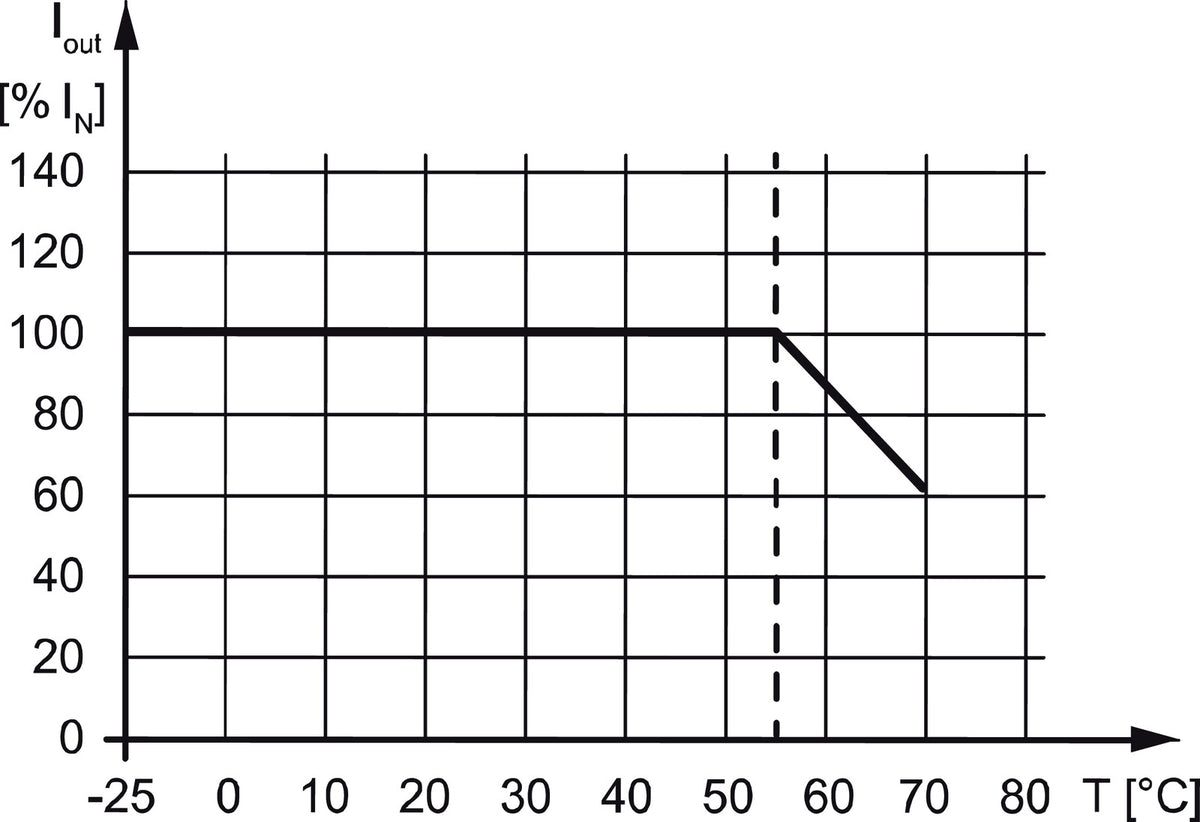

• Output current: 40 A @ 55 °C, 25 A continuous @ 70 °C
• Output power: 960 W
• Efficiency: approx. 92.6 % @ 400 V AC, 92.4 % @ 480 V AC
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 110 x 130 x 150 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
