PROECO SWITCH-MODE POWER SUPPLY 72W 24V 3A II SI

Standards & Conformities

Documents

Full Description

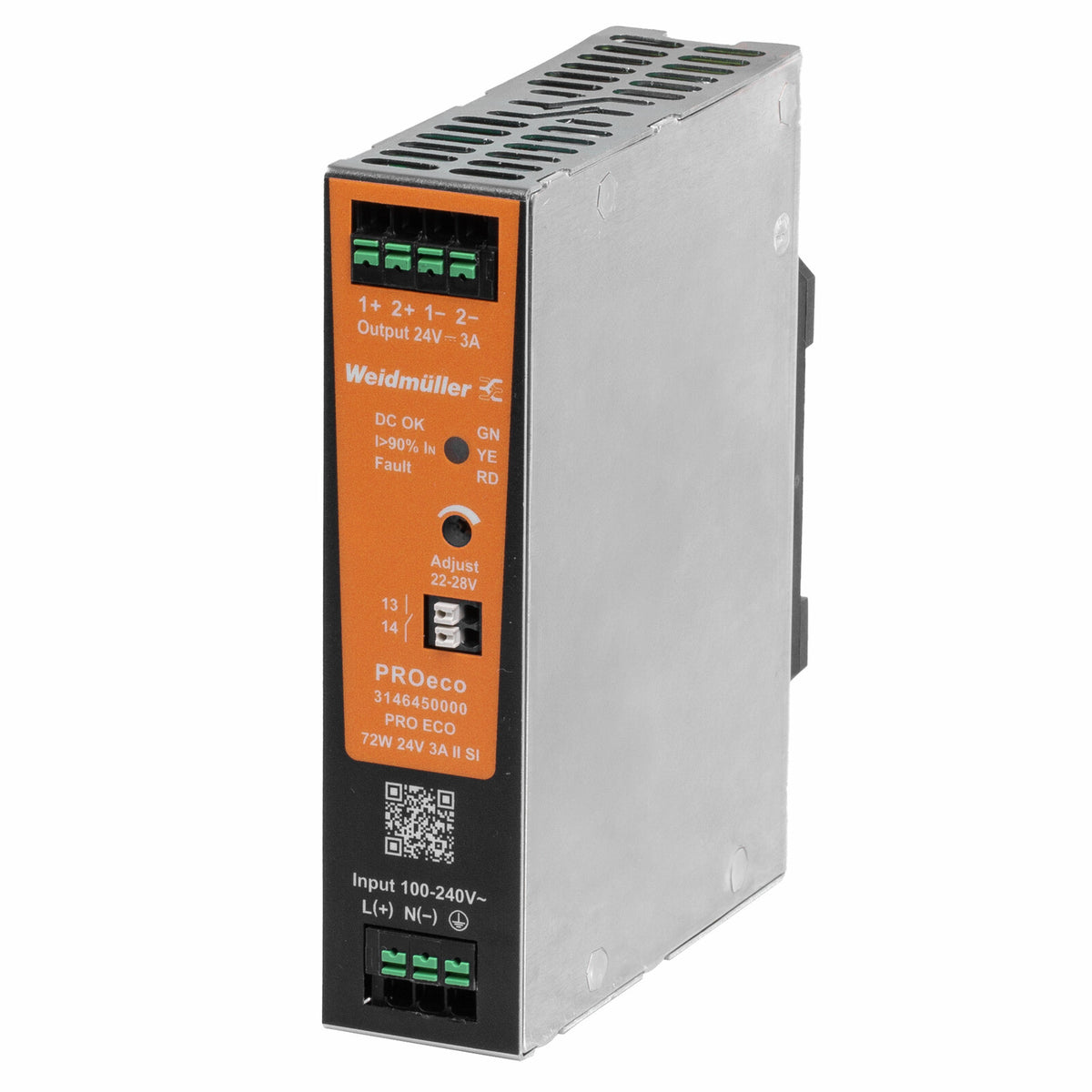

Weidmüller PRO ECO 72 W 24 V single-phase switch-mode power supply with the SNAP IN connection system — conductors push straight in without tools, which takes a noticeable amount of time out of panel build. 32 mm wide.

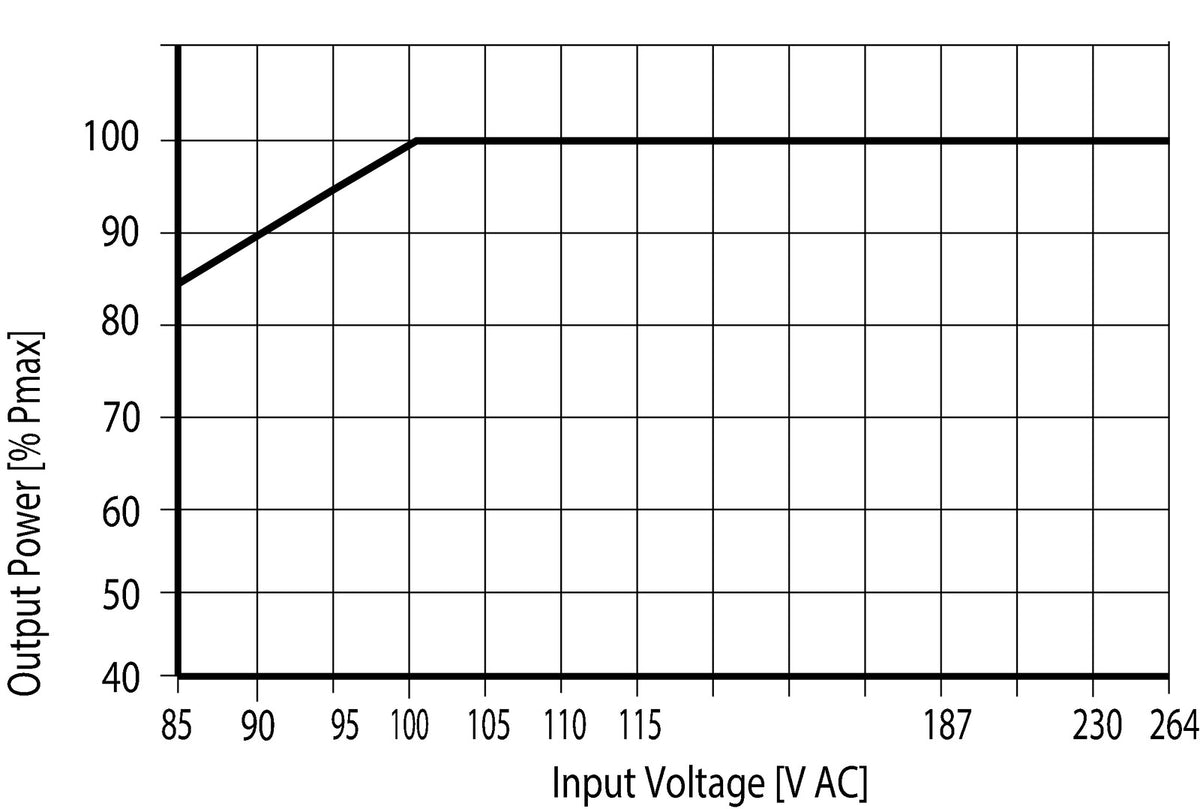

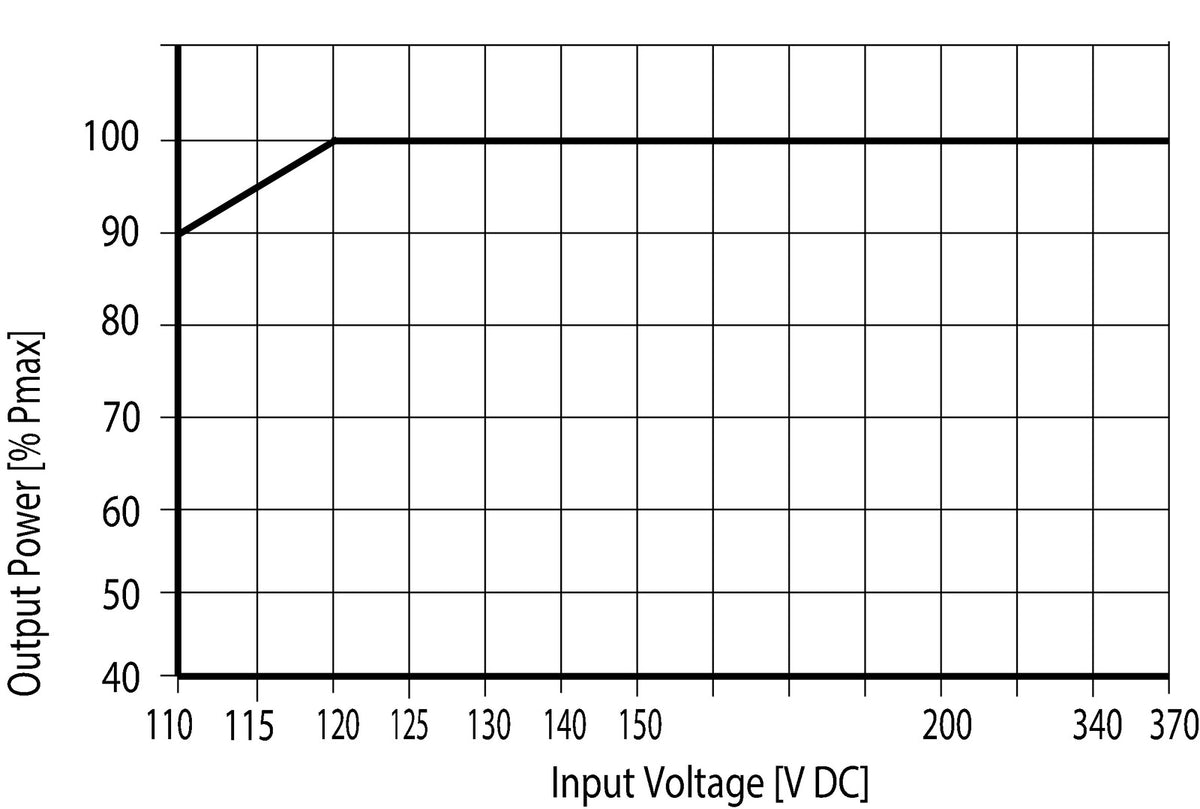

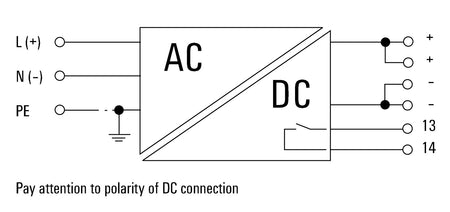

• Input: 100…240 V AC single-phase, or 120…340 V DC
• Output voltage: 24 V DC, adjustable 22–28 V by potentiometer

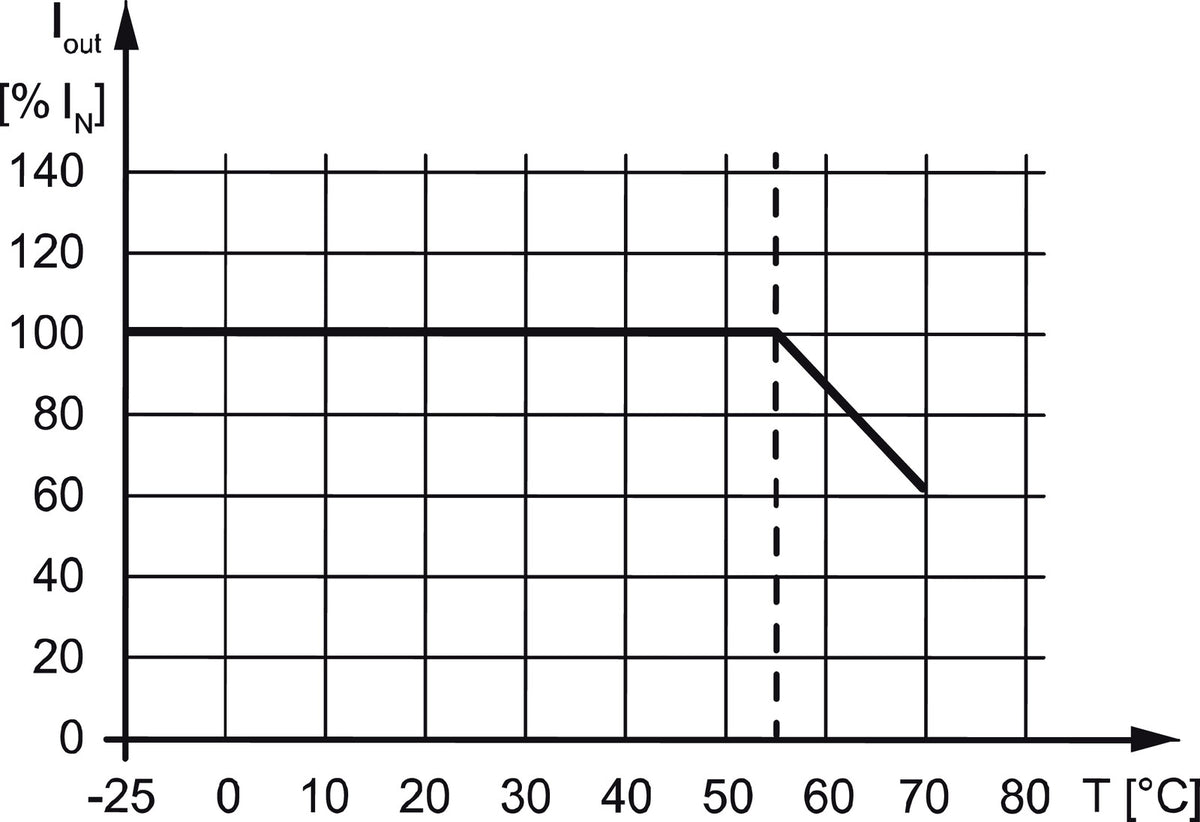

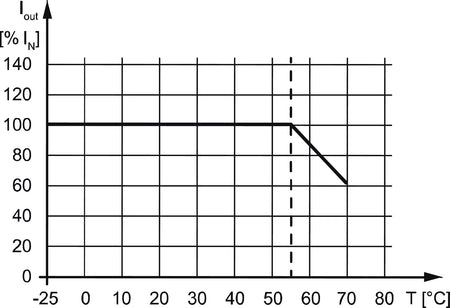

• Output current: 3 A @ 55 °C
• Output power: 72 W
• Efficiency: approx. 83.5 % @ 120 V AC, 87.5 % @ 230 V AC

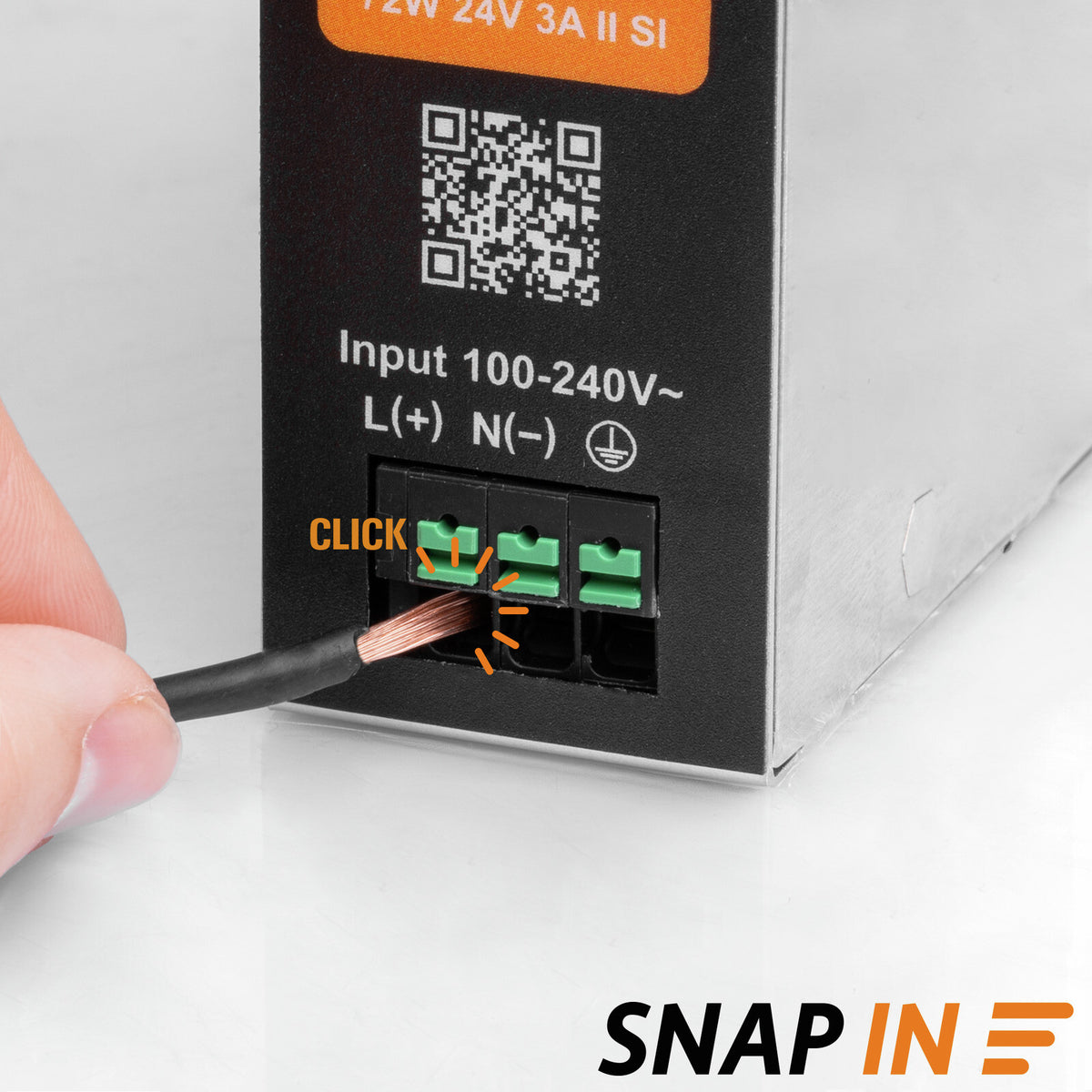

• Connection: SNAP IN, tool-free
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 32 x 130 x 100 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
