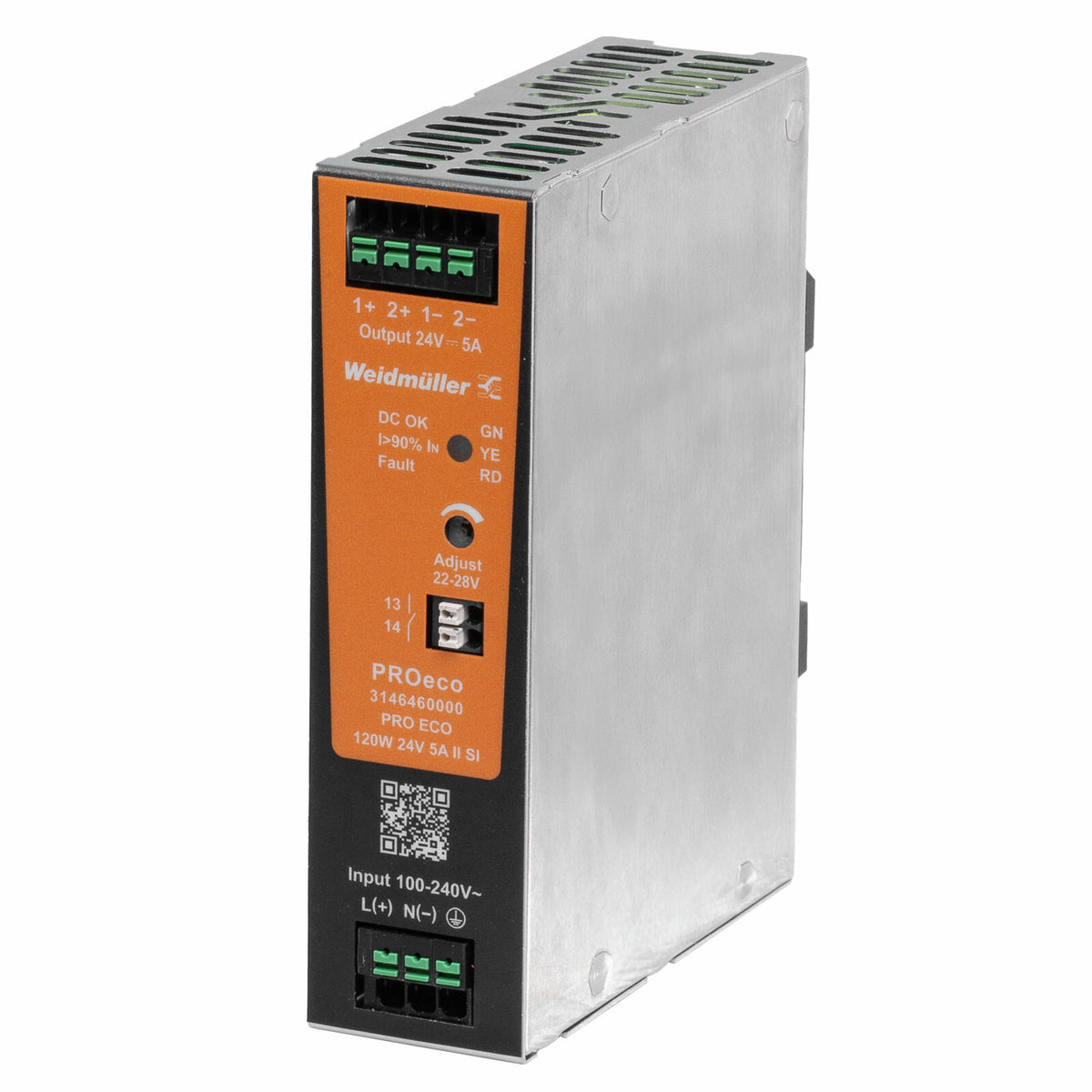

PROECO SWITCH-MODE POWER SUPPLY 120W 24V 5A II SI

Standards & Conformities

Documents

Full Description

Weidmüller PRO ECO 120 W 24 V single-phase switch-mode power supply with the SNAP IN connection system for tool-free wiring. 35 mm wide, 90 % efficient at 230 V AC.

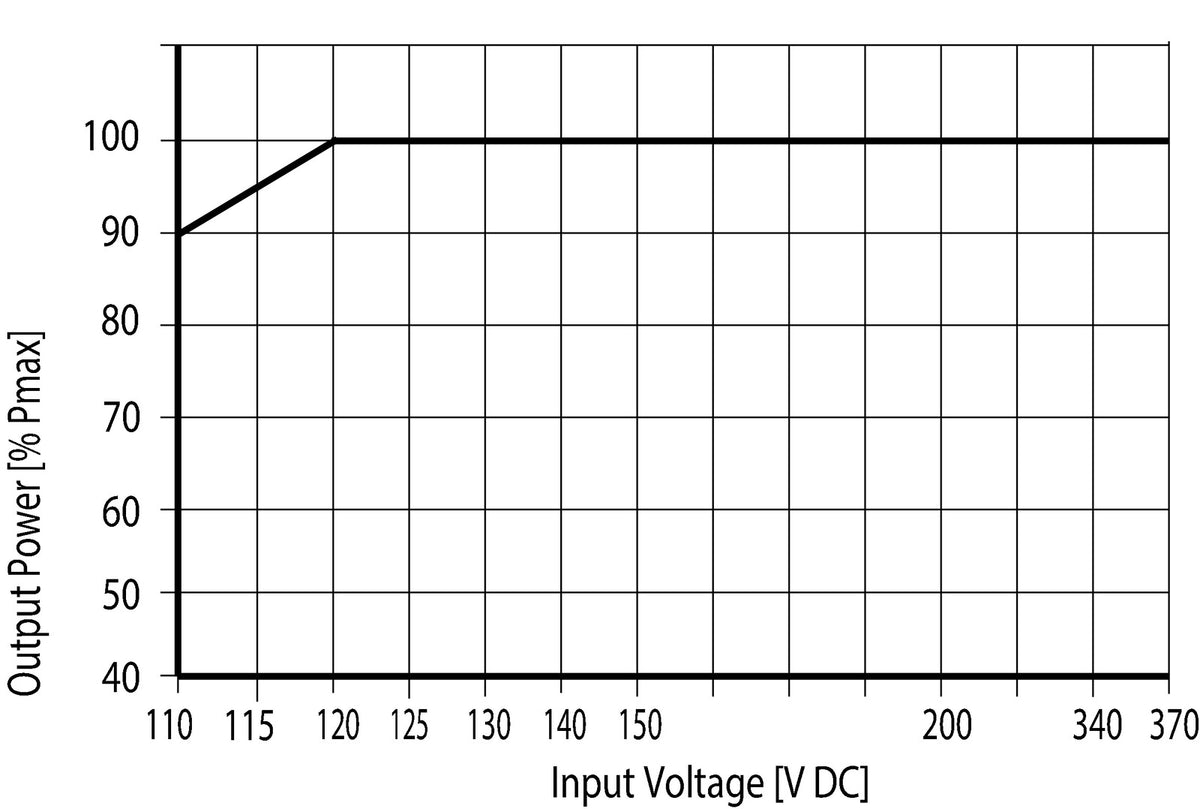

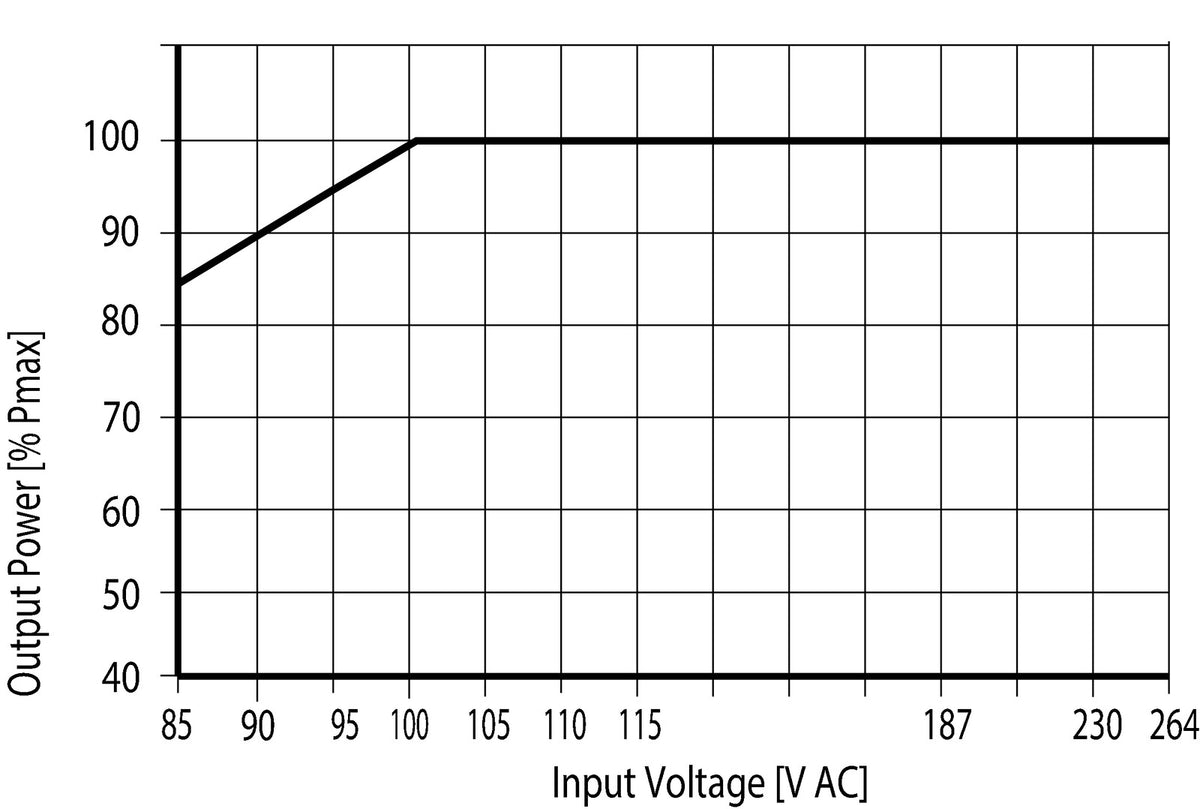

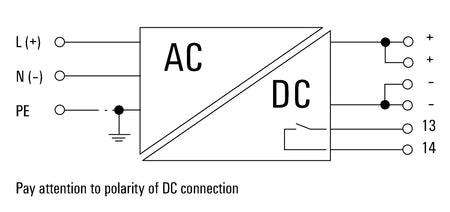

• Input: 100…240 V AC single-phase, or 120…340 V DC
• Output voltage: 24 V DC, adjustable 22–28 V by potentiometer
• Output current: 5 A
• Output power: 120 W
• Efficiency: typ. 88.4 % @ 120 V AC, 90.1 % @ 230 V AC

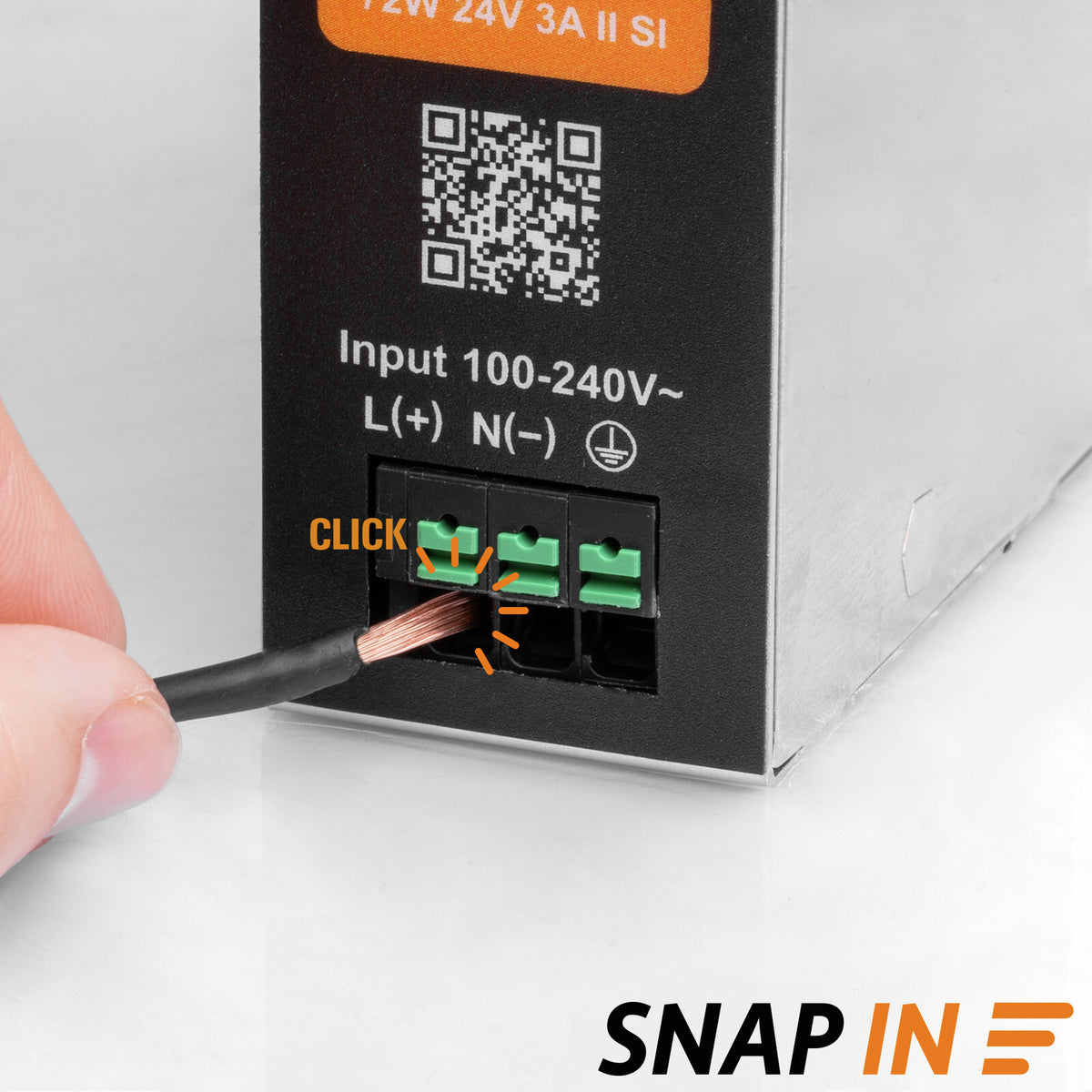

• Connection: SNAP IN, tool-free

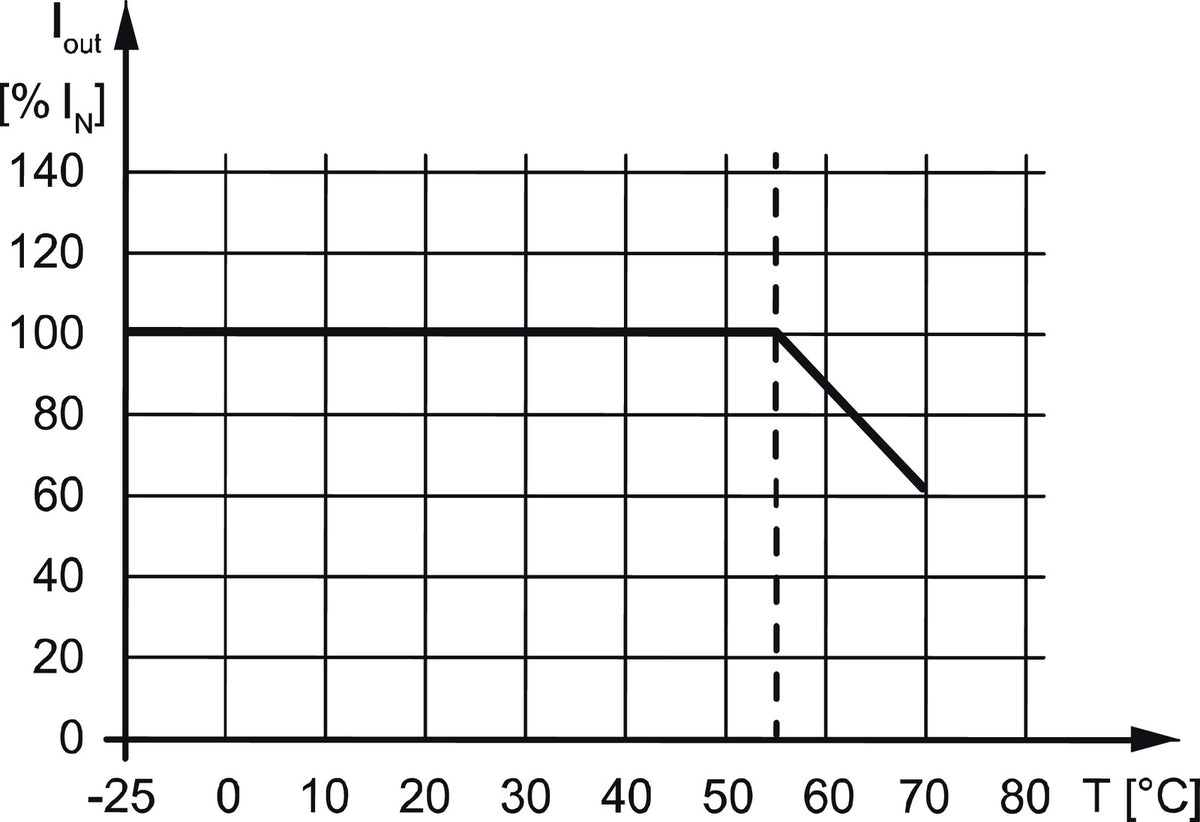

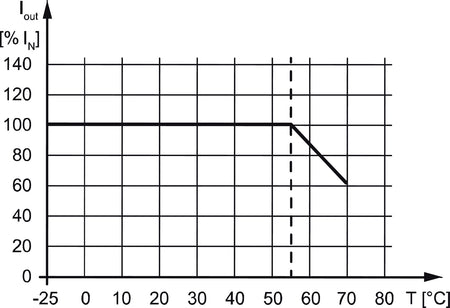

• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 35 x 130 x 100 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
