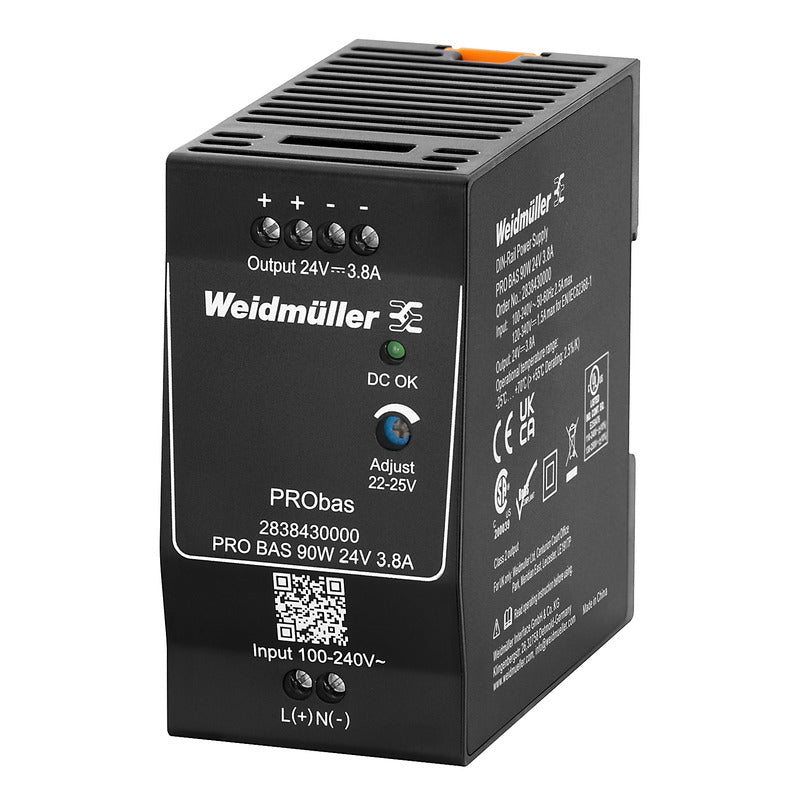

PRObas Switch-Mode Power Supply 90W 24V 3.8A

The Weidmüller PRO BAS 90W 24V 3.8A is a compact single-phase DIN rail switch-mode power supply for 24 V DC control circuits. PRO BAS is the basic family with no boost function, so it is chosen where the load is steady and known in advance, such as sensors, relays and small controllers, and where the 47 mm wide, 90 mm tall housing matters more than overload headroom.

• Output: 24 V DC, 3.8 A (90 W continuous), adjustable 22-25 V
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 89.4% at 230 V AC
• Mains buffering: 20 ms minimum bridging time on supply failure
• Connection: Screw terminals, 0.5-6 mm²
• Mounting: TS 35 DIN rail, horizontal, 50 mm clearance above and below
• Operating temperature: -25 °C to +70 °C, derating above 55 °C (2.375 A at 70 °C)
• Approvals: cULus (E258476), EN 61558-2-16, SELV to IEC 61010-1, RoHS
• Dimensions: 47 x 90 x 85 mm (W x H x D)
