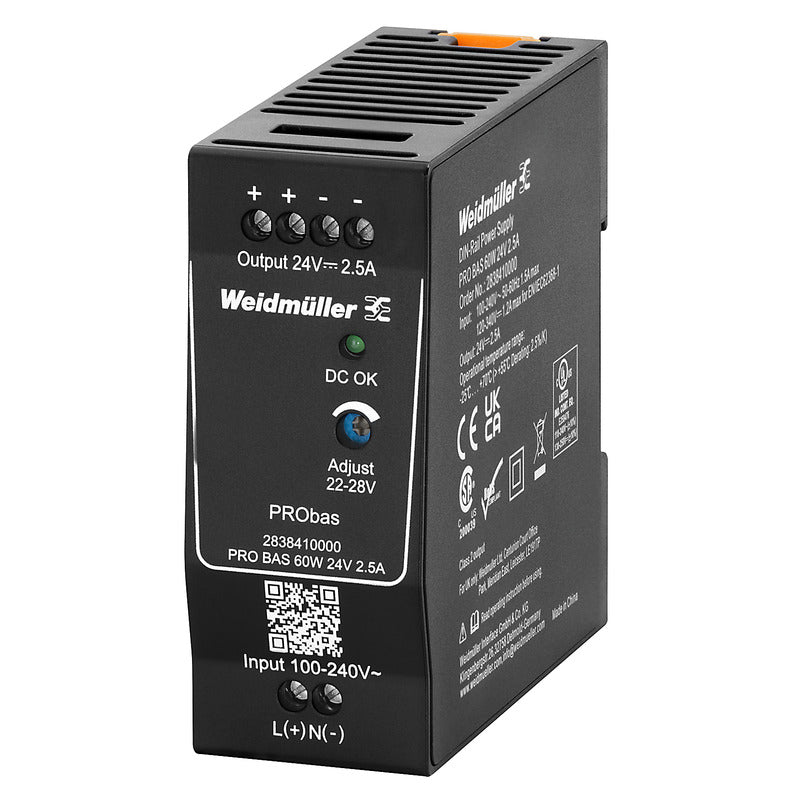

PRObas Switch-Mode Power Supply 60W 24V 2.5A

The Weidmüller PRO BAS 60W 24V 2.5A is a compact single-phase DIN rail switch-mode power supply for small 24 V DC control loads. PRO BAS is the basic tier of the range, with no power boost or communications, so it is the sensible pick for feeding a handful of sensors, relays or a small PLC in a tight enclosure at 36 mm wide.

• Output: 24 V DC, 2.5 A
• Continuous power: 60 W
• Input: 85-264 V AC single phase, or 110-370 V DC
• Efficiency: 90 % at 230 V AC
• Connection: screw terminals, horizontal TS 35 DIN rail mounting
• Operating temperature: -25 °C to 70 °C with derating
• Protection: short-circuit and over-temperature protection, parallel connection of up to 3 units
• Approvals: UL E258476, RoHS, SELV to IEC 61010-1
• Dimensions: 36 x 90 x 85 mm (W x H x D)
