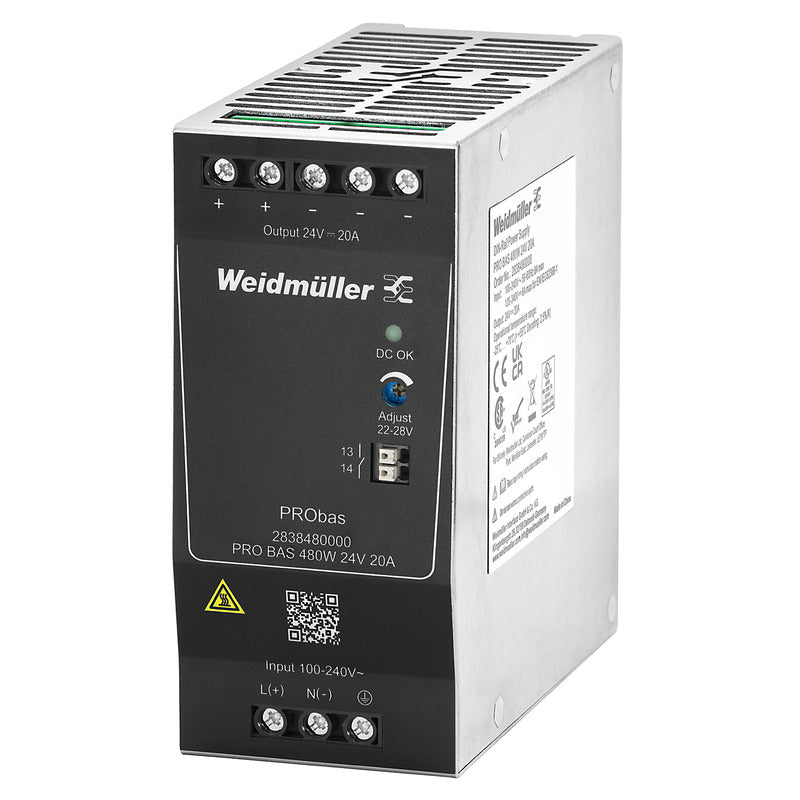

PRObas Switch-Mode Power Supply 480W 24V 20A

The Weidmüller PRO BAS 480W 24V 20A is a single-phase DIN rail switch-mode power supply rated 20 A on a 24 V DC rail. It covers straightforward panel duty at 480 W without the boost reserve of a PRO MAX or the communication modules of a PRO TOP, and at 59 mm wide it is the narrow option at this power level.

• Output: 24 V DC, 20 A nominal at 55 °C
• Continuous power: 480 W
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 95 % at 230 V AC, power factor 0.95 at nominal load
• Mains failure bridging: min. 20 ms
• Connection: screw terminals, horizontal TS 35 DIN rail with 50 mm clearance above and below
• Operating temperature: -25 °C to 70 °C with derating
• Approvals: cULus E258476, RoHS, protection class I with earth connection
• Dimensions: 59 x 130 x 125 mm (W x H x D)
