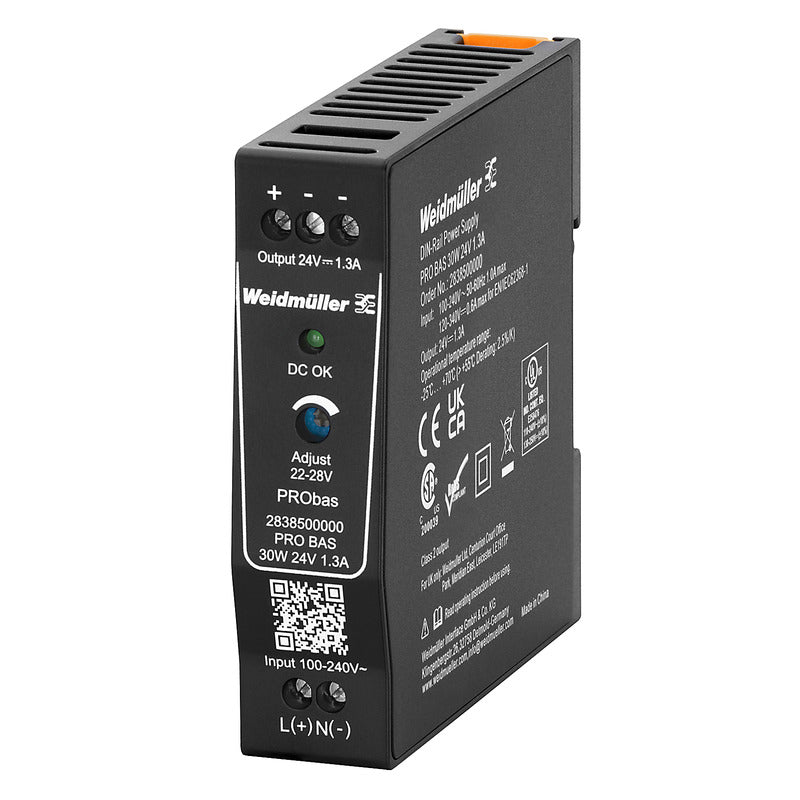

PRObas Switch-Mode Power Supply 30W 24V 1.3A

The Weidmüller PRO BAS 30W 24V 1.3A is a 23 mm wide DIN rail switch-mode power supply for small 24 V DC control loads. It is the entry point of the PRO BAS basic range, intended for junction boxes, remote enclosures and sub-panels feeding a handful of sensors or relays where a full-height supply will not fit.

• Output: 24 V DC, 1.3 A (30 W continuous), adjustable 22-28 V
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 89% at 230 V AC
• Connection: Screw terminals, 0.5-6 mm²
• Mounting: TS 35 DIN rail, horizontal, side-by-side mounting permitted
• Operating temperature: -25 °C to +70 °C, derating above 55 °C (0.8 A at 70 °C)
• Approvals: cULus (E258476), EN 61558-2-16, IEC 61010-1, RoHS
• Dimensions: 23 x 90 x 85 mm (W x H x D)
