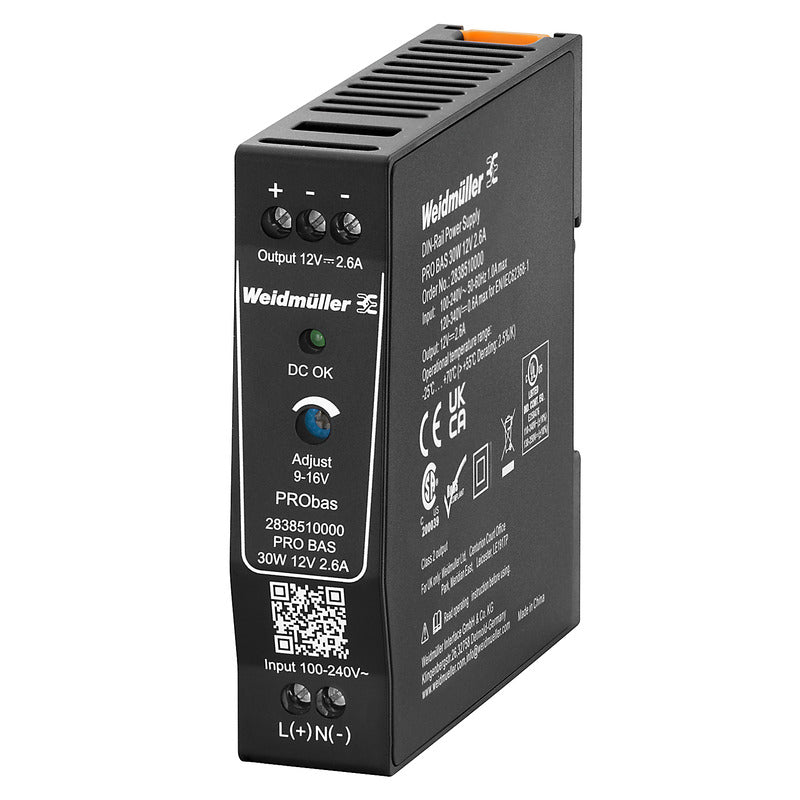

PRObas Switch-Mode Power Supply 30W 12V 2.6A

The Weidmüller PRO BAS 30W 12V 2.6A is a compact single-phase DIN rail switch-mode power supply delivering 12 V DC for sensors, relays, cameras and small telemetry equipment. It is the smallest of the basic PRO BAS units at 23 mm wide, and is chosen where a low-power 12 V rail is needed alongside the main 24 V supply without giving up much rail space.

• Output: 12 V DC, 2.6 A, 30 W; adjustable 9-16 V via potentiometer
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 89% at 230 V AC
• Residual ripple: ≤50 mVpp at full load
• Connection: Screw terminals, 0.5-6 mm²
• Mounting: Horizontal on TS 35 DIN rail
• Temperature: -25 °C to +70 °C; 2.6 A to 55 °C, 1.625 A at 70 °C
• Approvals: cULus E258476, RoHS; SELV/PELV per IEC 61010
• Dimensions: 23 x 90 x 85 mm (W x H x D), 163 g
