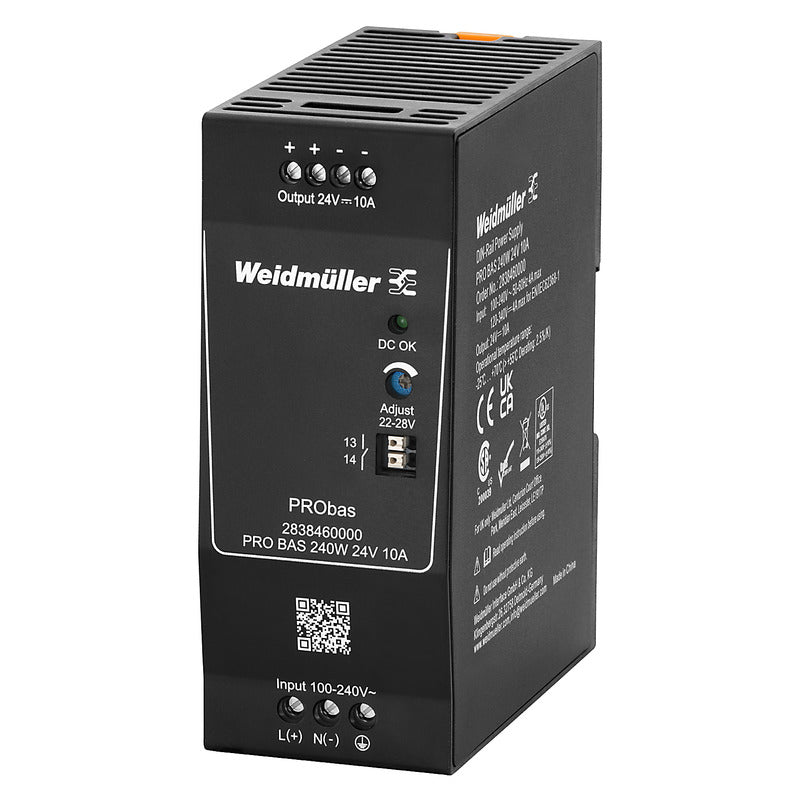

PRObas Switch-Mode Power Supply 240W 24V 10A

The Weidmüller PRO BAS 240W 24V 10A is a single-phase switch-mode power supply for TS 35 DIN rail, feeding a 24 V DC control circuit at up to 10 A. PRO BAS is the basic family, without the power boost or status contact of PROmax and PRO TOP, so it is the economical pick for steady electronic and resistive loads where no peak reserve or diagnostics are required.

• Output: 24 V DC, 10 A at 55 °C (6.25 A at 70 °C), adjustable 22-28 V
• Continuous power: 240 W
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 94 % at 230 V AC
• Power factor: 0.95 at 230 V AC
• Mains buffering: ≥ 25 ms
• Connection: Screw terminals, 3-pole input (L/N/PE), 4-pole output
• Operating temperature: -25 °C to +70 °C, IP20
• Dimensions: 52 x 130 x 100 mm (W x H x D), 693 g
