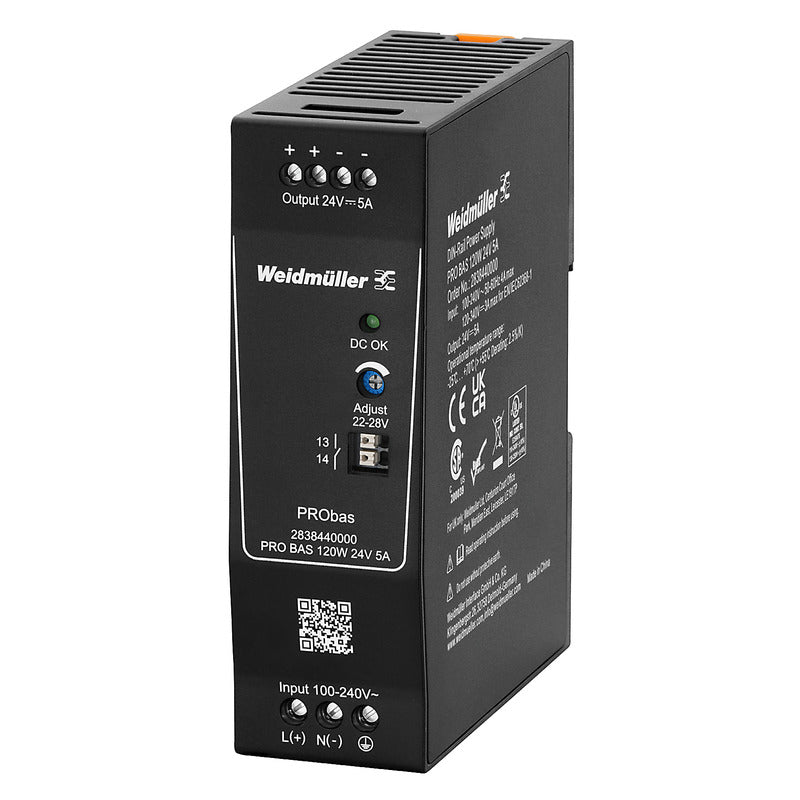

PRObas Switch-Mode Power Supply 120W 24V 5A

The Weidmüller PRO BAS 120W 24V 5A is a single-phase DIN rail switch-mode power supply for 24 V DC control circuits in general machine and building panels. PRO BAS is the basic tier of the range, with a plastic protective-insulation housing and a 100 mm depth that suits shallow enclosures, and it is the sensible pick for steady resistive and electronic loads that do not need the overload reserve of PRO MAX or the communications of PRO TOP.

• Output: 24 V DC, 5 A, 120 W; adjustable via potentiometer
• Input: 85-264 V AC single phase, 45-65 Hz, or 110-370 V DC
• Efficiency: 90% at 230 V AC
• Mains buffering: ≥80 ms at 230 V AC
• Connection: Screw terminals
• Mounting: Horizontal on TS 35 DIN rail
• Temperature: -25 °C to +70 °C; 5 A to 55 °C, 3.125 A at 70 °C
• Approvals: cULus E258476, RoHS, IP20
• Dimensions: 40 x 130 x 100 mm (W x H x D), 490 g
