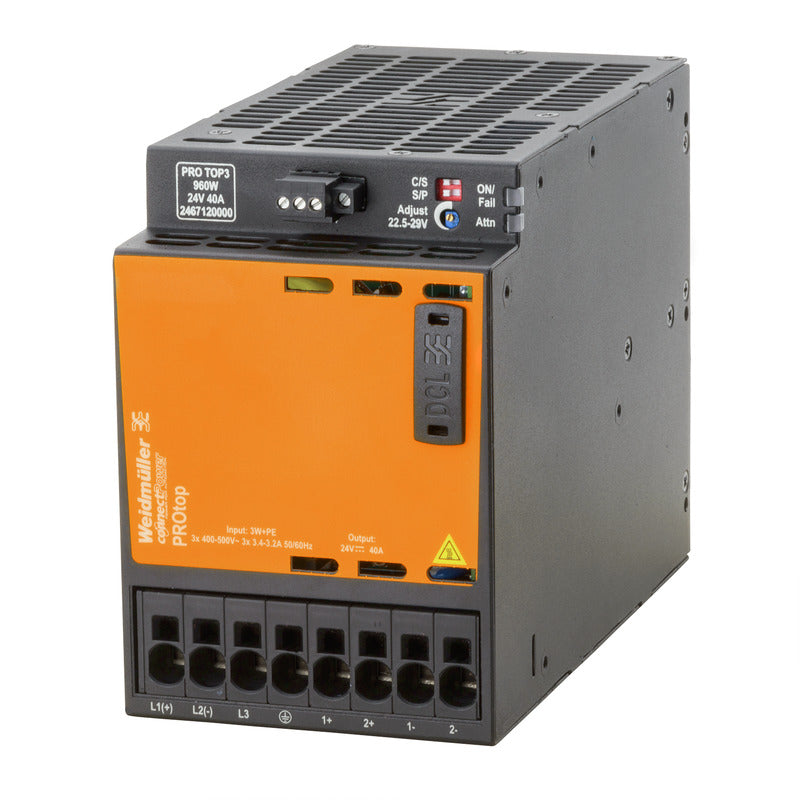

PRO TOP3 960W 24V 40A Switch-Mode Power Supply Unit with Comms Port, Three Phase

The Weidmüller PRO TOP3 960W 24V 40A is a three-phase DIN rail switch-mode power supply for 24 V DC distribution in larger machine and process panels. Running from a 3 x 400 V AC supply keeps the load balanced across the incomer, and the PRO TOP status contact and plug-in module slot suit installations where the supply itself has to be monitored alongside the plant.

• Output: 24 V DC ±1%, 40 A (960 W continuous)
• Peak load: 150% for 5 s; 400% of rated current for 15 ms
• Input: 3 x 320 to 3 x 575 V AC three phase, 45-65 Hz; also 2 x 360 to 2 x 575 V AC two phase, or 450-800 V DC
• Efficiency: 95.3%
• Signalling: Floating status contact, green/red status LEDs, slot for CANopen, IO-Link or display module
• Connection: PUSH IN, input, output and signals
• Mounting: TS 35 DIN rail, horizontal
• Operating temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 89 x 130 x 175 mm (W x H x D)
