PRO TOP3 480W 48V 10A THREE PHASE SWITCH-MODE POWER SUPPLY UNIT

Standards & Conformities

Documents

Full Description

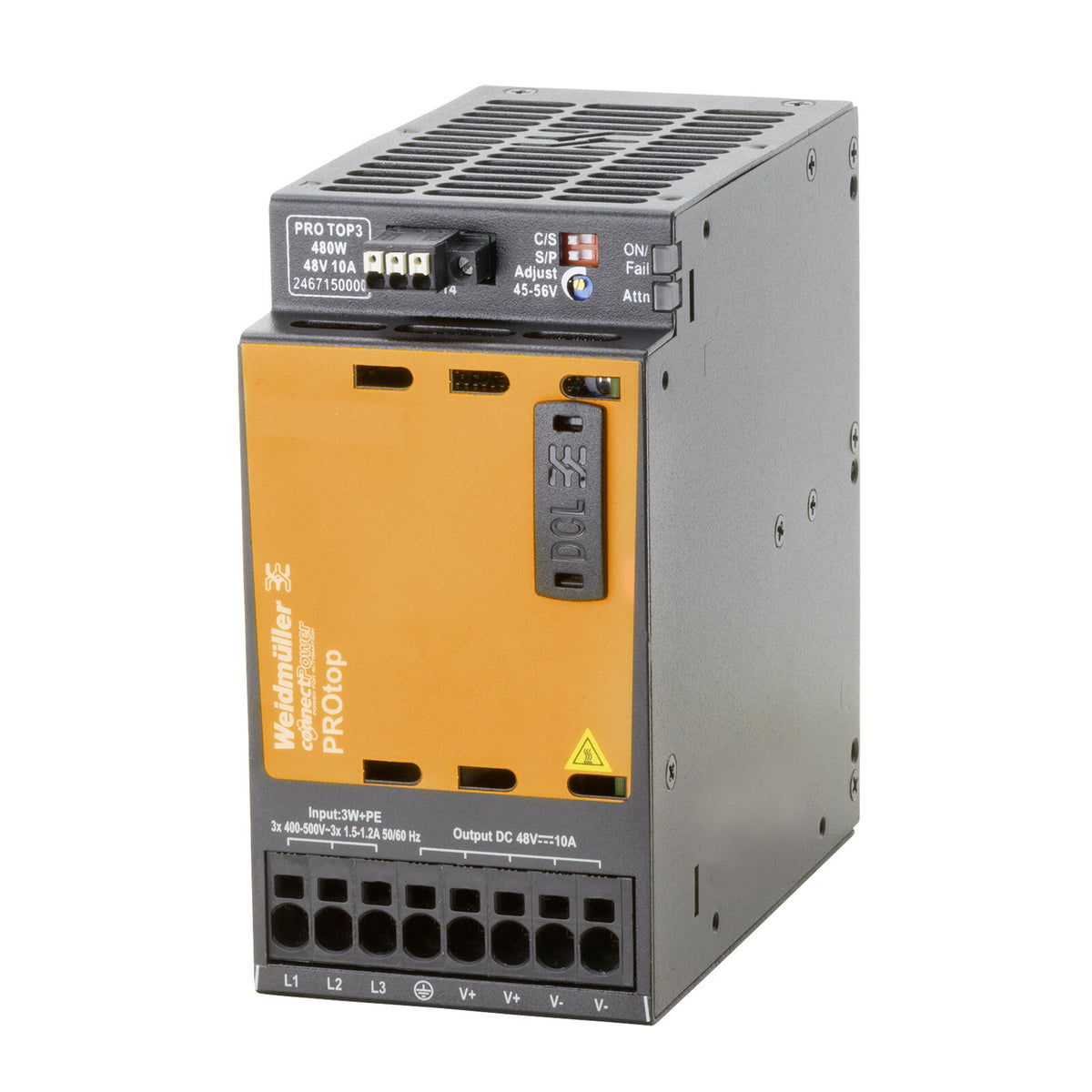

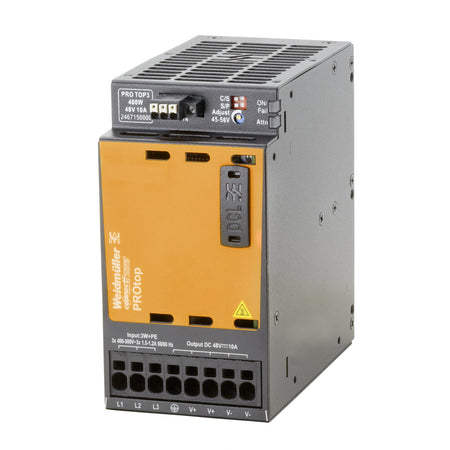

Weidmüller PRO TOP3 three-phase switch-mode power supply delivering 480 W at 48 V DC, 94 % efficient. Requires a 3 x 400 to 3 x 500 V AC supply and will not run from single-phase. Output trims across 45 to 56 V.

• Input: 3 x 400…3 x 500 V AC three-phase, wide-range input
• Output voltage: 48 V DC ± 1 %, adjustable 45–56 V

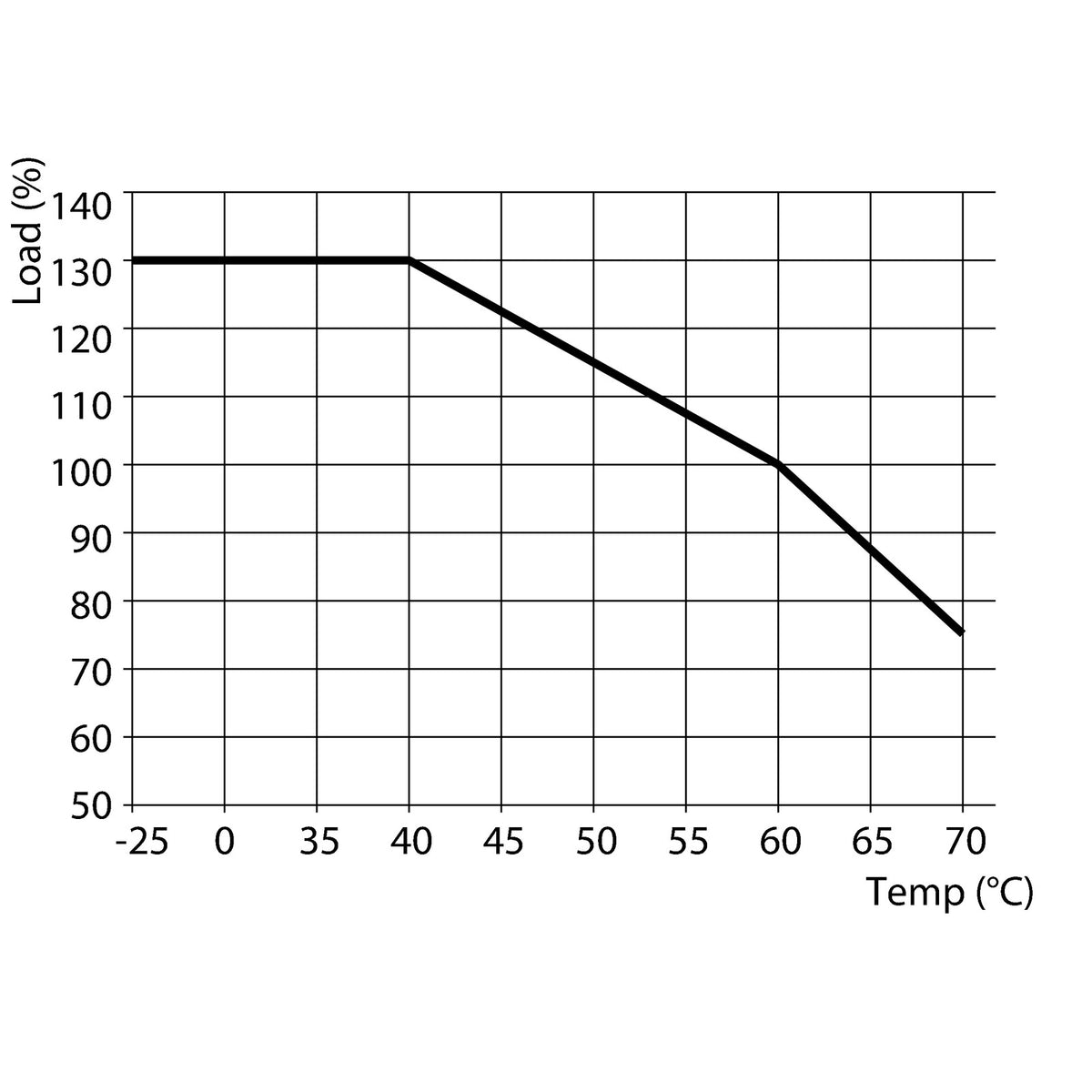

• Output current: 10 A @ 60 °C
• Output power: 480 W
• Efficiency: 94 %
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 68 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
