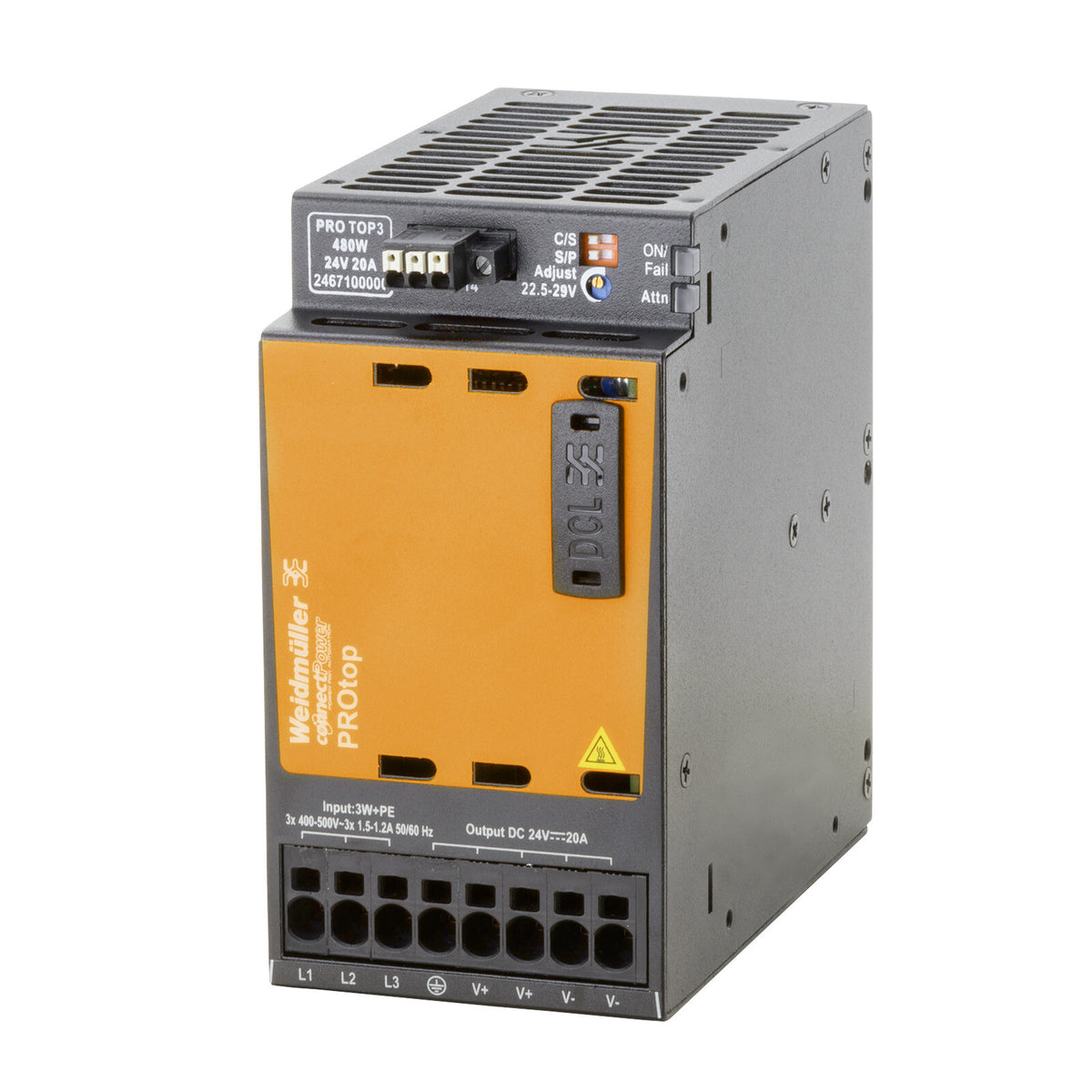

PRO TOP3 480W 24V 20A

Standards & Conformities

Documents

Full Description

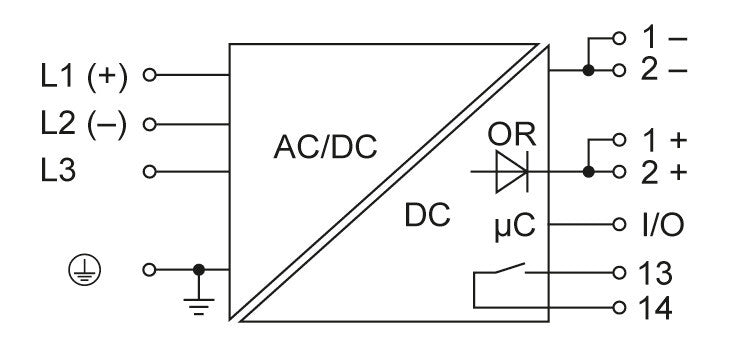

Weidmüller PRO TOP3 three-phase switch-mode power supply delivering 480 W at 24 V DC, at 94 % efficiency — the highest in the PRO TOP3 24 V line. Requires a 3 x 400 to 3 x 500 V AC supply and will not run from single-phase.

• Input: 3 x 400…3 x 500 V AC three-phase, wide-range input
• Output voltage: 24 V DC ± 1 %

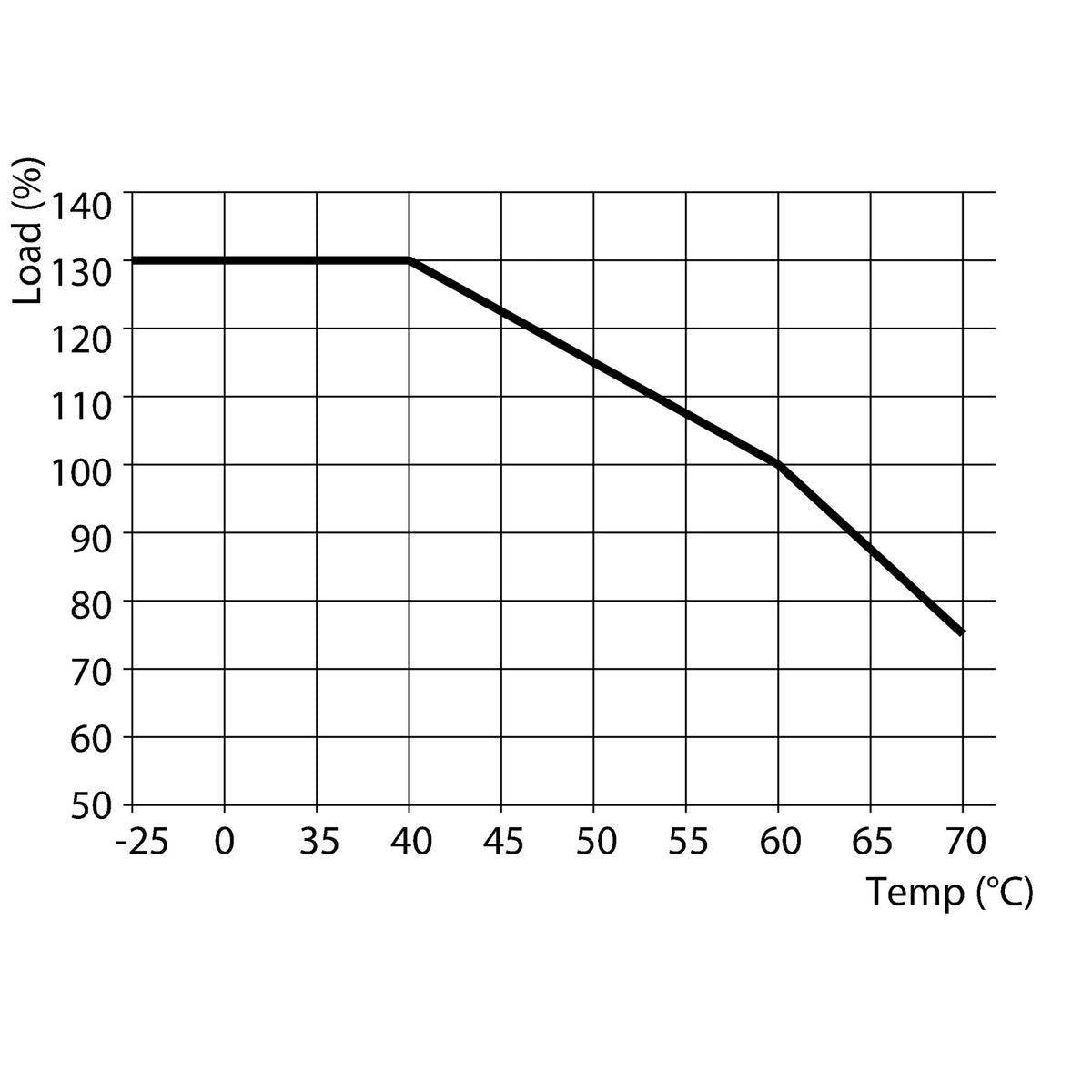

• Output current: 20 A @ 60 °C
• Output power: 480 W
• Efficiency: 94 %
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 68 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
