PRO TOP1 960W 48V 20A Switch-Mode Power Supply Unit with Comms Port

The Weidmüller PRO TOP1 960W 48V 20A is a single-phase DIN rail switch-mode power supply providing a 48 V DC, 20 A bus for drives, actuators and distributed I/O. It is the communicating variant of the 960 W class, accepting plug-in CANopen, IO-Link or display modules so load and status data can be read remotely, which suits panels where the supply has to report into the control system rather than just run.

• Output: 48 V DC ±1%, 20 A, 960 W continuous
• Peak load: 150% of rated current for 5 s; 400% for 15 ms
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-410 V DC
• Efficiency: 94%
• Power factor: >0.9
• Communication: Plug-in modules available (CANopen, IO-Link, display)
• Connection: PUSH IN, 0.75-16 mm² flexible conductors
• Mounting: Horizontal on TS 35 DIN rail

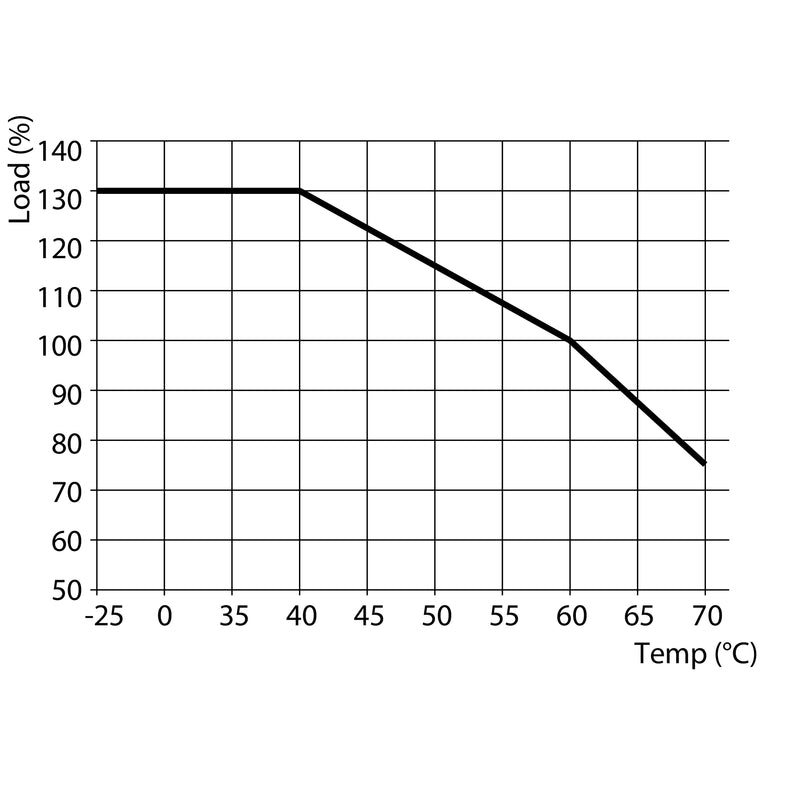

• Temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 124 x 130 x 125 mm (W x H x D), 3.0 kg
