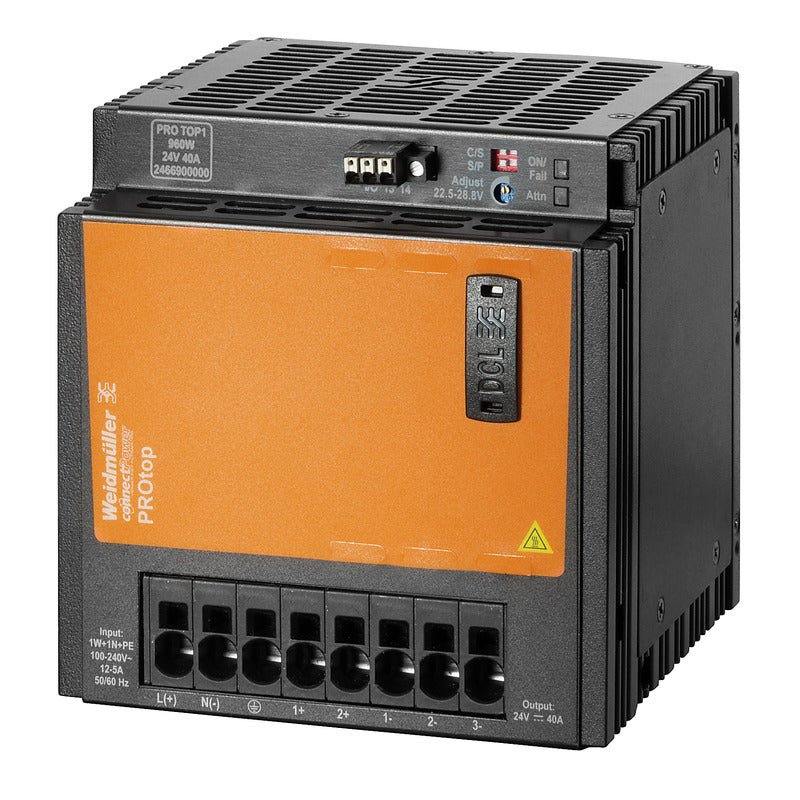

PRO TOP1 960W 24V 40A Switch-Mode Power Supply Unit with Comms Port

The Weidmüller PRO TOP1 960W 24V 40A is a single-phase DIN rail switch-mode power supply delivering 40 A on a 24 V DC rail. PRO TOP sits at the top of the range and accepts plug-on communication modules, so unlike a PRO MAX or PRO ECO the supply can be monitored and its output voltage adjusted from the control system.

• Output: 24 V DC ± 1 %, 40 A at 60 °C, adjustable 22.5-28.8 V
• Continuous power: 960 W
• Power boost: 150 % for 5 s, 400 % for 15 ms
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-410 V DC
• Efficiency: 94 %, power factor > 0.9

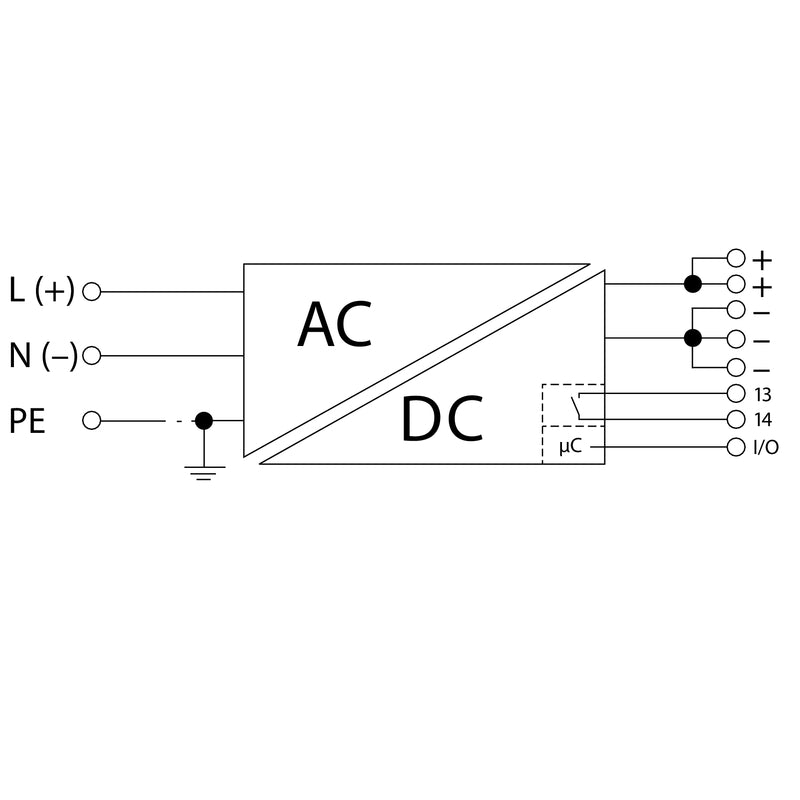

• Signalling: floating status relay contact, optional CANopen, IO-Link or 7-segment display communication modules
• Connection: PUSH IN terminals, horizontal TS 35 DIN rail with 50 mm clearance above and below
• Operating temperature: -25 °C to 70 °C, derating 2.5 % per °C above 60 °C
• Dimensions: 124 x 130 x 125 mm (W x H x D)
