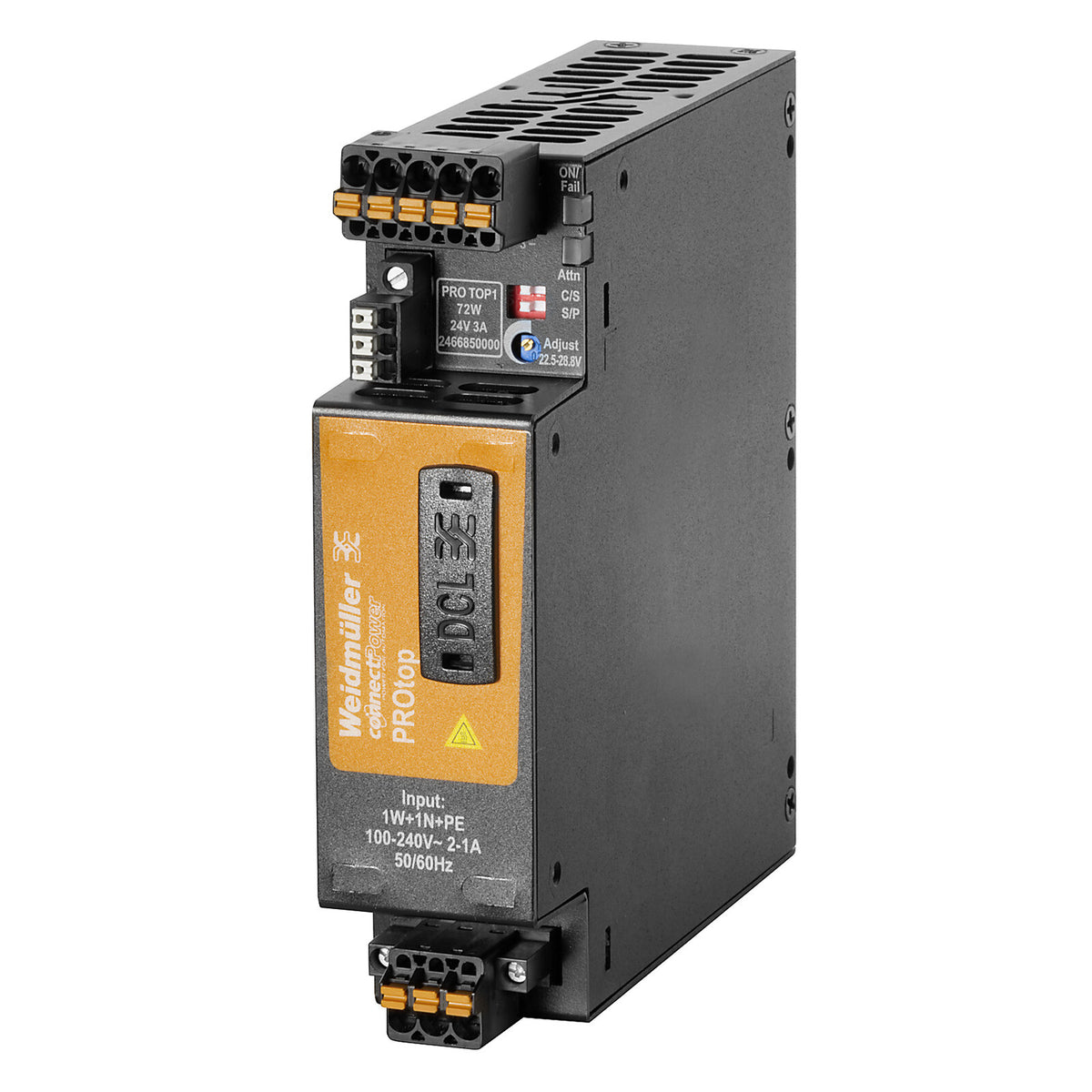

PRO TOP1 72W 24V 3A Switch-Mode Power Supply Unit with Comms Port

Weidmüller PRO TOP1 single-phase switch-mode power supply delivering 72 W at 24 V DC. The PRO TOP range adds signalling to the basic supply function — a floating status relay and two-colour LED tell you the output is healthy without opening the cabinet. Wide-range input accepts AC or DC.

• Input: 85…277 V AC single-phase, or 80…410 V DC
• Output voltage: 24 V DC ± 1 %

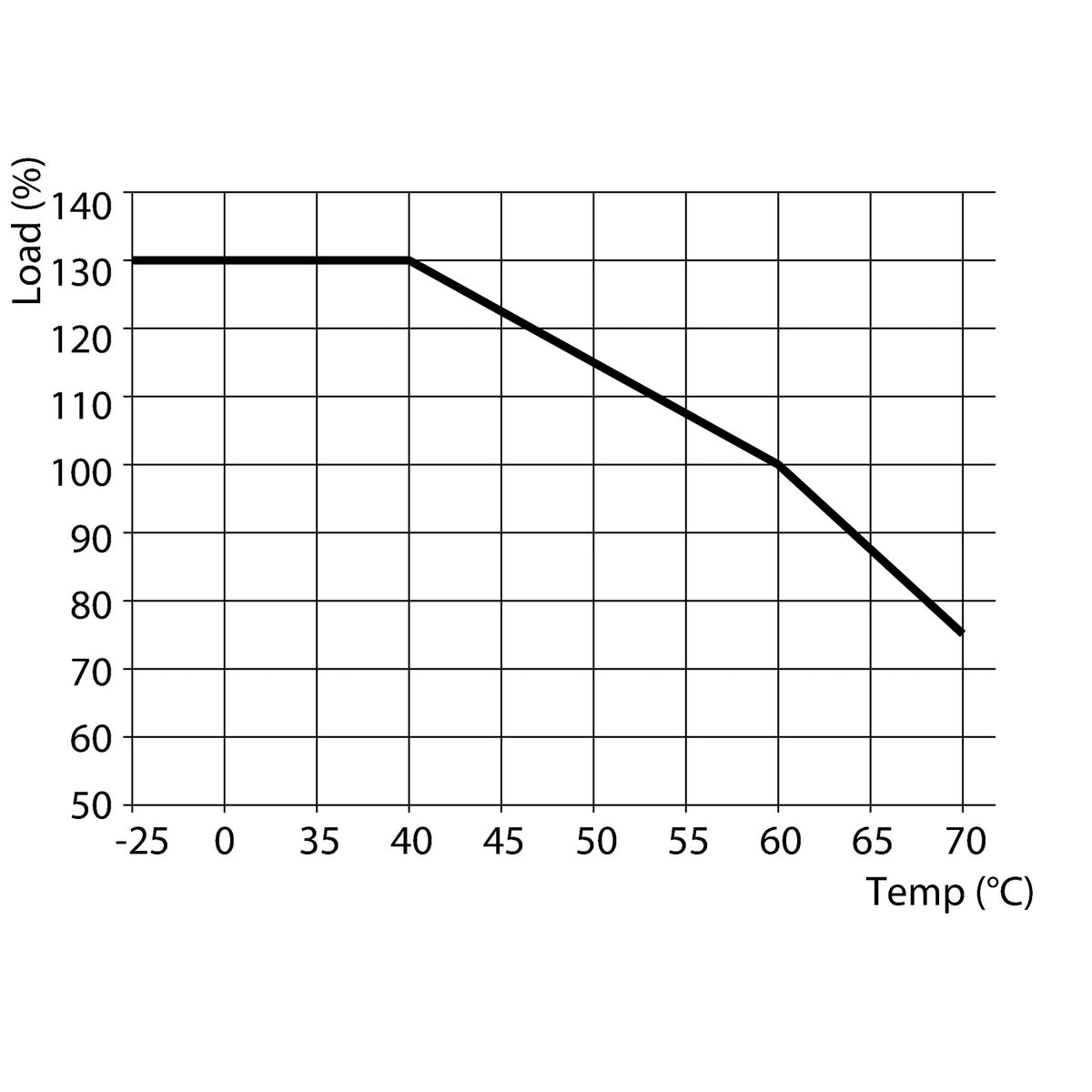

• Output current: 3 A @ 60 °C
• Output power: 72 W
• Efficiency: 89 %

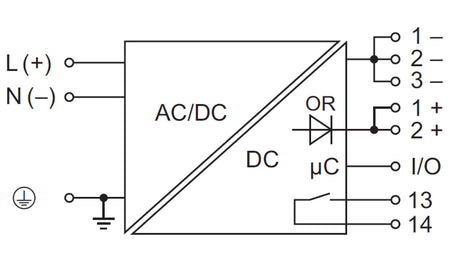

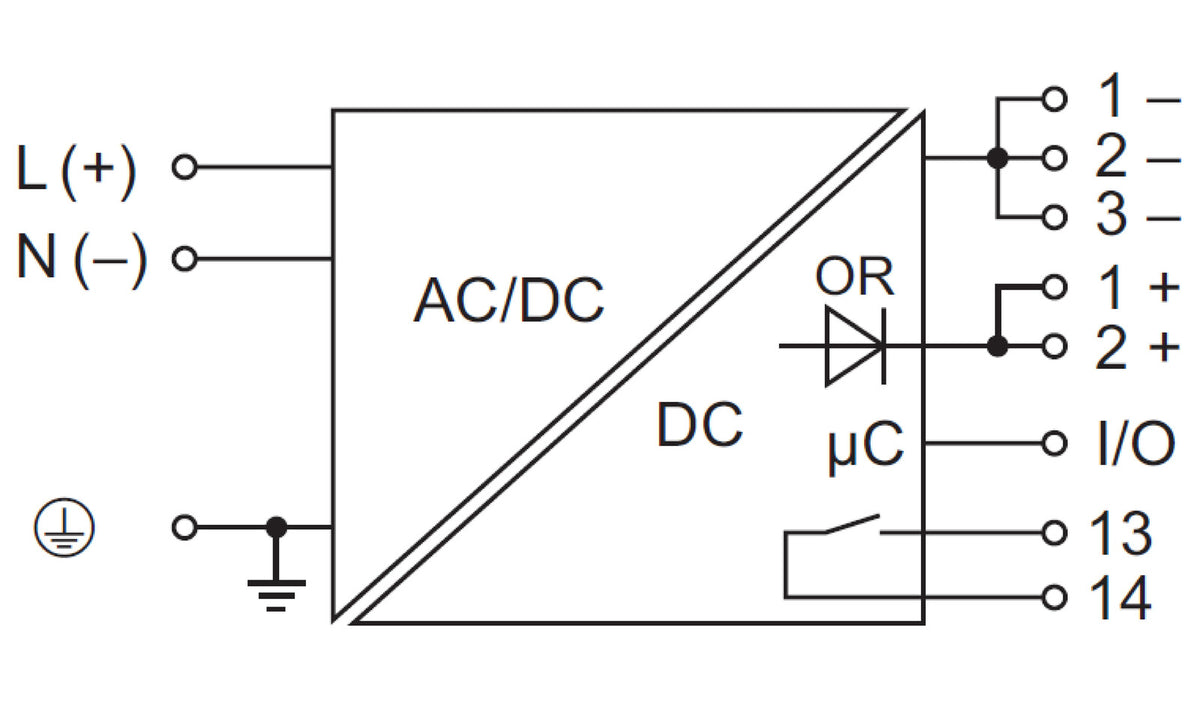

• Signalling: green/red LED, floating status relay contact, output voltage OK (30 V DC / 1 A)
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 35 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
