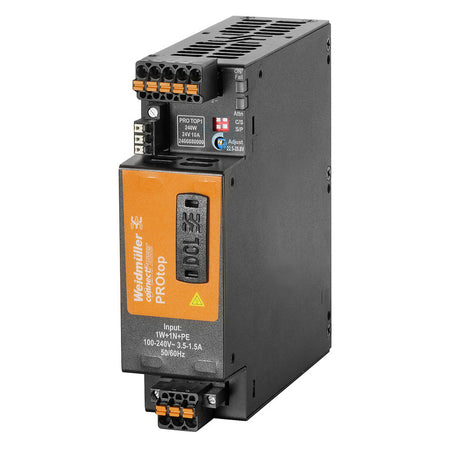

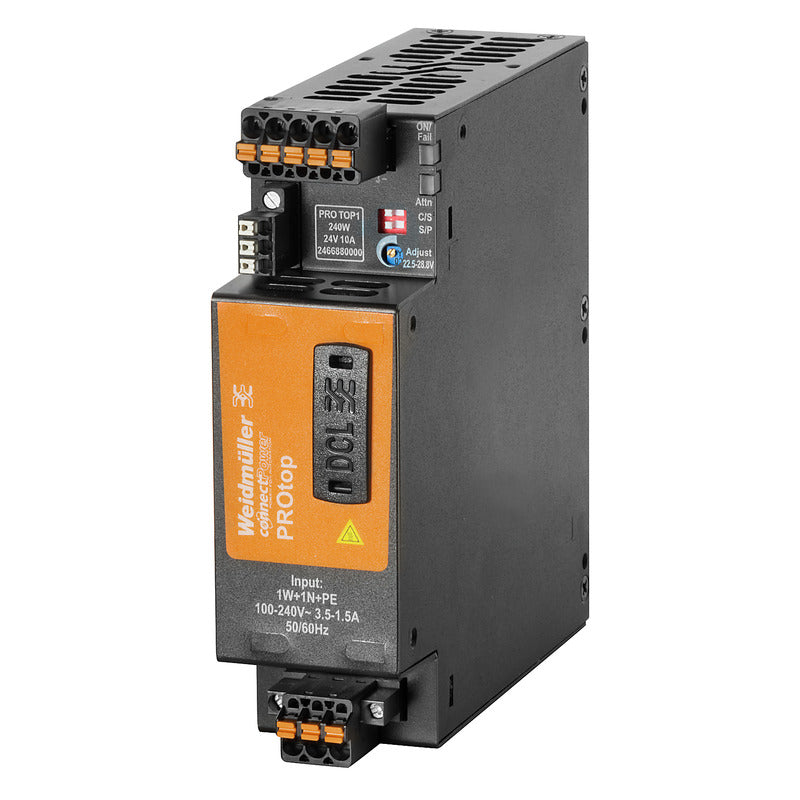

PRO TOP1 240W 24V 10A Switch-Mode Power Supply Unit with Comms Port

Weidmüller PRO TOP1 single-phase switch-mode power supply delivering 240 W at 24 V DC. Output is adjustable from 22.5 to 28.8 V by potentiometer or via a PRO COM communication module, and the LED gives an advance warning by flashing green once load exceeds 90 % — useful for spotting a rail that has crept up to its limit before it trips.

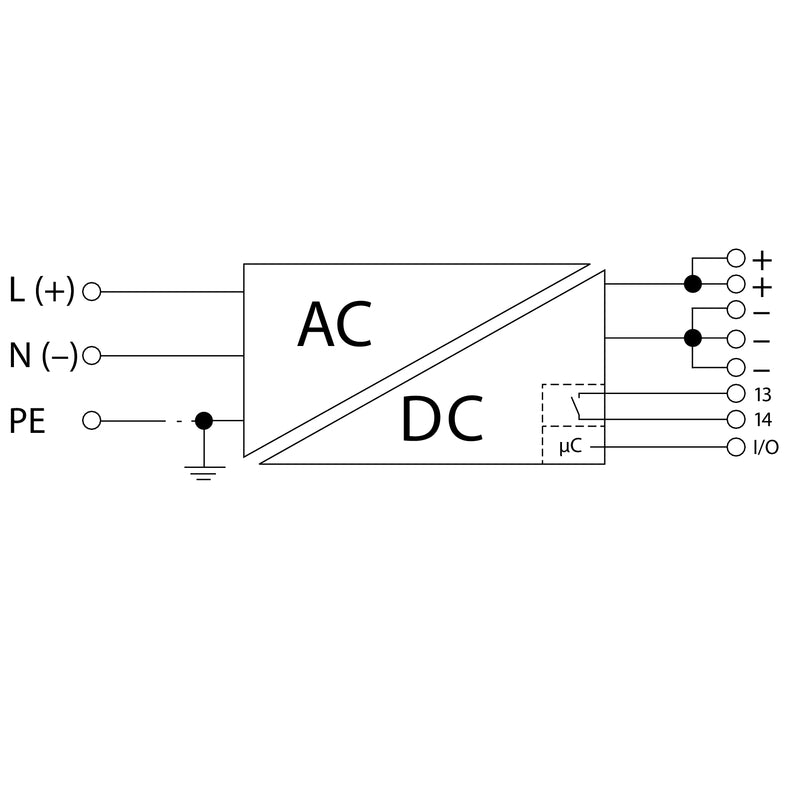

• Input: 110…240 V AC single-phase, 45–65 Hz, or 120…340 V DC
• Output voltage: 24 V DC nominal, adjustable 22.5–28.8 V by potentiometer or communication module
• Output current: 10 A @ 60 °C
• Output power: 240 W
• Efficiency: 92 %
• Signalling: floating status relay (max 30 V DC / 1 A), green LED, flashing green advance warning at load >90 %
• Communication: accepts external PRO COM modules
• Protection: internal short-circuit protection

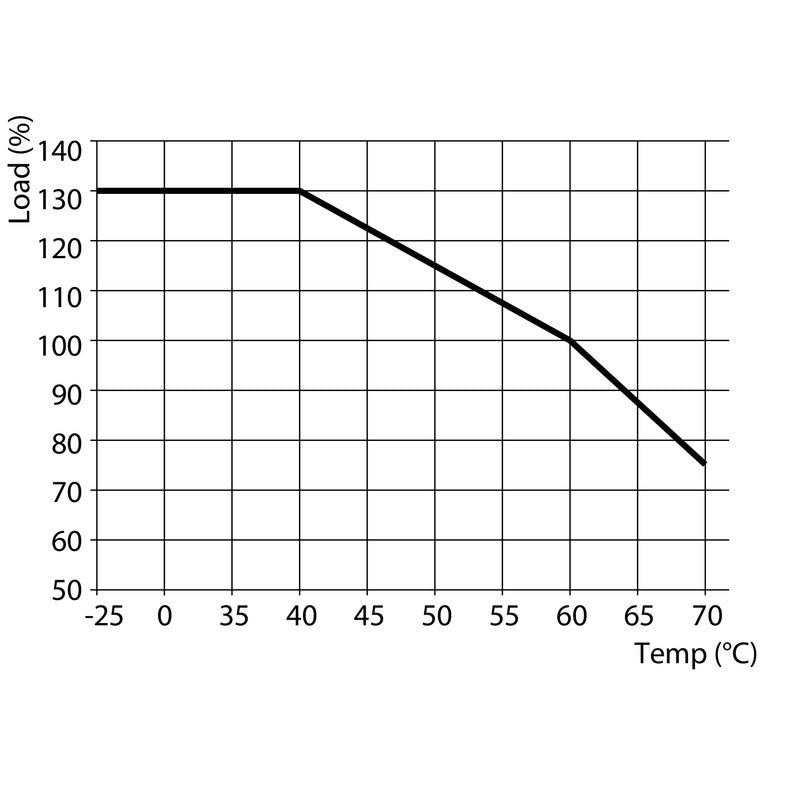

• Operating temperature: −25 °C to +70 °C (derating above 60 °C)
• Dimensions (W x H x D): 39 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
