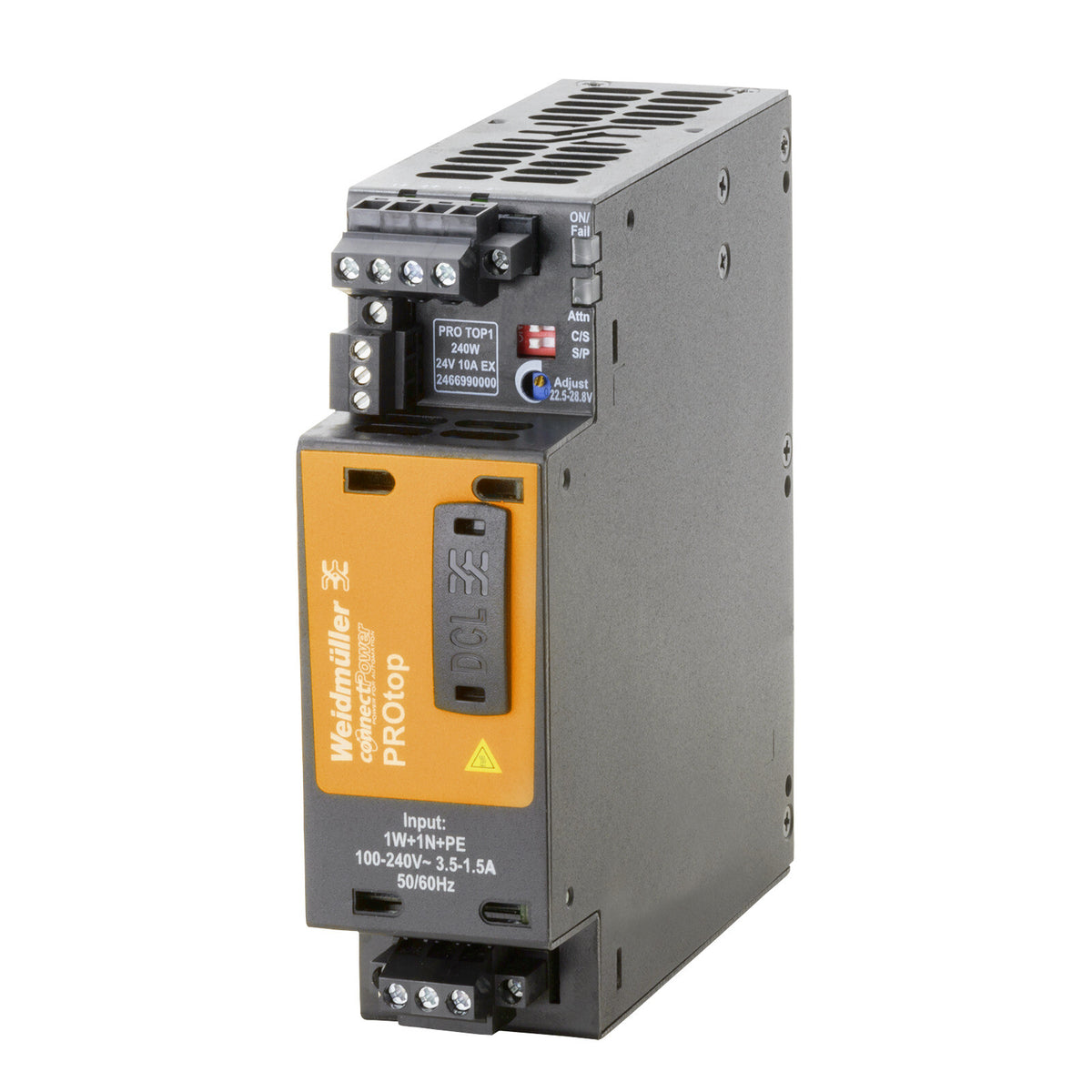

PRO TOP1 240W 24V 10A EX SWITCH-MODE POWER SUPPLY UNIT

Standards & Conformities

Documents

Full Description

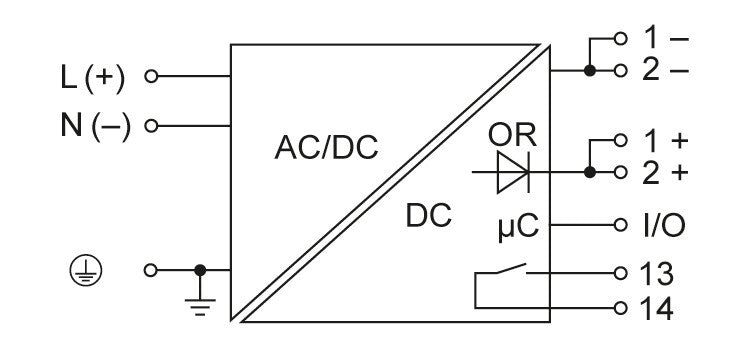

Weidmüller PRO TOP1 single-phase switch-mode power supply delivering 240 W at 24 V DC, in the EX variant certified for hazardous areas (cULus E258476, cULus EX E470829). Rated from −40 °C, with output adjustable by potentiometer or PRO COM communication module.

• Input: 85…277 V AC single-phase, or 80…410 V DC
• Output voltage: 24 V DC ± 1 %, adjustable by potentiometer or communication module
• Output current: 10 A
• Output power: 240 W
• Efficiency: 92 %
• Approvals: cULus E258476, cULus EX E470829

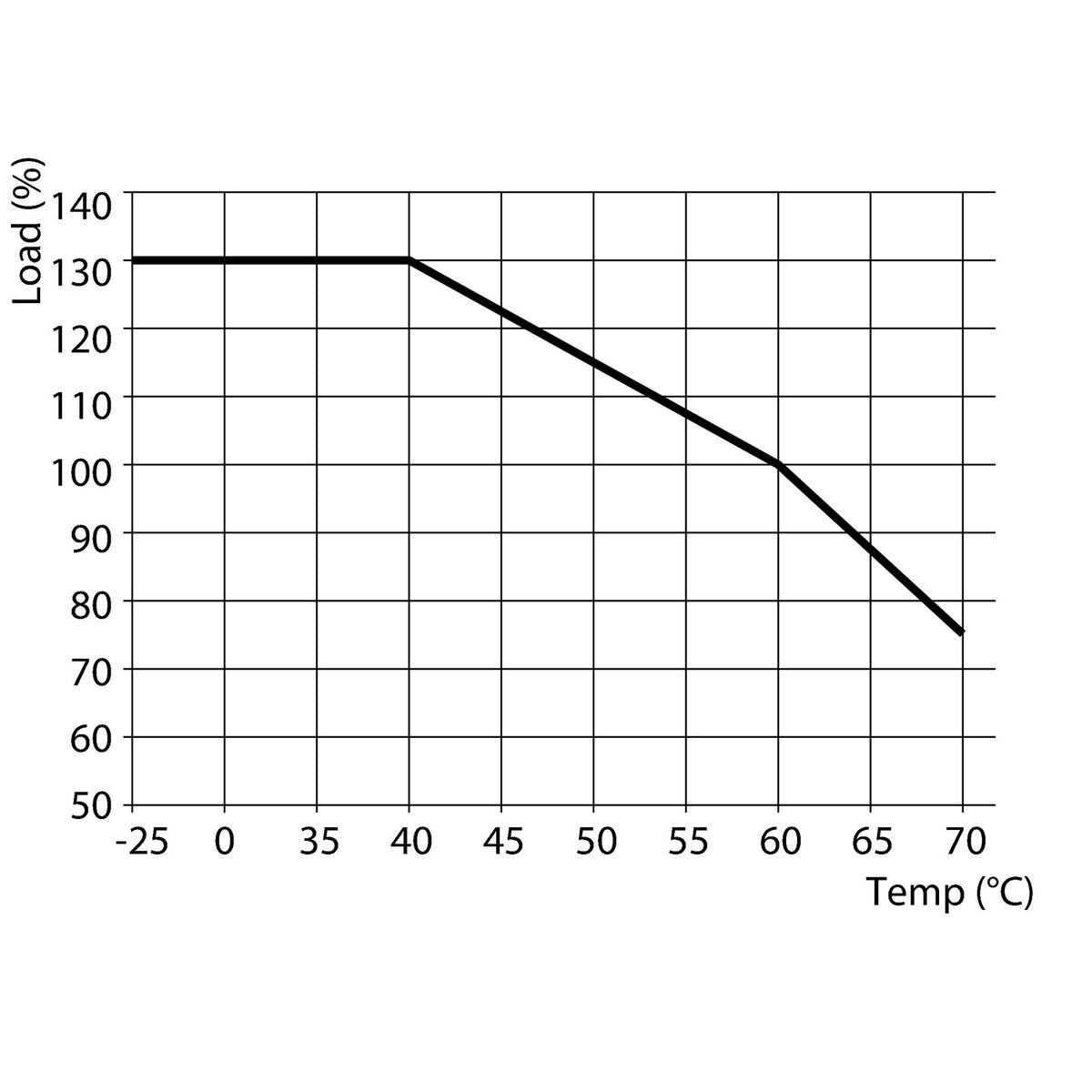

• Operating temperature: −40 °C to +70 °C
• Dimensions (W x H x D): 39 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
