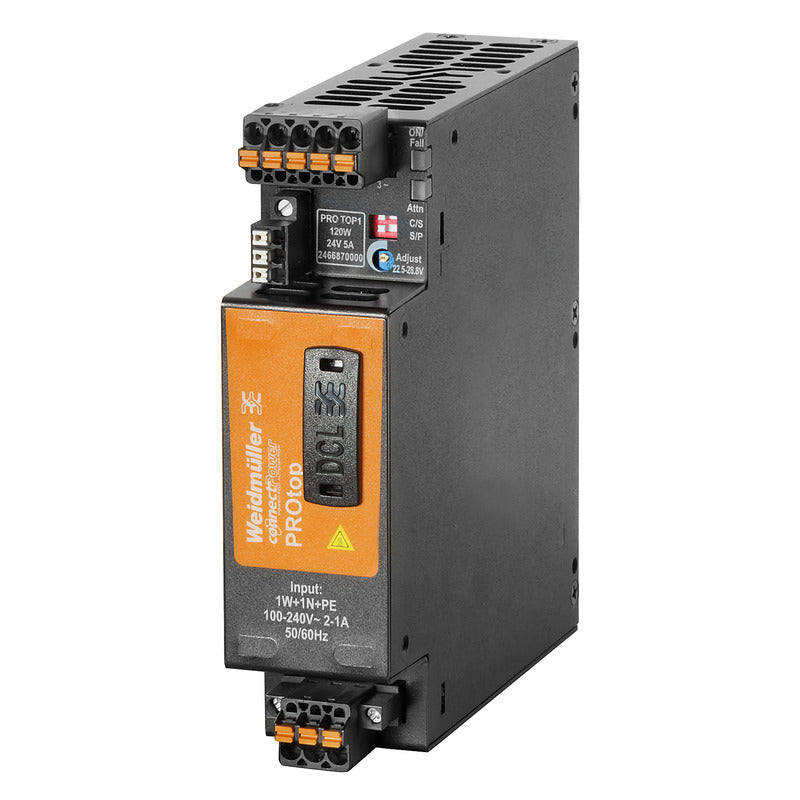

PRO TOP1 120W 24V 5A Switch-Mode Power Supply Unit with Comms Port

The Weidmüller PRO TOP1 120W 24V 5A is a 35 mm wide DIN rail switch-mode power supply supplying 24 V DC to control and instrumentation circuits. PRO TOP is the communicating tier of the range, taking a plug-in module so output voltage and diagnostics can be handled from the controller instead of a screwdriver, and its 600% 15 ms peak is sized to clear downstream circuit breakers on a fault.

• Output: 24 V DC ±1%, 5 A, 120 W continuous
• Peak load: 150% of rated current for 5 s; 600% for 15 ms
• Input: 85-277 V AC single phase, 45-65 Hz, or 48-410 V DC
• Efficiency: 91%
• Power factor: >0.85
• Adjustment: Output set by potentiometer or plug-in communication module
• Connection: PUSH IN with actuator
• Mounting: Horizontal on TS 35 DIN rail
• Temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 35 x 130 x 125 mm (W x H x D), 850 g
