PRO TOP1 120W 12V 10A Switch-Mode Power Supply Unit with Comms Port

The Weidmüller PRO TOP1 120W 12V 10A is a single-phase DIN rail switch-mode power supply with a 12 V DC output and a slot for plug-in communication modules. PRO TOP is the diagnostics-oriented family, carrying a floating status contact and accepting optional CANopen, IO-Link or display modules, which makes it the pick where supply health has to be reported back to the controller rather than just indicated by an LED.

• Output: 12 V DC ±1%, 10 A (120 W continuous)
• Peak load: 150% for 5 s; 400% of rated current for 15 ms
• Input: 85-277 V AC single phase, or 120-340 V DC
• Efficiency: 90%

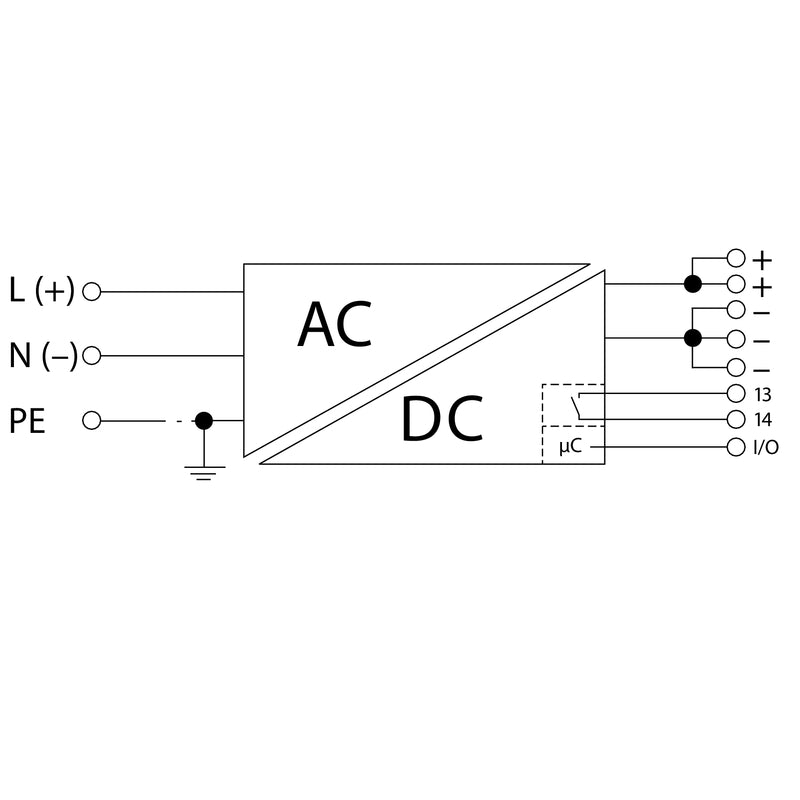

• Signalling: Floating status relay contact, green/red status LEDs, slot for CANopen, IO-Link or display module
• Connection: PUSH IN with actuator, input, output and signals
• Mounting: TS 35 DIN rail, horizontal

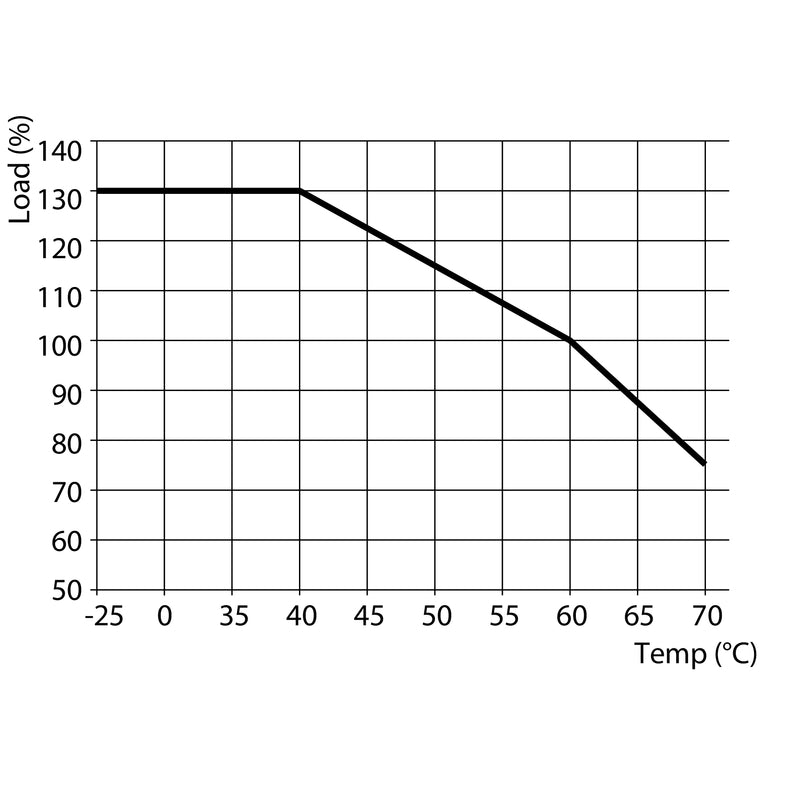

• Operating temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 35 x 130 x 125 mm (W x H x D)
