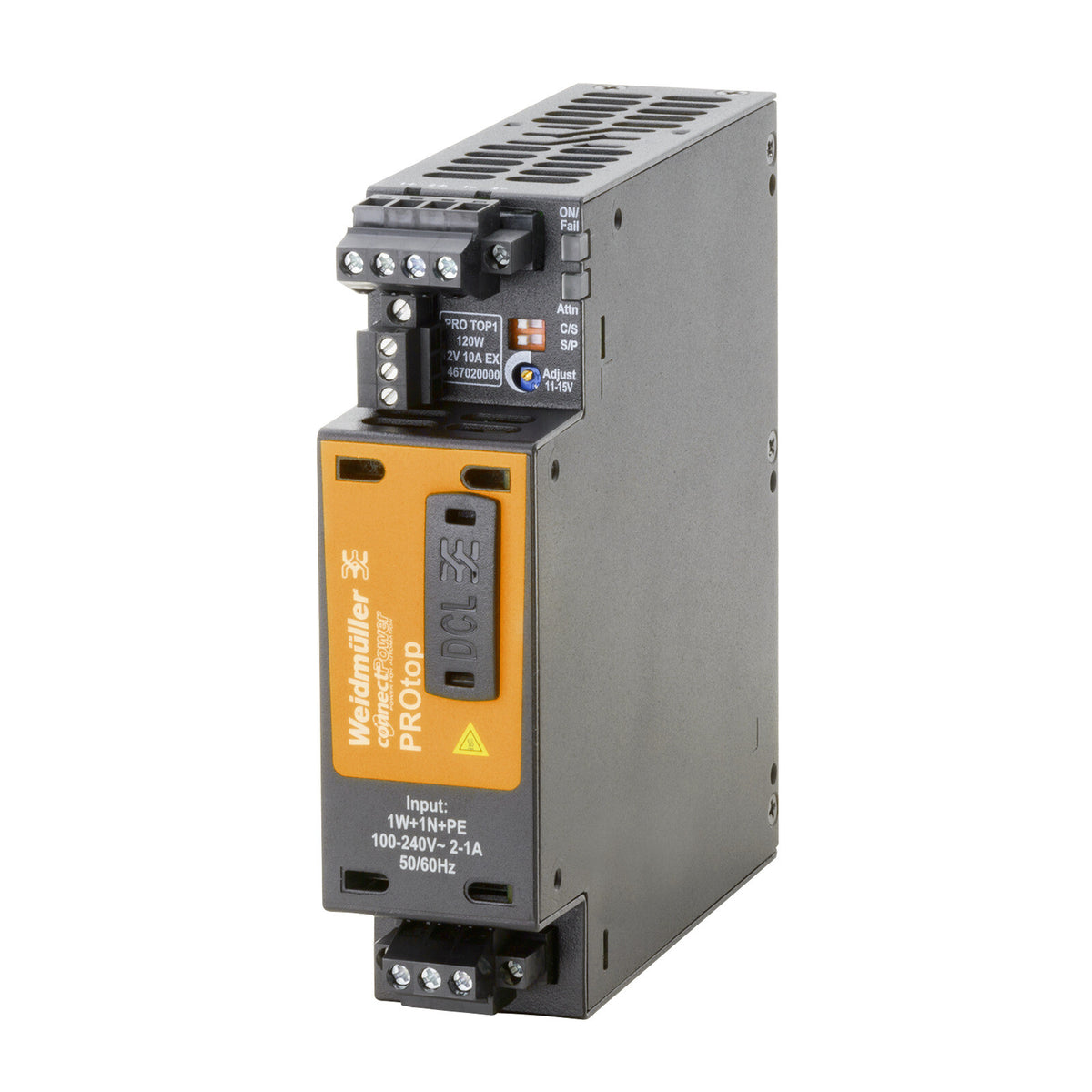

PRO TOP1 120W 12V 10A EX SWITCH-MODE POWER SUPPLY UNIT

Weidmüller PRO TOP1 single-phase switch-mode power supply delivering 120 W at 12 V DC, in the EX variant certified for hazardous areas (cULus E258476, cULus EX E470829). A 12 V rail rated for hazardous locations and down to −40 °C — typically radios, telemetry or instrumentation on remote sites.

• Input: 85…277 V AC single-phase, or 80…410 V DC
• Output voltage: 12 V DC ± 1 %
• Output current: 10 A
• Output power: 120 W
• Efficiency: approx. 90 %
• Approvals: cULus E258476, cULus EX E470829, RoHS (exemptions 6c, 7a, 7cI)

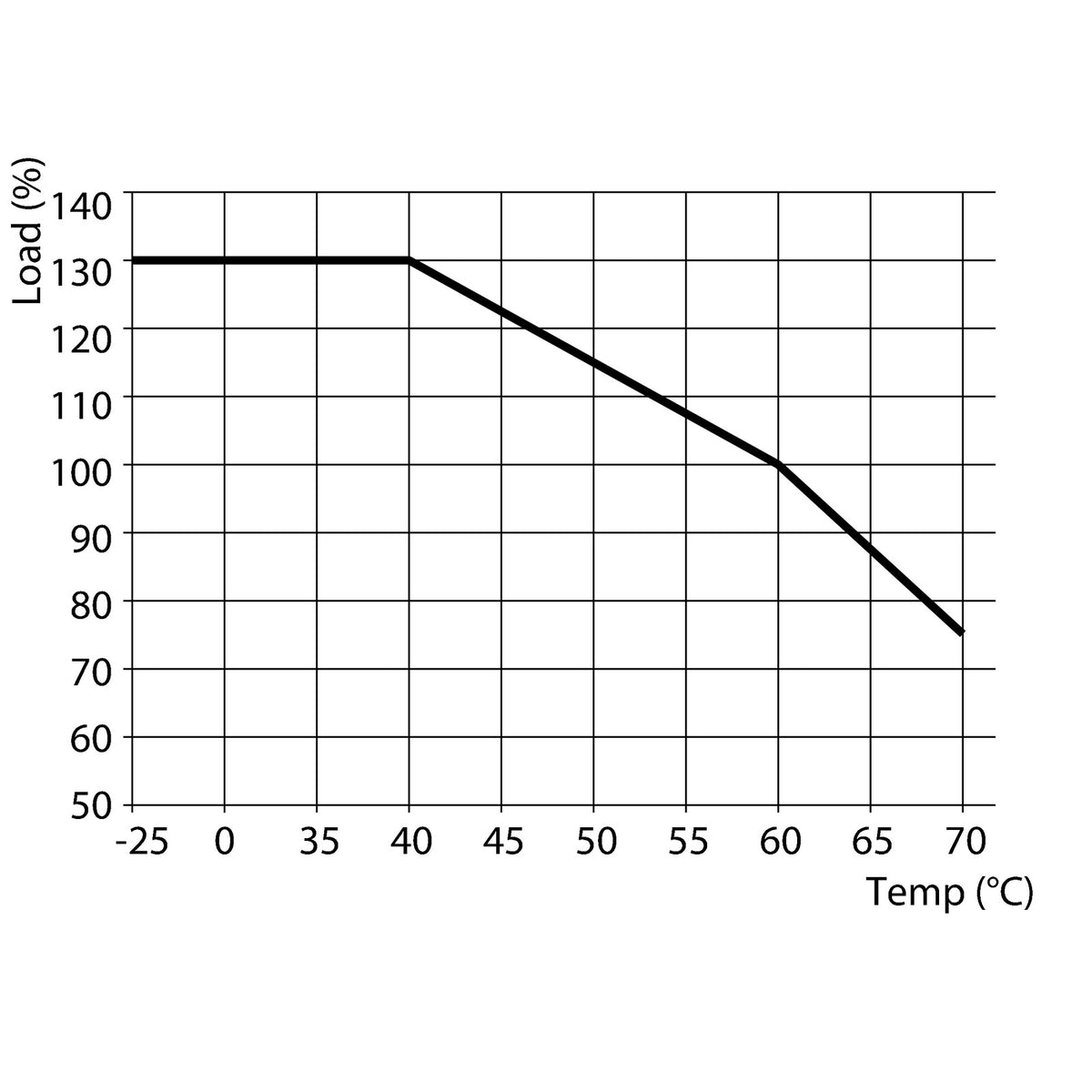

• Operating temperature: −40 °C to +70 °C
• Dimensions (W x H x D): 35 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
