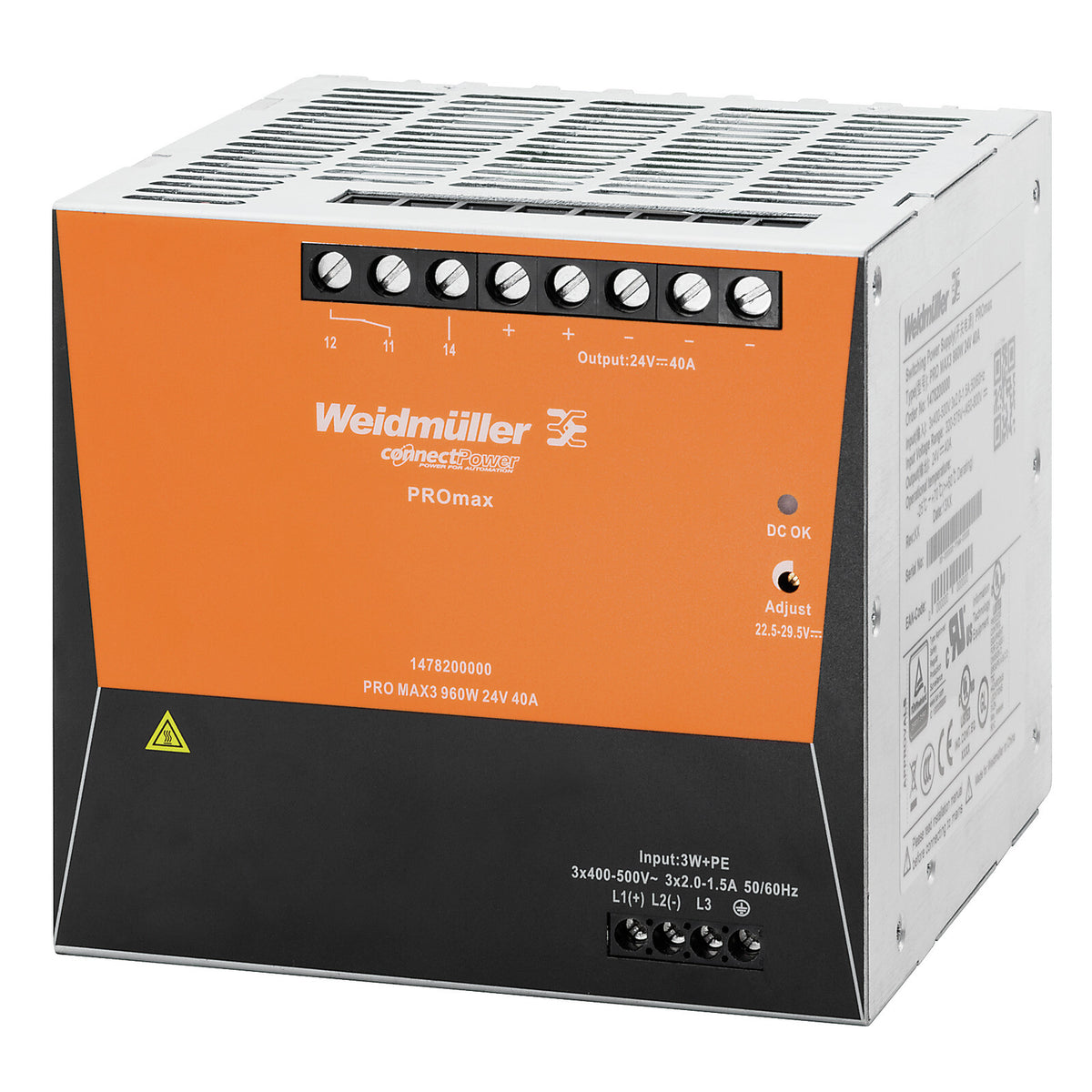

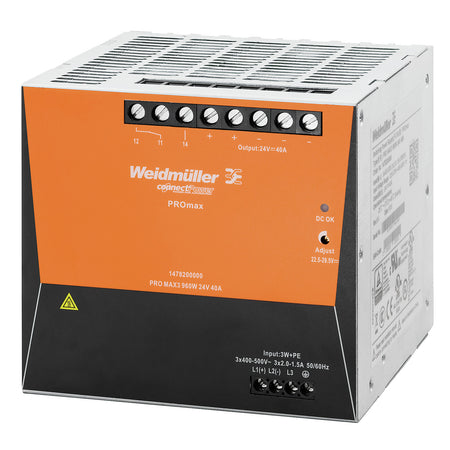

PRO MAX3 960W 24V 40A

Weidmüller PRO MAX3 three-phase switch-mode power supply delivering 960 W at 24 V DC — the largest output in the PRO MAX3 line-up. This is a three-phase unit requiring a 3 x 400 to 3 x 500 V AC supply. Specified for heavy control cabinets, large machine builds and plant-wide 24 V distribution.

• Input: 3 x 400…3 x 500 V AC three-phase, wide-range 3 x 320…3 x 575 V AC / 2 x 360…2 x 575 V AC
• Output voltage: 24 V DC ± 1 %, adjustable by potentiometer

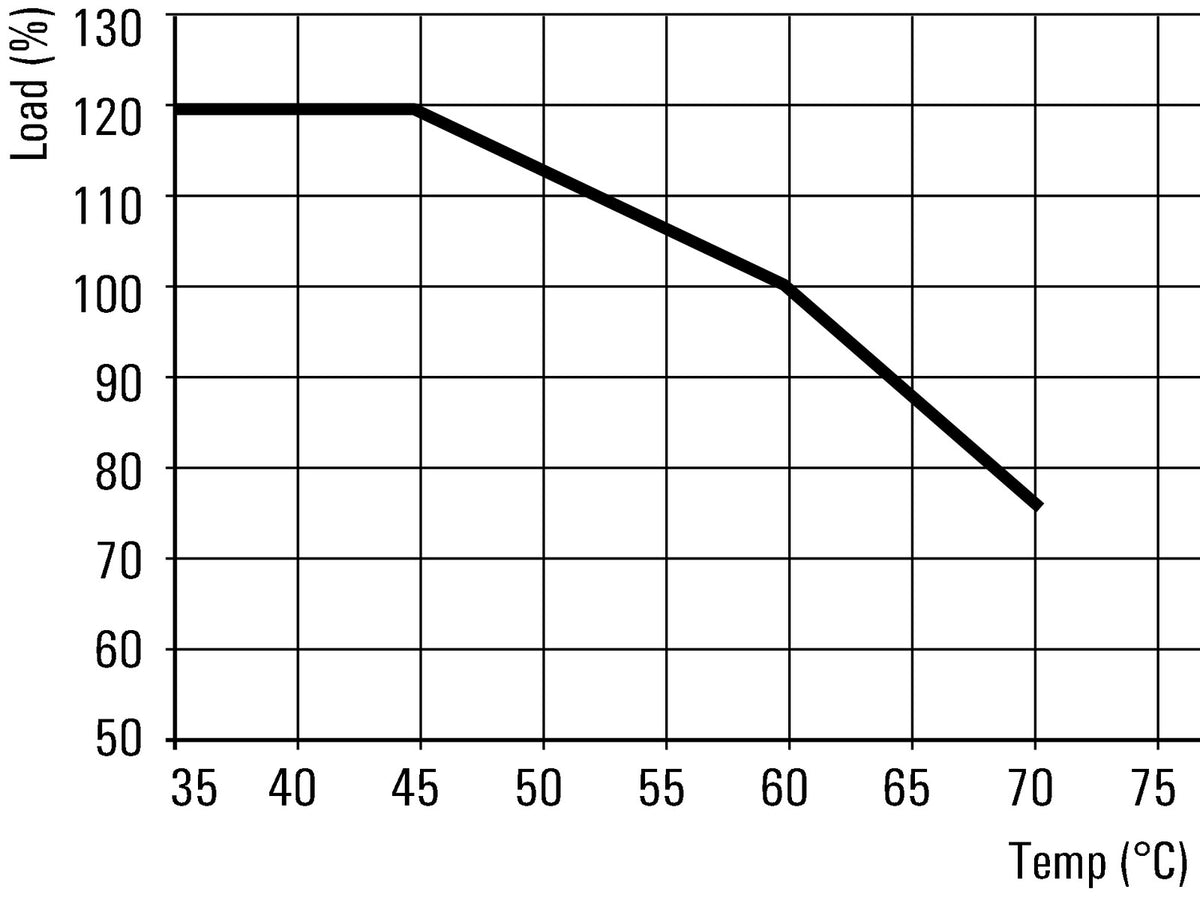

• Output current: 40 A @ 60 °C, up to 48 A @ 45 °C, 30 A @ 70 °C
• Output power: 960 W
• Efficiency: 93.5 %
• Operating temperature: −25 °C to +70 °C
• Storage temperature: −40 °C to +85 °C
• Dimensions (W x H x D): 140 x 130 x 150 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
