PRO MAX 70W 5V 14A

Specifications

• IP Rating IP20
• Voltage 5V
• Size 70W

Standards & Conformities

Standards & certifications

IP20Ingress protection

Documents

Full Description

Weidmüller PRO MAX single-phase switch-mode power supply delivering 70 W at 5 V DC. A 5 V rail at 14 A is typically used for logic boards, sensor electronics and legacy instrumentation that cannot be fed from the cabinet's 24 V supply.

• Input: 100…240 V AC single-phase, 45–65 Hz
• Output voltage: 5 V DC

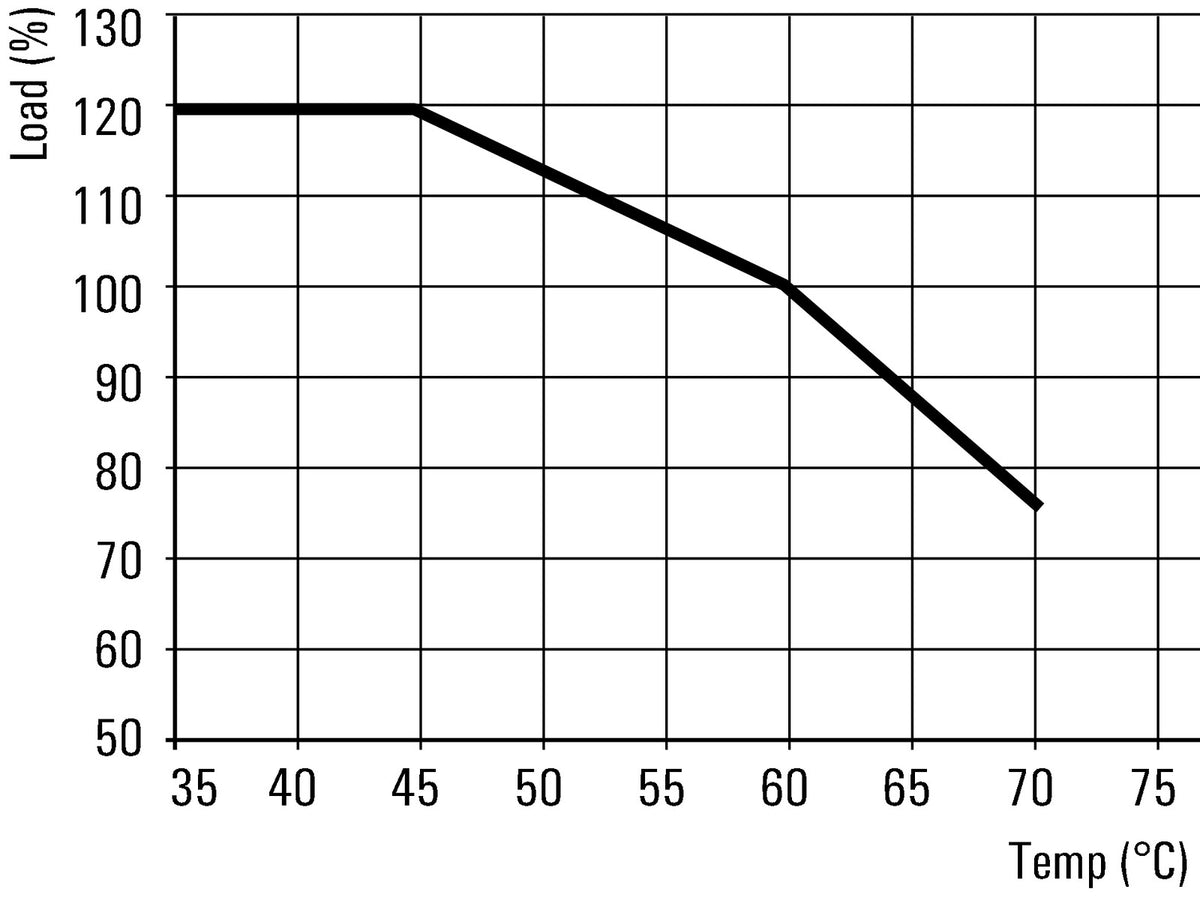

• Output current: 14 A @ 60 °C
• Output power: 70 W
• Efficiency: 86 %
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 32 x 130 x 125 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
