Power Supply Communication Module, Current and Voltage Display - PRO COM DISPLAY 7S

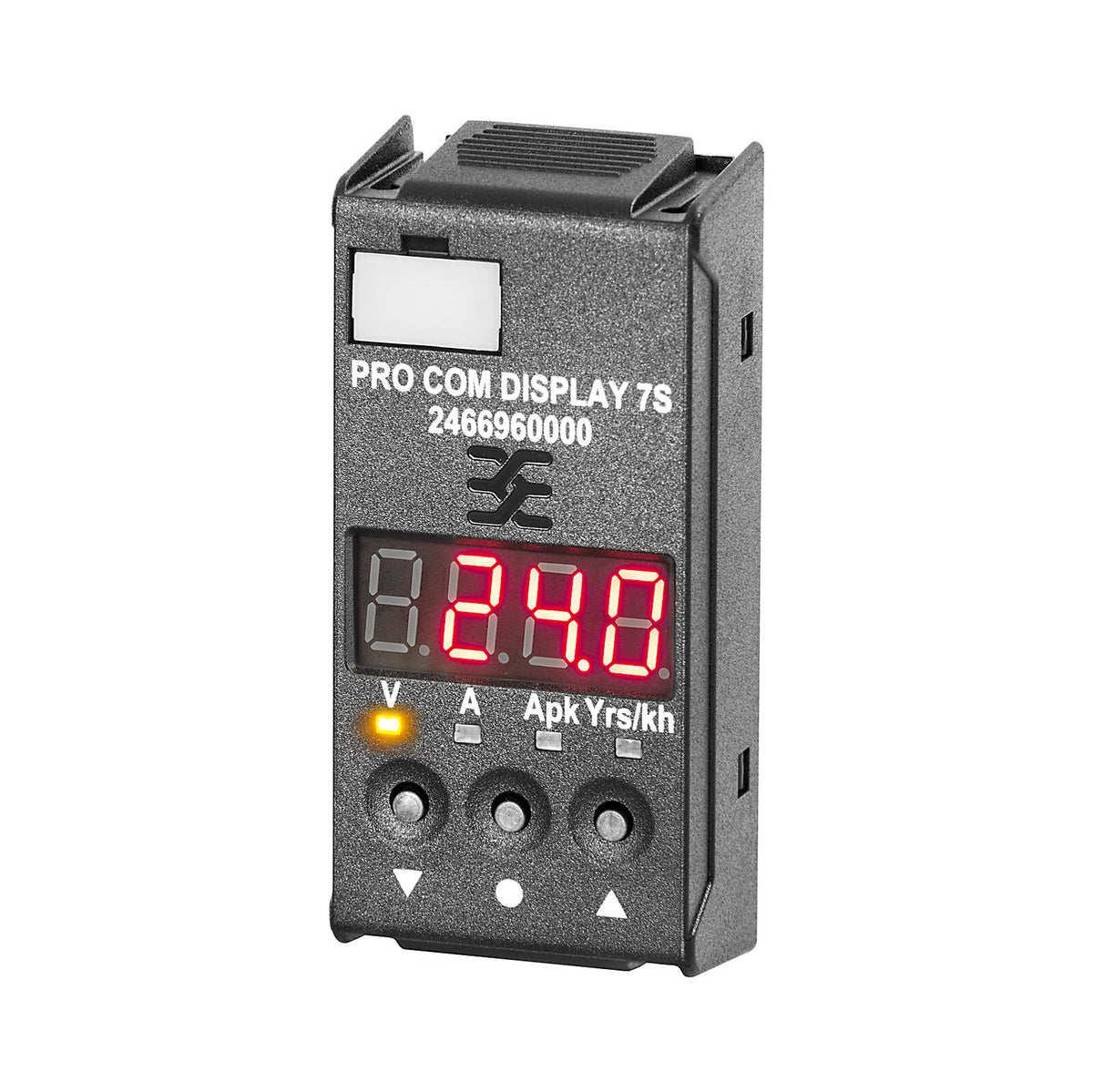

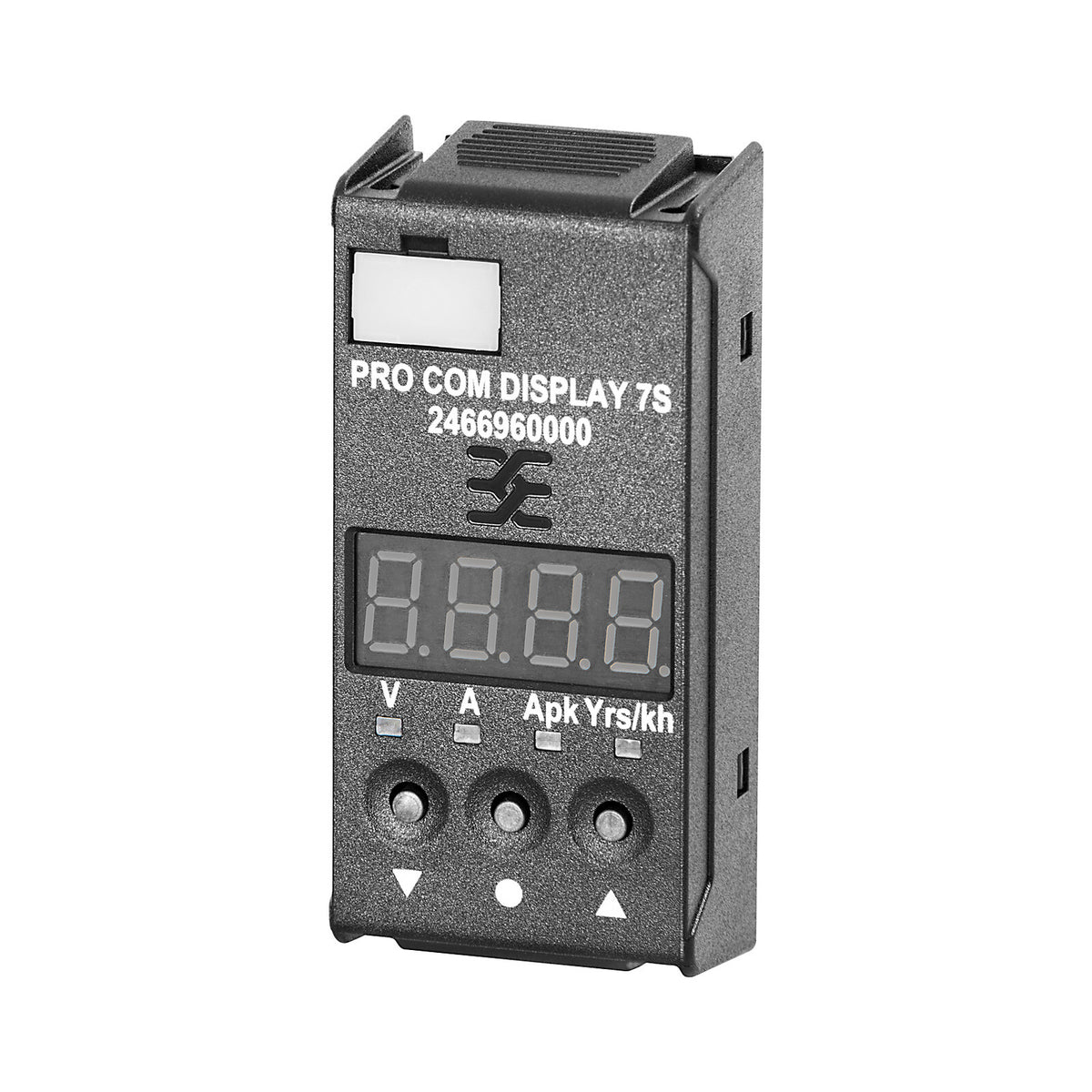

The Weidmüller PRO COM DISPLAY 7S is a plug-on display module for PROtop power supplies, giving a local readout of output voltage and output current on a four-digit seven-segment display without any external meter or software. It also reports peak current, a maintenance forecast in years and remaining runtime in kilohours, so an ageing supply can be identified before it fails. Combinability with the specific PROtop unit should be checked before commissioning.

• Suits: Weidmüller PROtop power supplies (check combinability for the specific unit)
• Display: Four-digit seven-segment with unit LEDs
• Readings: Output voltage (V), output current (A), peak current (A pk), maintenance forecast (years), remaining runtime (kh)
• Connection: Plugs directly onto the power supply's module interface, two-way communication for readout and setting
• Dimensions (W x H x D): 34 mm x 74.4 mm x 33.6 mm
• Weight: 36 g
• Protection degree: IP20
• Operating temperature: -25 °C to +70 °C
• MTTF: 2,505,000 h at 40 °C, 100 % duty cycle
• Approvals: cULus (UL file E258476), cULus EX (UL file E470829), EN 61558-2-16, RoHS compliant with exemptions
