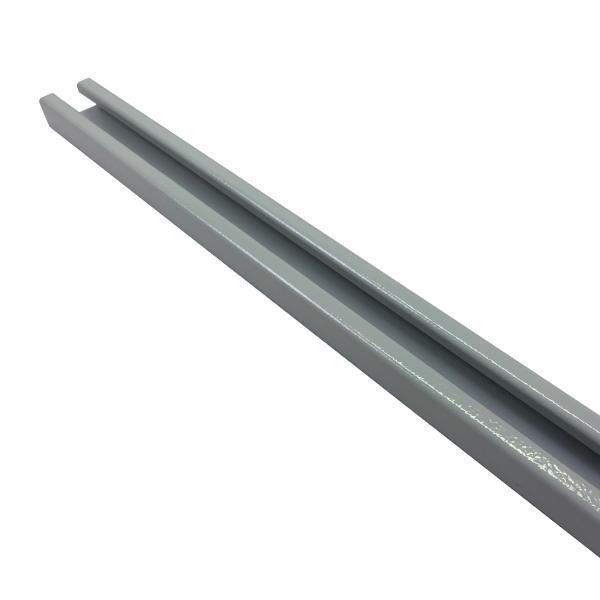

Pole Mount Profile x 300mm
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035.

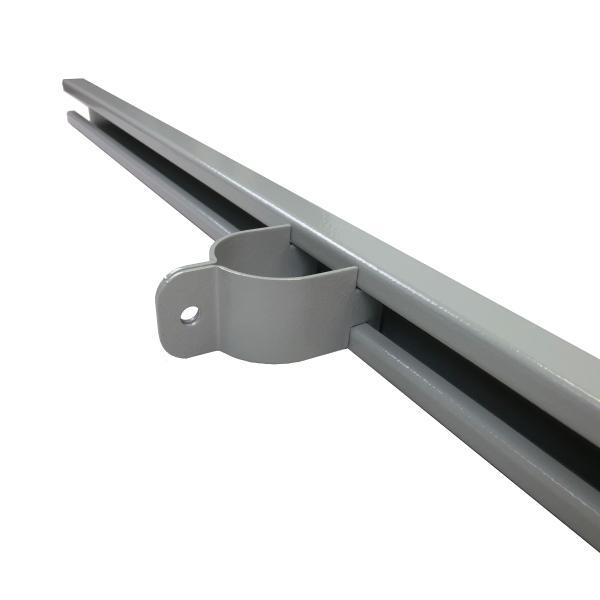

U-Channels are provided with slotted holes to suit all sizes of IP Enclosures electrical enclosures. Simply fasten the U-Channel to the existing nutsert mounting points of IP Enclosures electrical enclosures.
A minimum of two U-Channels are required for each enclosure and should be mounted at the top and bottom of the enclosure. For larger electrical enclosures, a middle U-Channel may also be added. U-Channels are provided in 1200mm lengths to be cut to suit the size of the enclosure. For small enclosures less than 600mm wide, one length of U-Channel can be cut and used for both the top and bottom channels.
Brackets are sold separately.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
