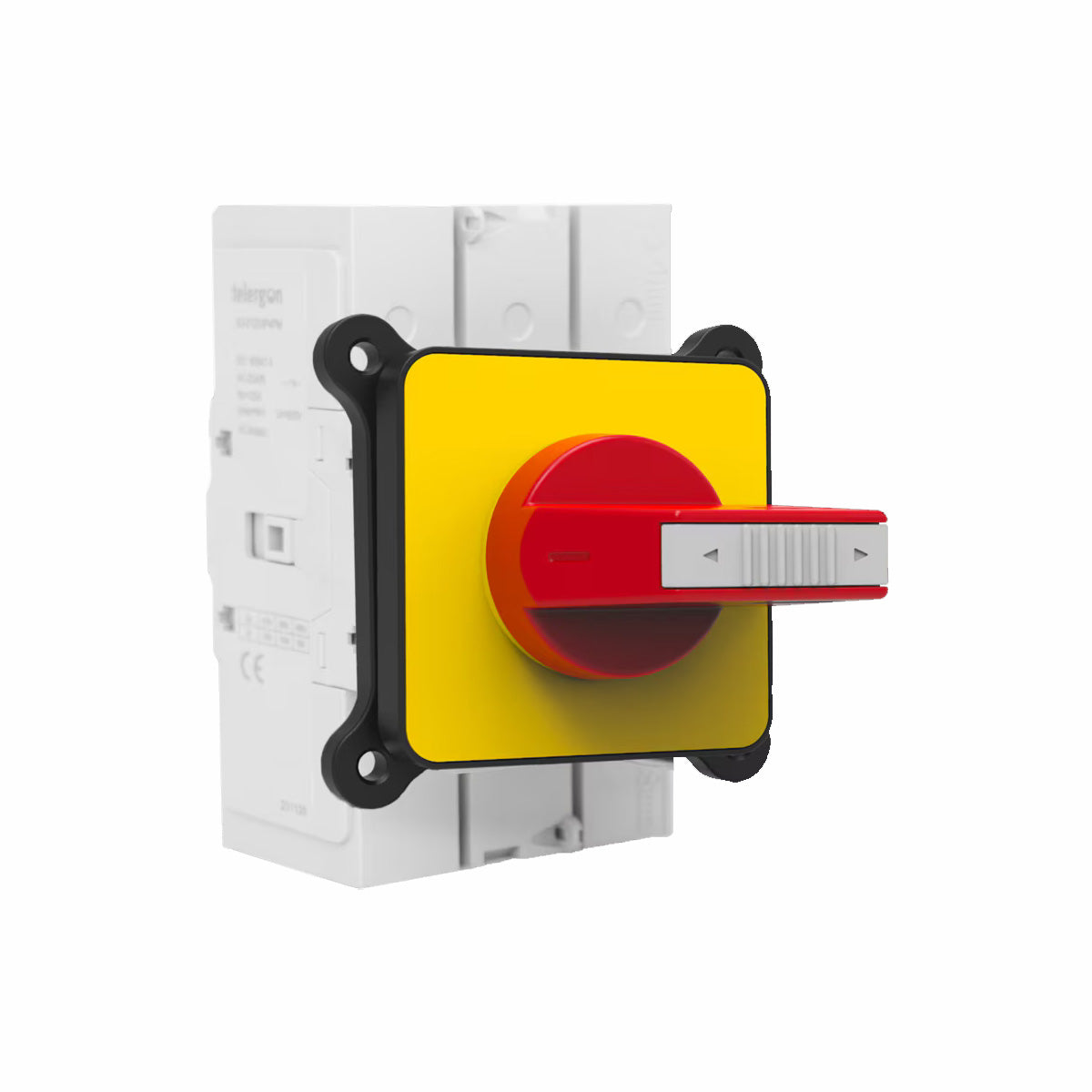

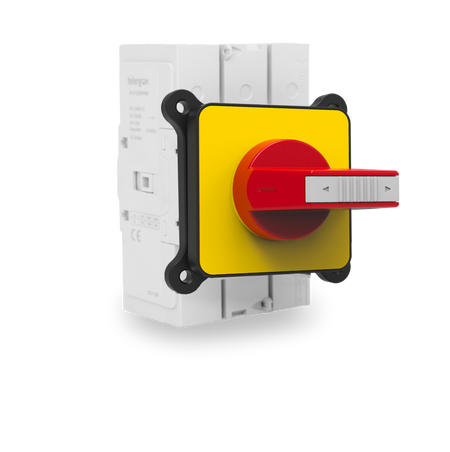

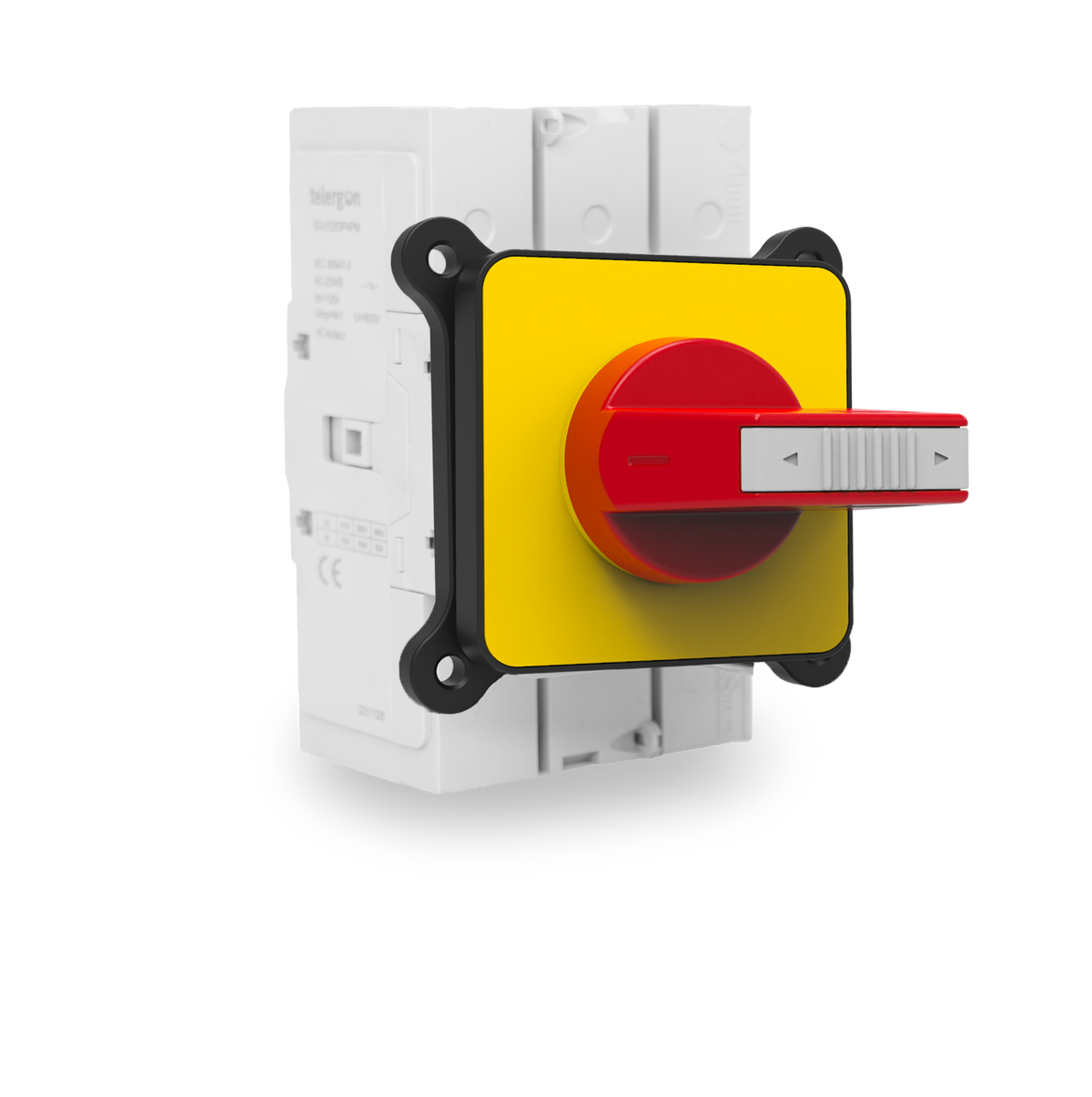

32A 4-Pole Panel Mount Isolator
- Current
- Poles
- Size
32A 4-Pole Panel Mount Isolator
Integrate safety switching directly into your control panel with this 32A isolator. Rear-mounting terminals keep wiring internal, while the rotary handle mounts on the door surface. Rated for 4-pole operation with an early-make/late-break neutral pole to ensure system stability during switching.
Frame Size 000 – One Size, Several Ratings
Frame size 000 also covers the 16A, 20A, 25A and 40A ratings, all with the same body size, front plate, panel cut-out and terminal capacity. The 40A version can be used as a direct replacement for this 32A unit and suits any load up to its own rating.
In this frame: 40A 4-Pole Panel Mount Isolator | 20A 4-Pole Panel Mount Isolator
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
