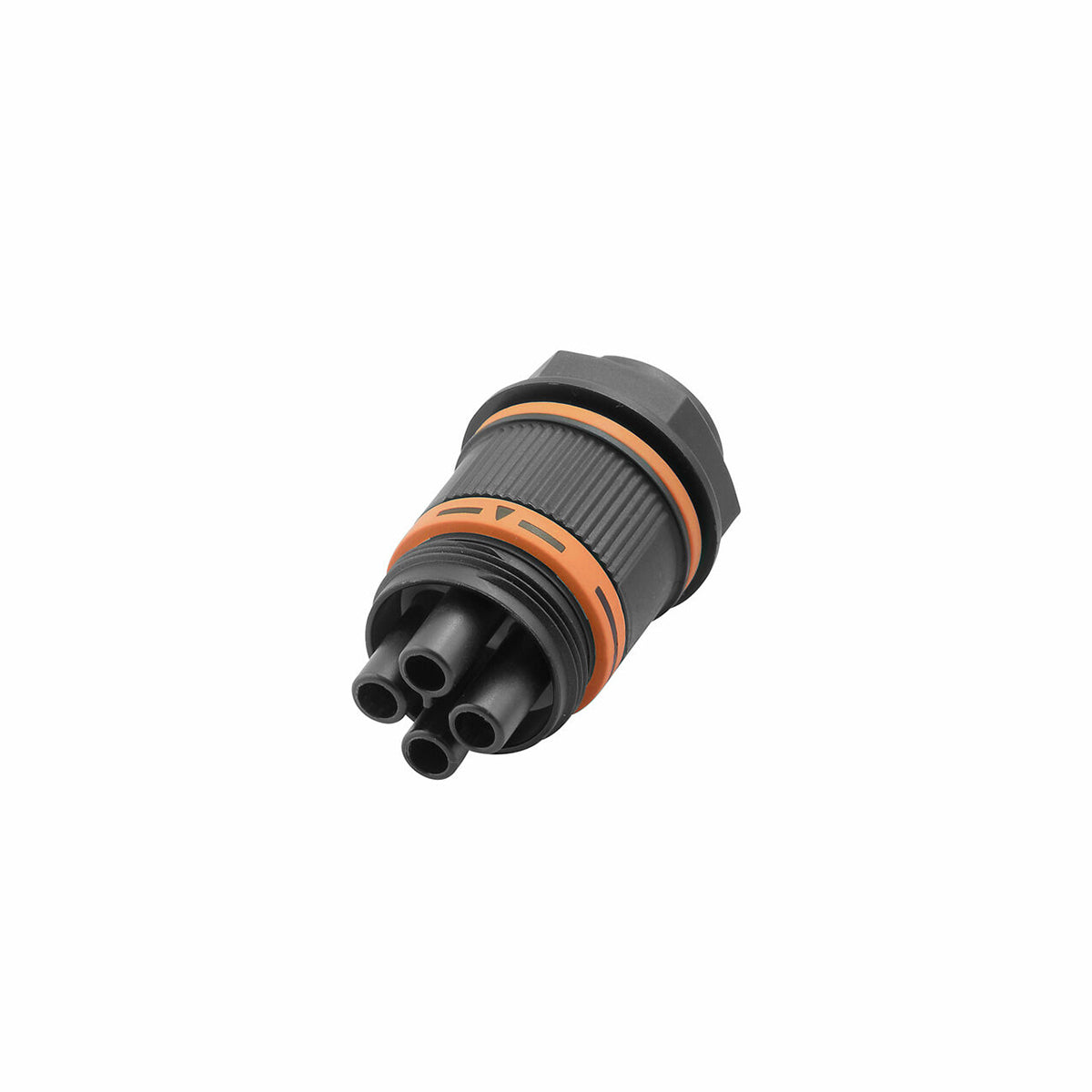

IP68 Panel Mount Cable Connector 4-Pole Female Socket
Ask an expert!
- IP Rating
Standards & certifications
IP68Continuous immersion
The Weidmüller 3136920000 (RC F P4 M20) is a 4-pole panel mount cable connector female socket with screw terminal connection, rated at 17.5A and 500V with IP68 ingress protection. Designed for front mounting on enclosures, control cabinets, and machines, it provides a sealed and secure cable entry point accessible from the field side without opening the enclosure. The panel mount design supports fixed installation on enclosure walls for consistent and reliable connections. The M20 thread accommodates cable diameters from 7 to 13 mm and conductor cross sections from 0.5 to 4 mm². Features reverse polarity protection and PA 66 housing. Pairs with the Weidmüller 3136910000 male plug. Protective cap 2833850000 available separately to maintain IP68 rating when disconnected.
| Article Number | 3136920000 |
| Weidmüller Type | RC F P4 M20 |
| Configuration | Panel Mount, Female Socket |
| Number of Poles | 4 |
| Connection Type | Screw connection |
| Rated Current | 17.5 A |
| Rated Voltage | 500 V |
| IP Rating | IP68 |
| Connection Thread | M20 |
| Cable Diameter | 7–13 mm |
| Conductor Cross-Section | 0.5–4 mm² |
| Housing Material | PA 66 |
| Operating Temperature | -40 °C to +60 °C |
| Reverse Polarity Protection | Yes |
| Approvals | cULus (E307231) · RoHS |
