MOC-AUX Auxiliary Contact 2NO for MOC Modular Contactors

MOC-AUX Auxiliary Contact 2NO for MOC Modular Contactors

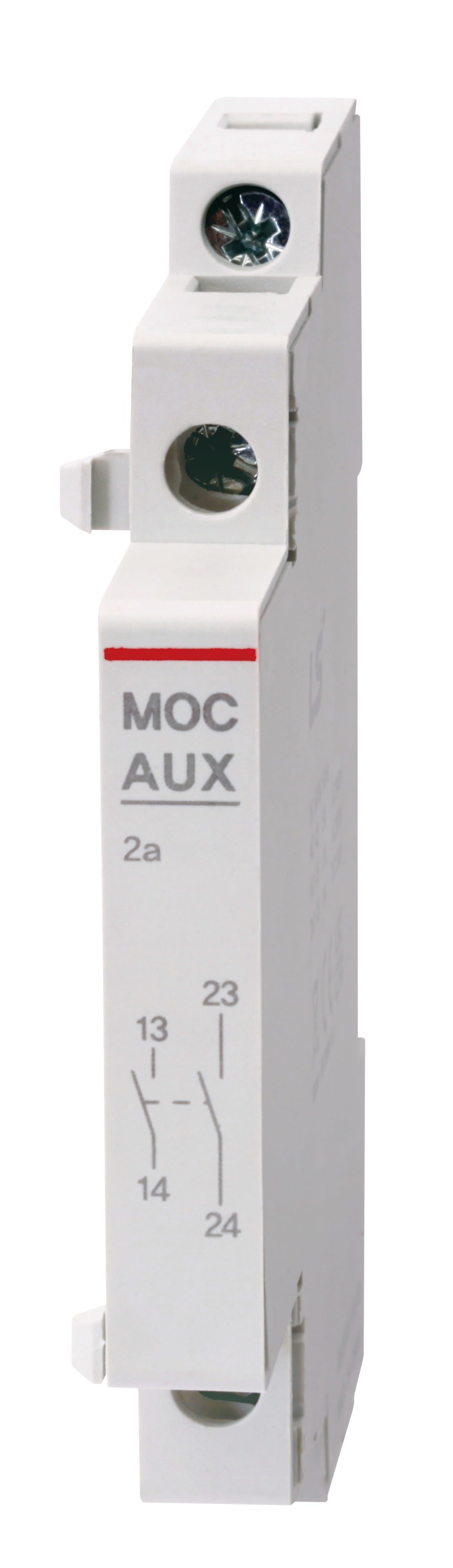

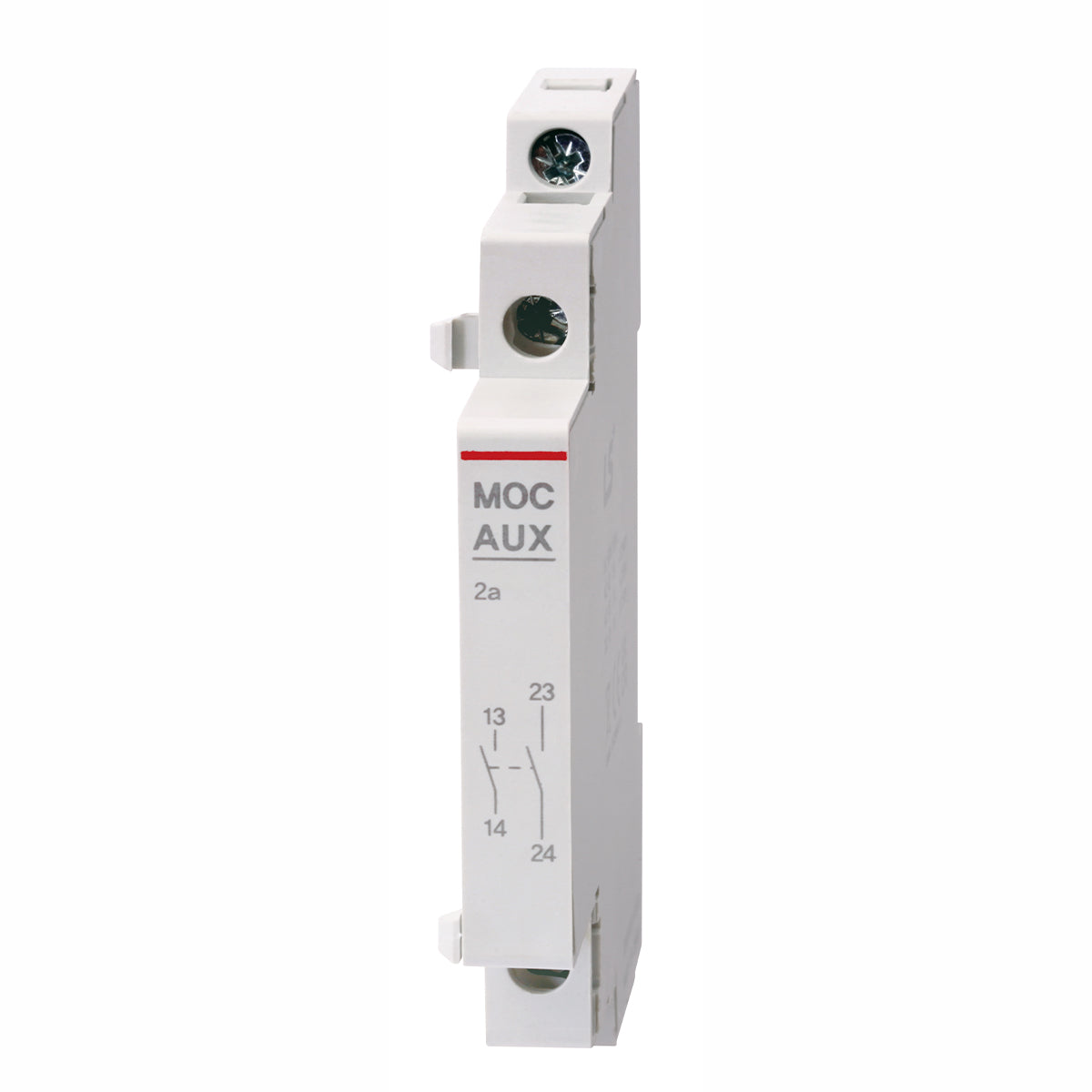

Auxiliary contact block with two normally open contacts for LS Electric MOC modular contactors. Signals the contactor's on/off status to a controller or indicator. 9 mm wide; rated AC-12 240 V 5 A, AC-15 230 V 2 A and DC-13 130 V 1 A to IEC 60947-5-1.

Features and Specifications

Protection: IP20 (device). Operating range −5°C to +60°C.

Standards (& Conformities): IEC 60947-5-1.

Electrical:

Contacts: 2NO
AC-12: 240 V, 5 A
AC-15: 230 V, 2 A
DC-13: 130 V, 1 A

Dimensions and Mounting:

Width: 9 mm
Height × depth: 81 mm × 68 mm
Clip-on 35 mm DIN rail alongside the contactor

Termination:

1.5–2.5 mm² (2 × 1.5 mm² rigid, 2 × 2.5 mm² flexible)
Tightening torque: 0.8 N·m

Suits: LS Electric MOC modular contactors, 25 A to 100 A.

Manufacturer: LS ELECTRIC Co., Ltd.
