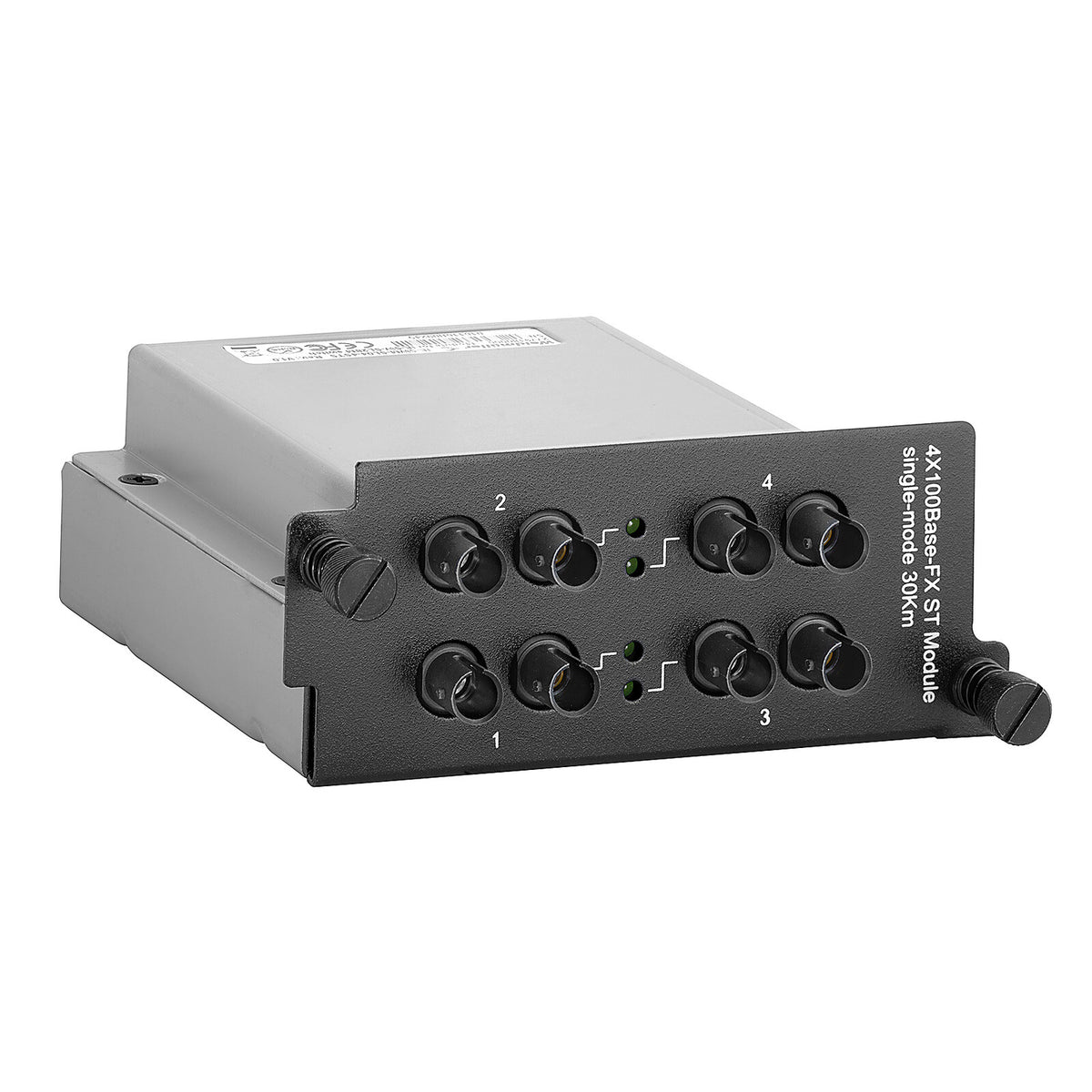

MEDIA INTERFACE MODULE, 4 X ST SINGLEMODE FIBRE, 10/100 - IE-SWM-SL04-4STS

The Weidmüller IE-SWM-SL04-4STS is a plug-in media interface module with four 100BaseFX singlemode fibre ports on ST-duplex connectors. It fits module slot M1, M2 or M3 of the SubstationLine modular managed switch chassis (IE-SW-SL26M / IE-SW-SL28M), which are supplied without media modules fitted, and provides Fast Ethernet links of up to 30 km on ST-terminated singlemode plant.

• Ports: 4x 100BaseFX singlemode
• Connector: ST-duplex
• Fibre mode: Singlemode
• Transmission speed: Fast Ethernet, 100 Mbit/s
• Maximum range: 30 km (typical)
• Wavelength: 1,310 nm (typical)
• Link budget: 19 dB
• Transmit power: -15 dBm to -8 dBm
• Receive sensitivity: -34 dBm to 0 dBm
• Module slot: M1, M2 or M3
• Supply: Via the host Ethernet switch
• Operating temperature: -40 °C to 85 °C
• Dimensions (W x H x D): 99 mm x 40.7 mm x 107 mm
• Weight: 209 g
• Approvals: RoHS compliant (exemption 7cI)
