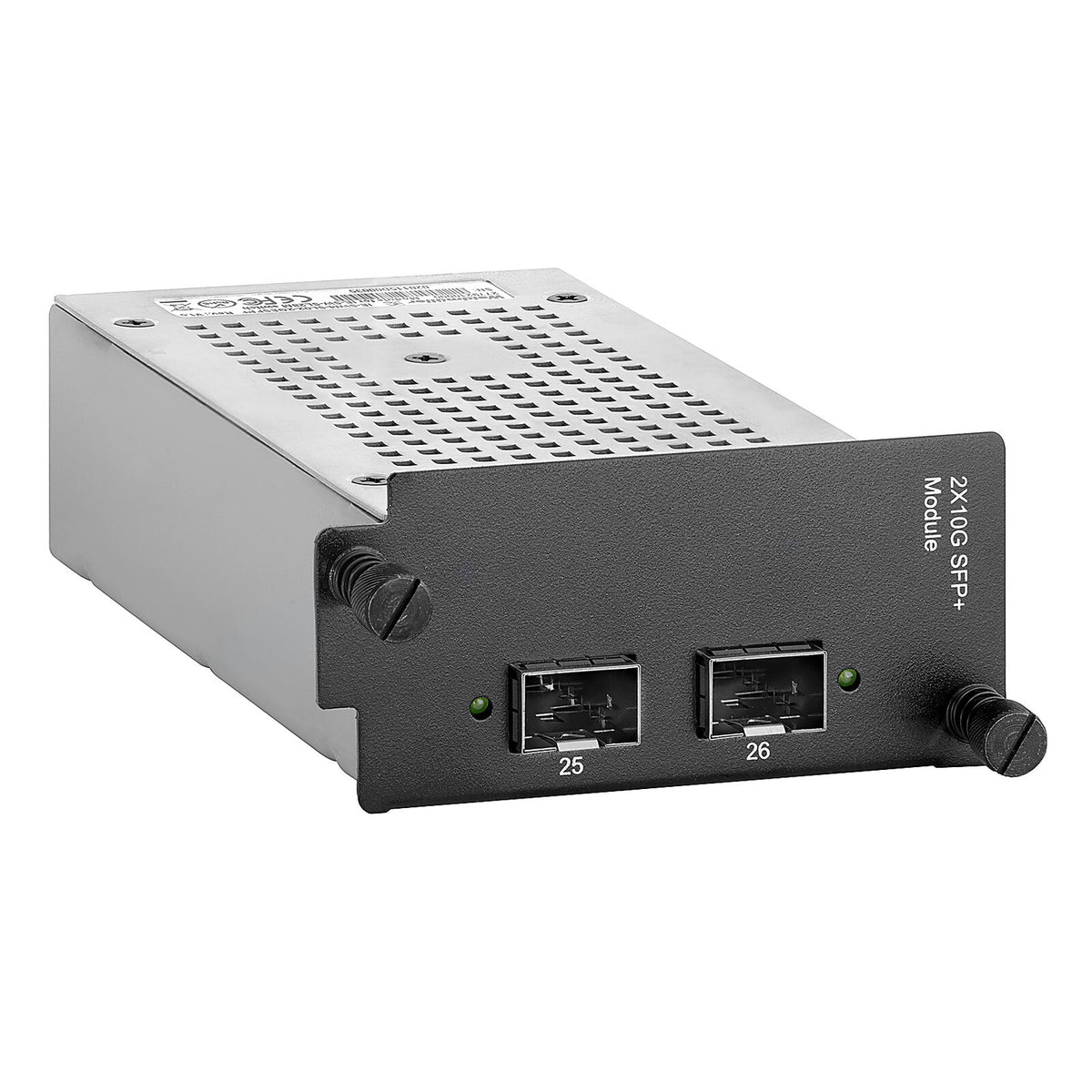

MEDIA INTERFACE MODULE, 2 X SFP+ 10G, M4 SLOT - IE-SWM-SL02-2GESFP+

The Weidmüller IE-SWM-SL02-2GESFP+ is a plug-in media interface module with two combined SFP/SFP+ slots for Gigabit or 10-Gigabit Ethernet. It occupies module slot M4 of the SubstationLine modular managed switch chassis (IE-SW-SL26M / IE-SW-SL28M), which are supplied without media modules fitted, and is normally used for high-speed uplinks or ring backbone connections.

• Ports: 2x 1000BaseSFP / 10GBaseSFP+ slot
• Connector: SFP/SFP+ cage; transceivers ordered separately
• Transmission speed: Gigabit Ethernet / 10-Gigabit Ethernet
• Module slot: M4
• Supply: Via the host Ethernet switch
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -40 °C to 85 °C
• Dimensions (W x H x D): 99 mm x 40.7 mm x 136 mm
• Weight: 348 g
• MTBF: 3,814,097 h (Telcordia SR-332)
• Approvals: CE, RoHS compliant (exemption 7cI)
