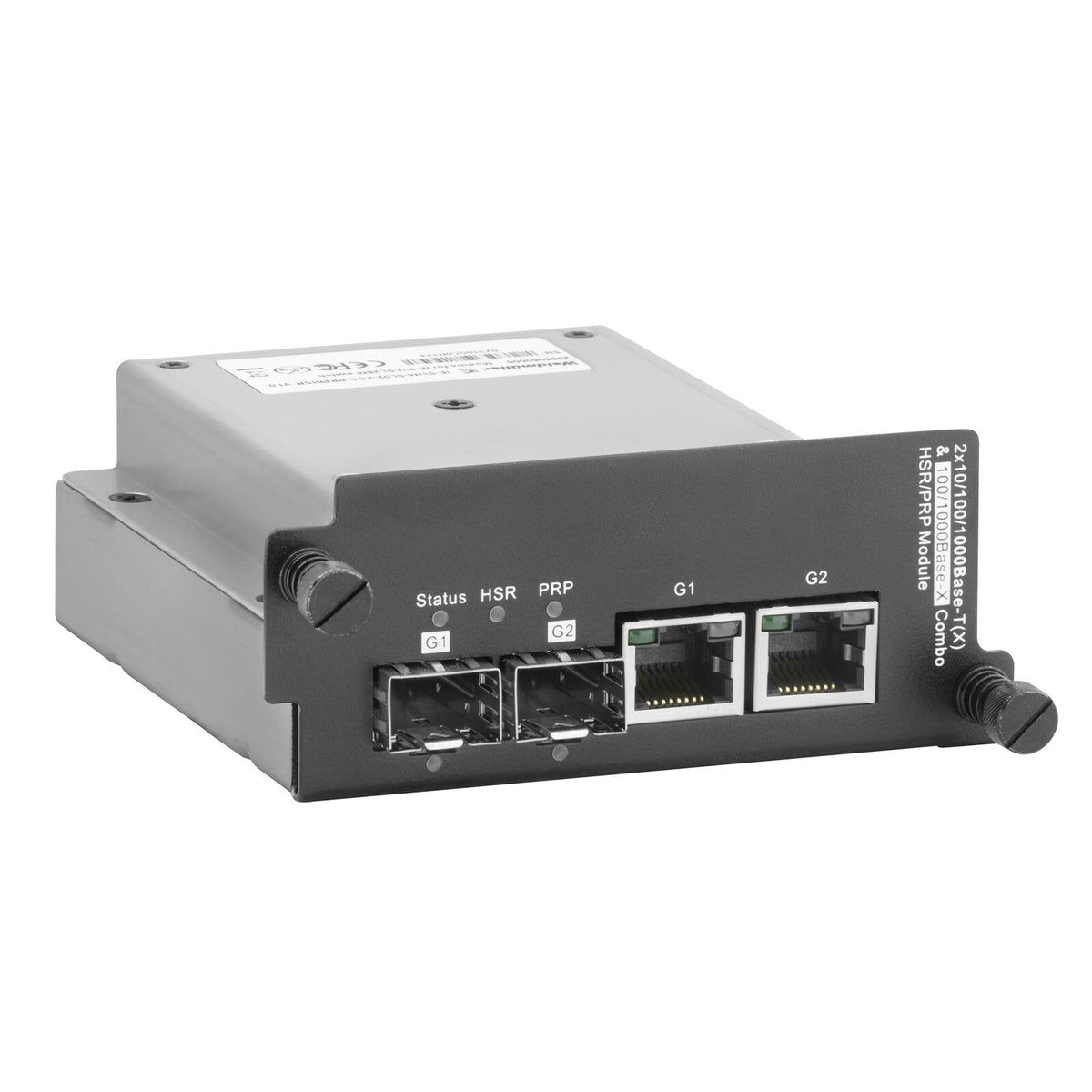

MEDIA INTERFACE MODULE, 2 X RJ45 GIGABIT, PRP/HSR REDBOX - IE-SWM-SL02-2GC-PRP/HSR

The Weidmüller IE-SWM-SL02-2GC-PRP/HSR is a plug-in media interface module that adds two Gigabit combo ports and PRP/HSR RedBox functionality to a modular switch. It fits module slot M1, M2 or M3 of the SubstationLine modular managed switch chassis (IE-SW-SL26M / IE-SW-SL28M), which are supplied without media modules fitted, and attaches standard single-attached devices to a PRP or HSR network for zero-recovery-time redundancy in substation and utility automation.

• Ports: 2x combo port, 10/100/1000BaseT(X) or 100/1000BaseSFP
• Connector: RJ45 or SFP cage per combo port; SFP transceivers ordered separately
• Port features: Auto-negotiation, auto MDI/MDI-X
• Redundancy: PRP/HSR RedBox (Parallel Redundancy Protocol and High-availability Seamless Redundancy)
• Transmission speed: Fast Ethernet / Gigabit Ethernet
• Module slot: M1, M2 or M3
• Supply: Via the host Ethernet switch
• Operating temperature: -40 °C to 85 °C
• Humidity: 5 to 95 % (non-condensing)
• Housing: Metal
• Dimensions (W x H x D): 99 mm x 40.7 mm x 107 mm
• Weight: 380 g
• MTBF: 577,067 h (Telcordia SR-332)
• Approvals: RoHS compliant (exemptions 7a, 7cI); REACH SVHC declared
