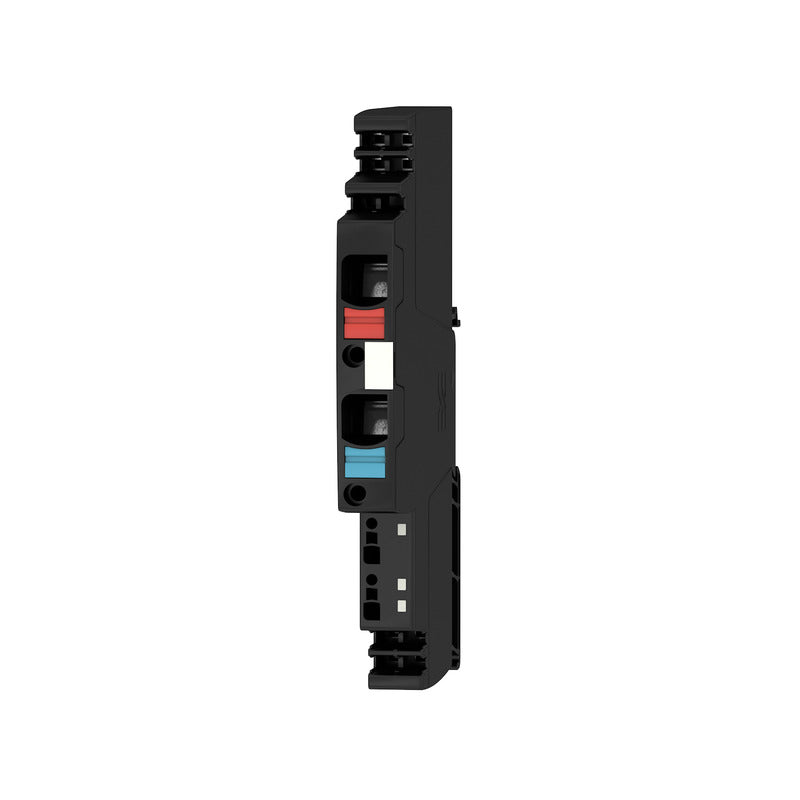

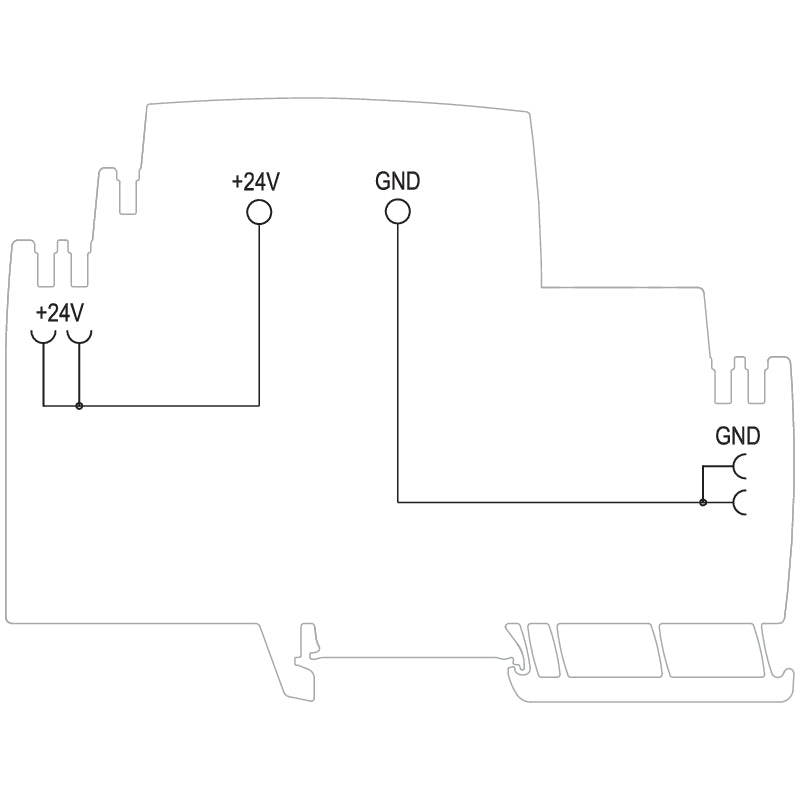

maxGUARD Feed-in Module, 24VDC - AMG FIM-C

The Weidmüller maxGUARD AMG FIM-C is the active feed-in module: it supplies the 24 V DC main current bars at up to 40 A and, unlike the passive AMG FIM-0, ties the station's internal signal line out to an external control unit. It adds a reset input and a positive-switching transistor alarm output at the feed-in point, plus PWR, alarm and reset LEDs, so a small assembly can report and be reset without a separate AMG AM or AMG CM. Use it where you want collective alarm and remote reset but do not need the CM's ON/OFF control or the AM's floating contacts.

• Function: Active feed-in module with reset and collective alarm, supplies 24 V DC to the maxGUARD main current bars
• Rated current: 40 A
• Supply voltage: 24 V DC, range 18…30 V DC
• Current consumption: 20 mA idle, 120 mA at full load
• Max. residual ripple: 100 mVpp
• Alarm output: Transistor output, positive-switching
• Control input: Reset
• Status LEDs: Green (operating voltage OK), red (alarm), yellow (external reset / alarm signalled)
• Input terminals: 2 (+, −); reset and alarm connections 1.5 mm²
• Connection system: PUSH IN
• Width: 12.2 mm
• Dimensions (W x H x D): 12.2 mm x 125 mm x 96.5 mm
• Weight: 78 g
• Operating temperature: −25 °C to +70 °C
• Storage temperature: −40 °C to +85 °C
• Protection degree: IP20
• Approvals: UL (file E258476), RoHS compliant
• Order number: 2081880000
