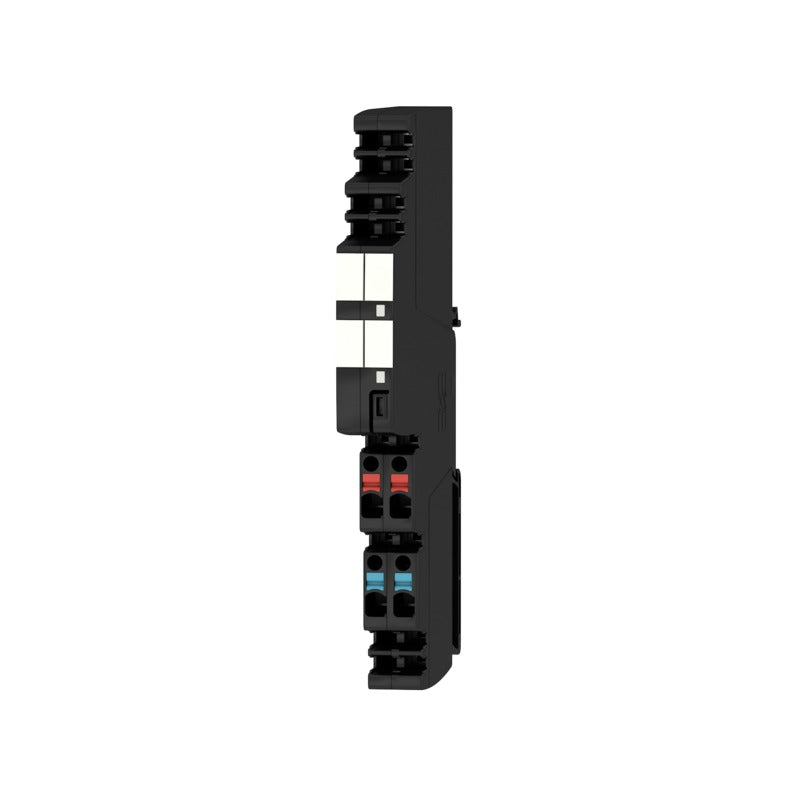

maxGUARD Electronic Load Monitoring, 8.00 A, 24 V DC - AMG ELM-8F

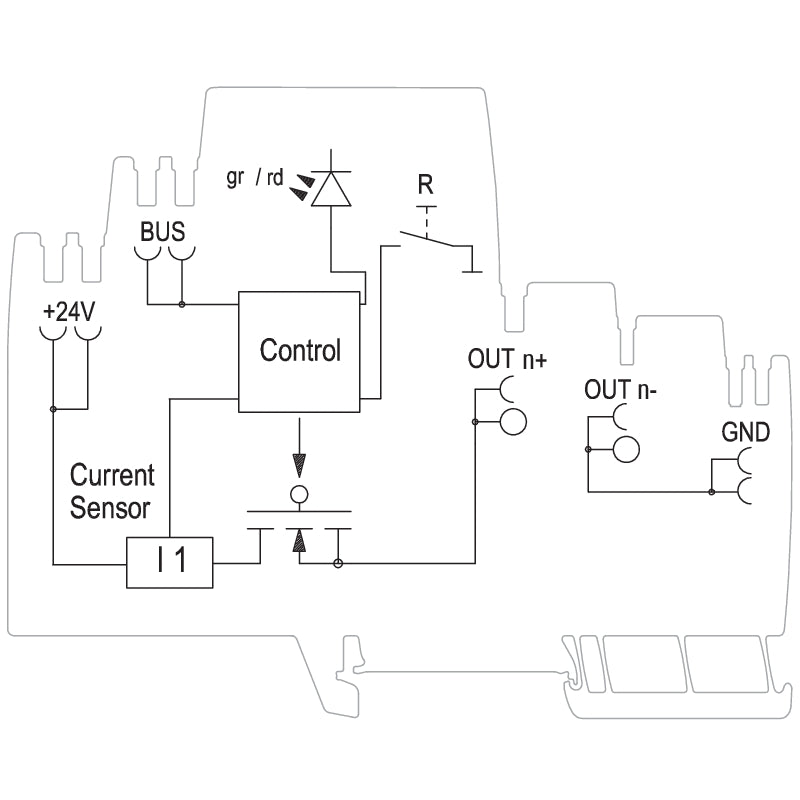

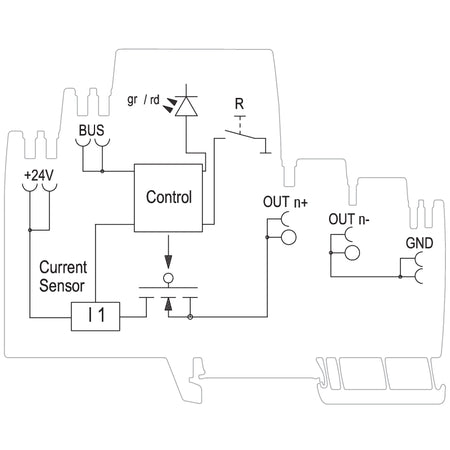

Weidmüller maxGUARD AMG ELM-8F is a single-channel electronic load monitoring module with a fixed 8 A rating, built in the double-width 12.2 mm housing with doubled supply and load terminals (++ / −−) to carry the higher current. The "8" is the current rating, not a channel count, and the trip point is factory-fixed; for a settable trip point in this current band use the adjustable AMG ELM-12.

• Rated current: 8 A, fixed (not adjustable)
• Channels: 1 output channel, 4 terminals (++ / −−)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

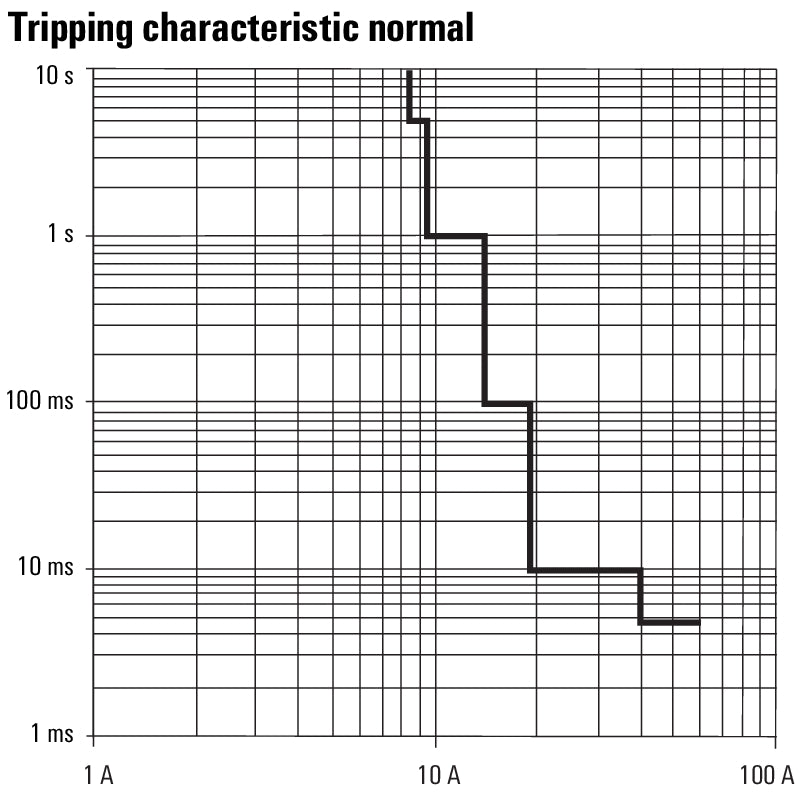

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve
• Switch-on delay: 1 s
• Maximum load capacitance: 15,000 µF
• Power dissipation: 408 mW at no load, 1,188 mW at rated load
• Signalling: green LED for healthy operation; red LED for switched off, flashing red for tripped, fast-flashing red for internal fault
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 12.2 mm
• Dimensions (W x H x D): 12.2 x 125 x 96.5 mm
• Weight: 57 g
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080600000
