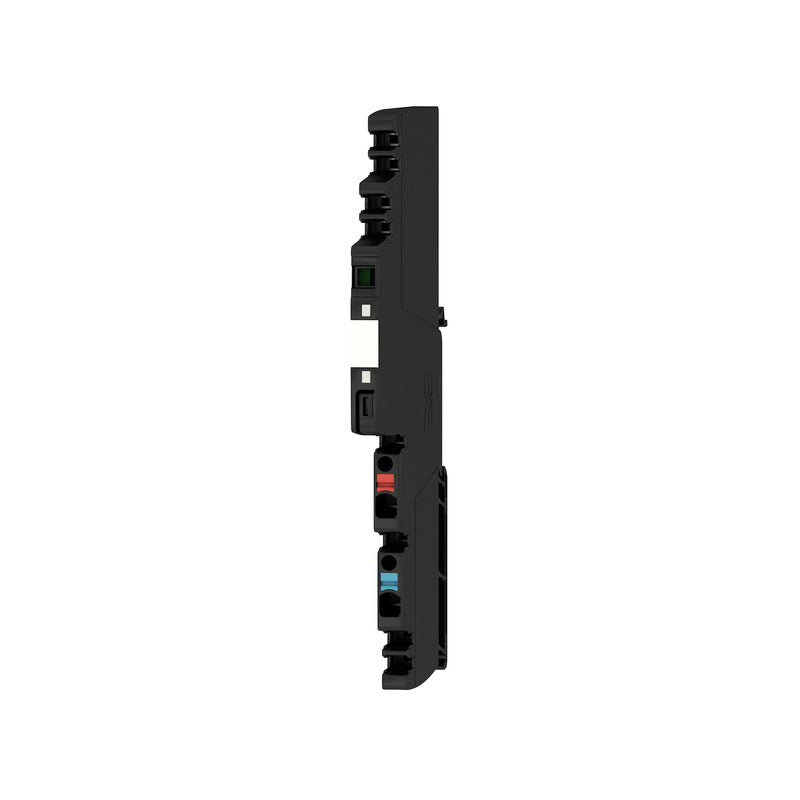

maxGUARD Electronic load monitoring, 6 A, 24 V DC - AMG ELM-6

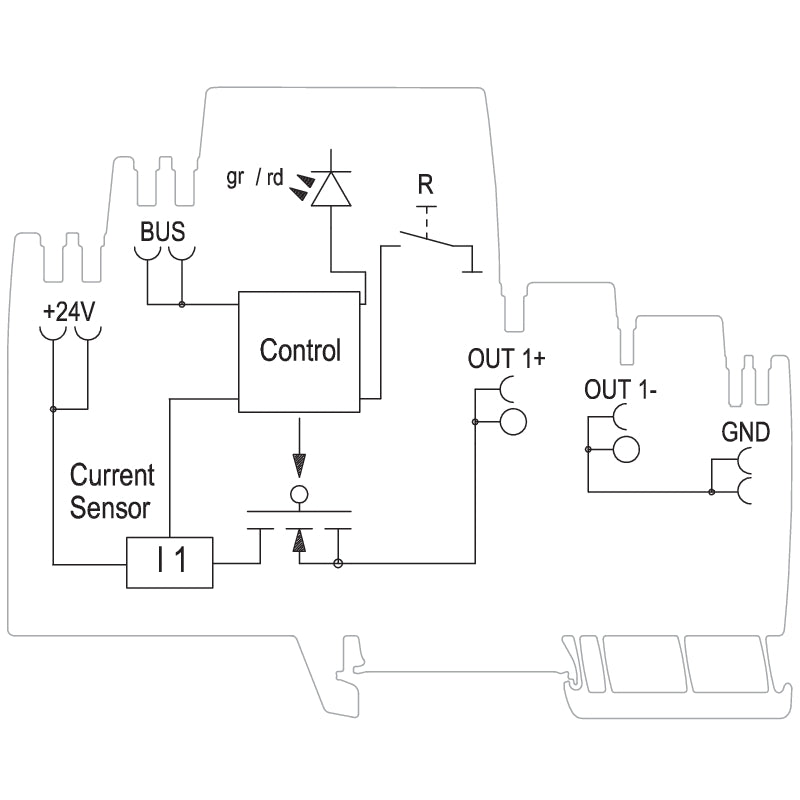

Weidmüller maxGUARD AMG ELM-6 is a single-channel electronic load monitoring module whose trip current is selectable on the module at 1, 2, 3, 4 or 6 A, so one part number covers the whole low-current band in a 24 V DC control panel. Unlike the fixed-rating AMG ELM-6F, it adds the I > 90 % pre-warning function — the green LED flashes and a positive-switching transistor output reports pre-warning and alarm to a PLC before the circuit actually trips.

• Rated current: 6 A maximum, adjustable on the module to 1, 2, 3, 4 or 6 A
• Channels: 1 output channel, 2 terminals (+ / −)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

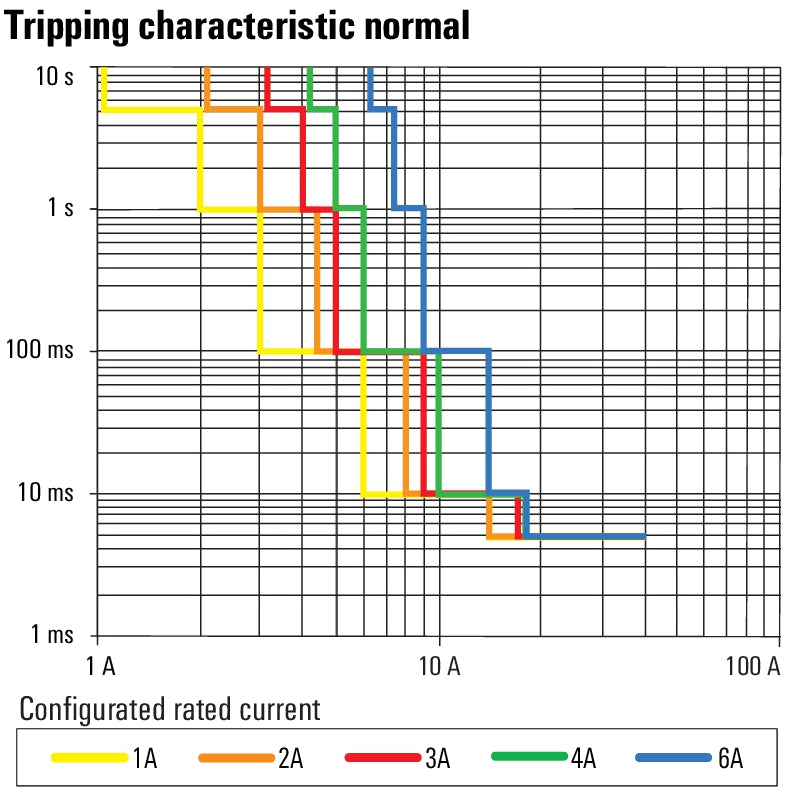

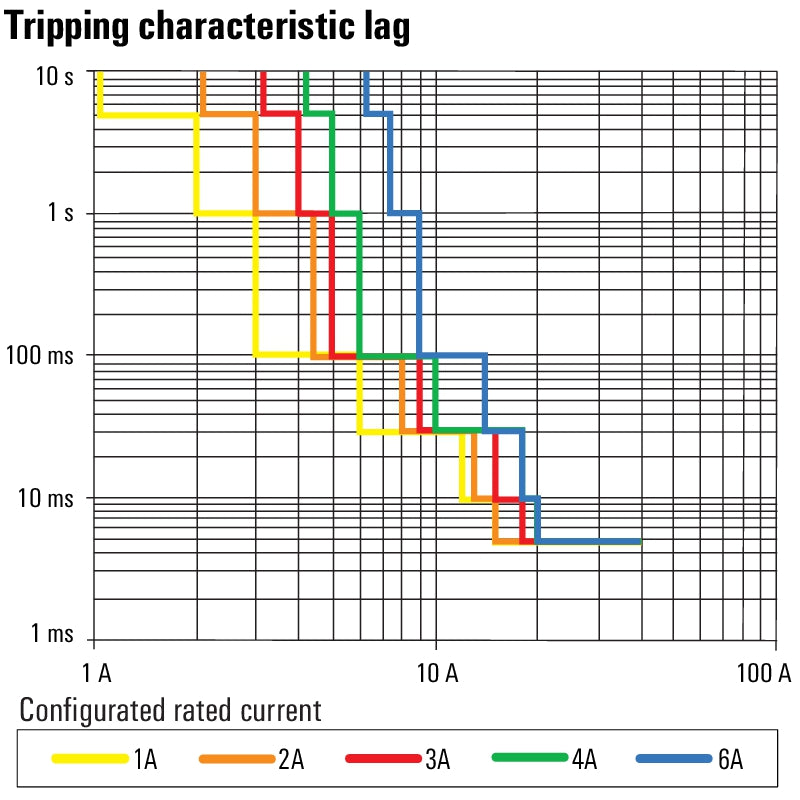

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve; trip current and trip characteristic both adjustable
• Switch-on delay: 1 s
• Maximum load capacitance: 15,000 µF
• Signalling output: positive-switching transistor output for pre-warning and alarm
• Pre-warning: I out > 90 % of set rated current, indicated by flashing green LED
• LED indication: green for healthy operation; red for switched off, flashing red for tripped, fast-flashing red for internal fault
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 6.1 mm
• Dimensions (W x H x D): 6.1 x 125 x 96.5 mm
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080360000
