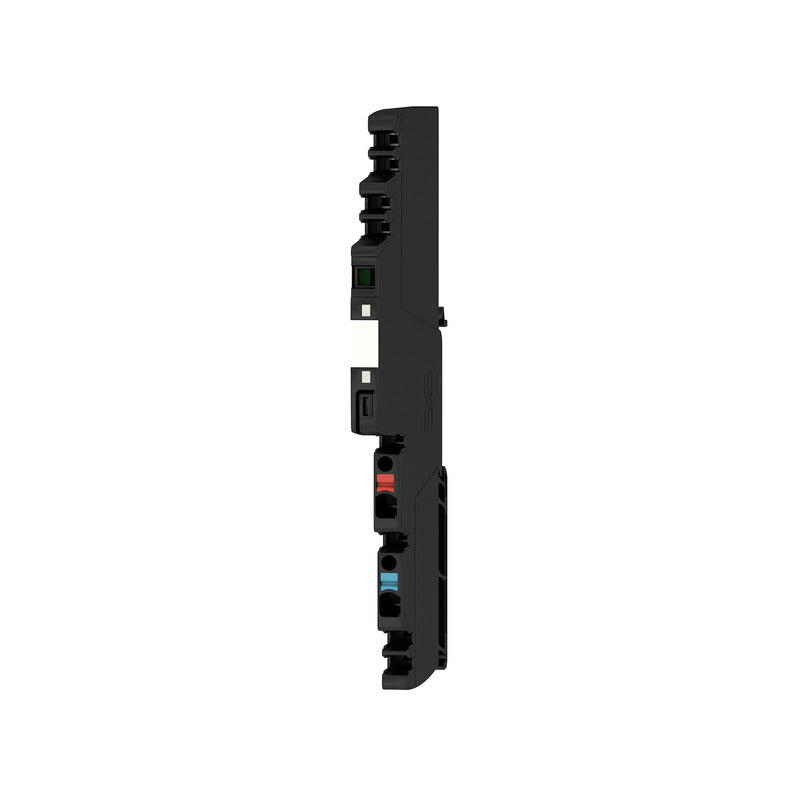

maxGUARD Electronic Load Monitoring, 6.00 A, 24 V DC - AMG ELM-6F

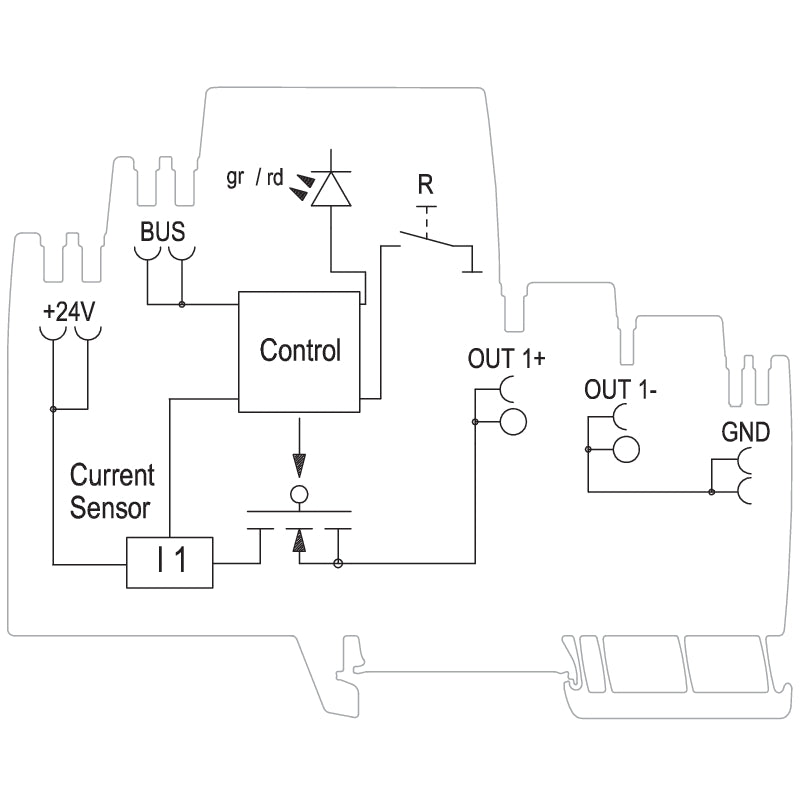

Weidmüller maxGUARD AMG ELM-6F is a single-channel electronic load monitoring module with a fixed, non-adjustable 6 A trip rating for one 24 V DC control circuit. The "F" is the important part of the part number: unlike the otherwise similar AMG ELM-6, this module has no rotary current setting and no positive-switching transistor output for pre-warning and alarm, so it signals by front LED only. Choose it where the circuit rating is locked down by design and you want to prevent field adjustment.

• Rated current: 6 A, fixed (not adjustable)
• Channels: 1 output channel, 2 terminals (+ / −)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

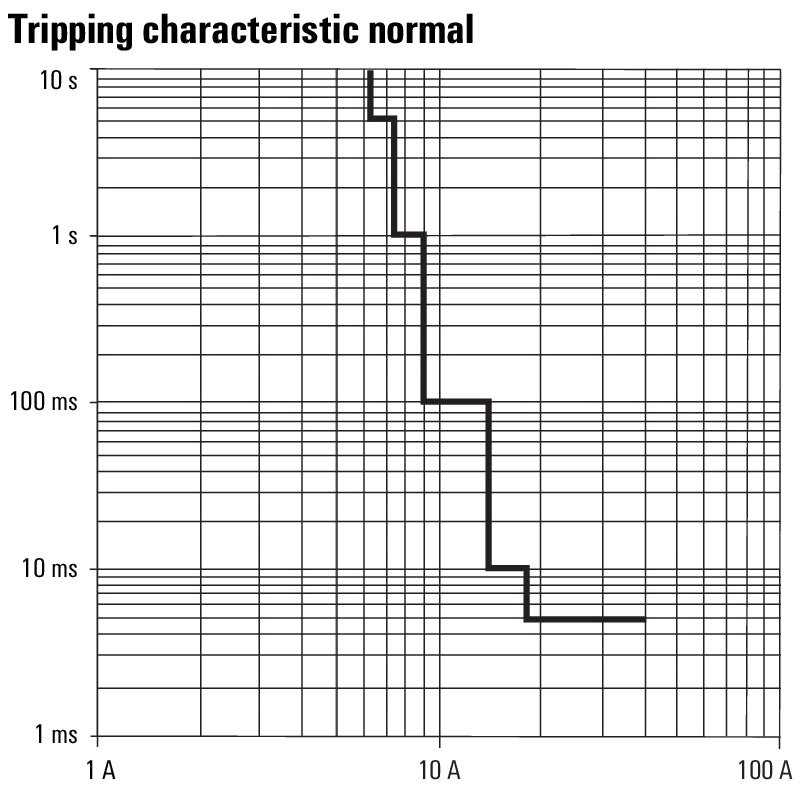

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve
• Switch-on delay: 1 s
• Maximum load capacitance: 15,000 µF
• Signalling: green LED for healthy operation; red LED for switched off, flashing red for tripped, fast-flashing red for internal fault. No I > 90 % pre-warning function
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 6.1 mm
• Dimensions (W x H x D): 6.1 x 125 x 96.5 mm
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080500000
