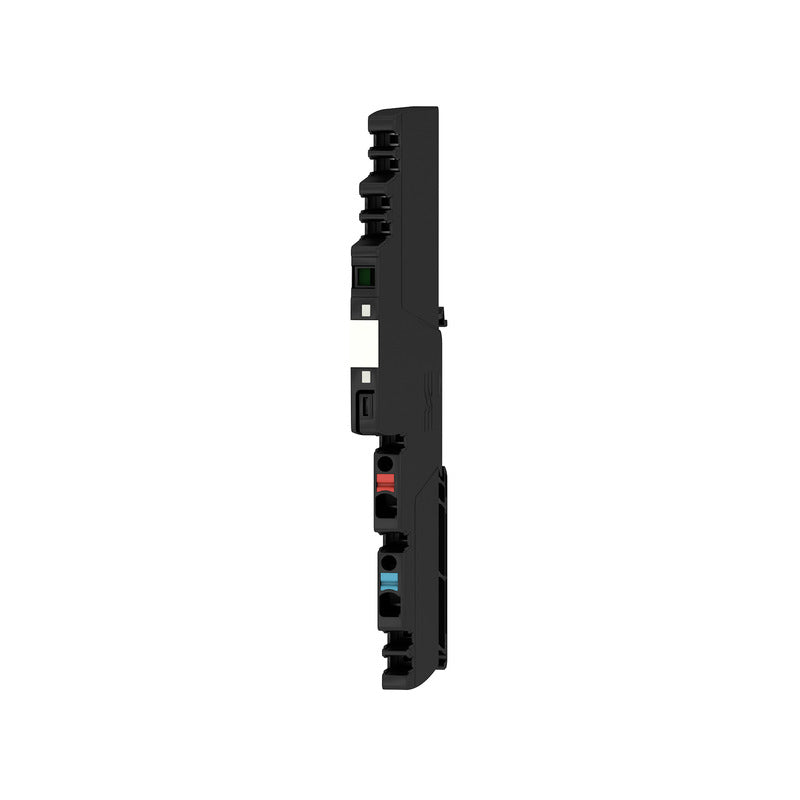

maxGUARD Electronic Load Monitoring, 2.00 A, 24 V DC - AMG ELM-2F

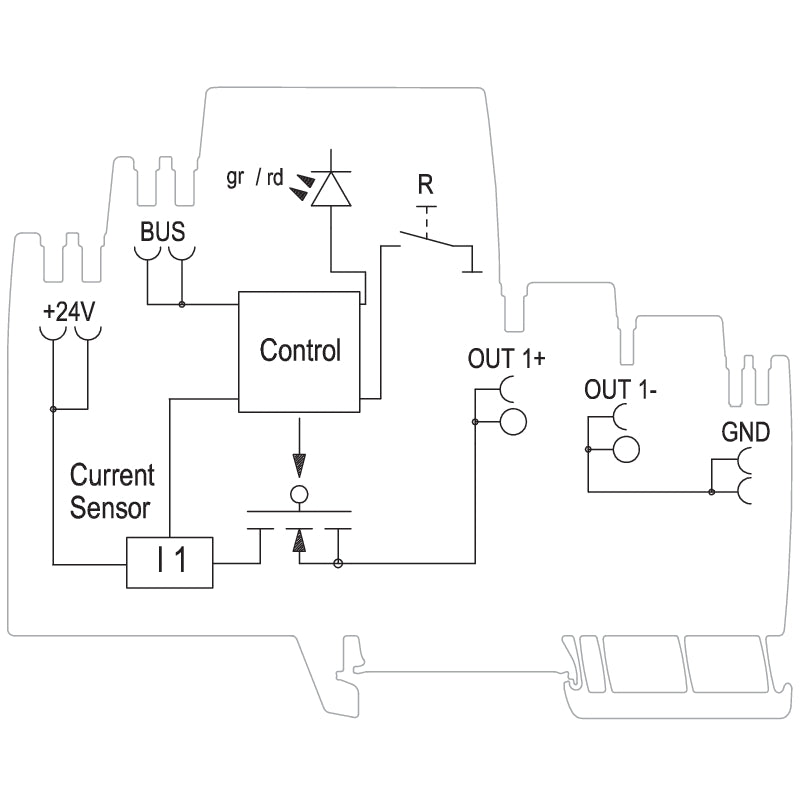

Weidmüller maxGUARD AMG ELM-2F is a single-channel electronic load monitoring module with a fixed 2 A rating, replacing a miniature circuit breaker on an individual 24 V DC control circuit and disconnecting on both overload and short circuit. The trip point is factory-set and cannot be changed in the panel, so specify this variant only where the load current is fixed by design; the adjustable AMG ELM-6 covers 1 A to 6 A and adds a transistor pre-warning output.

• Rated current: 2 A, fixed (not adjustable)
• Channels: 1 output channel, 2 terminals (+ / −)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

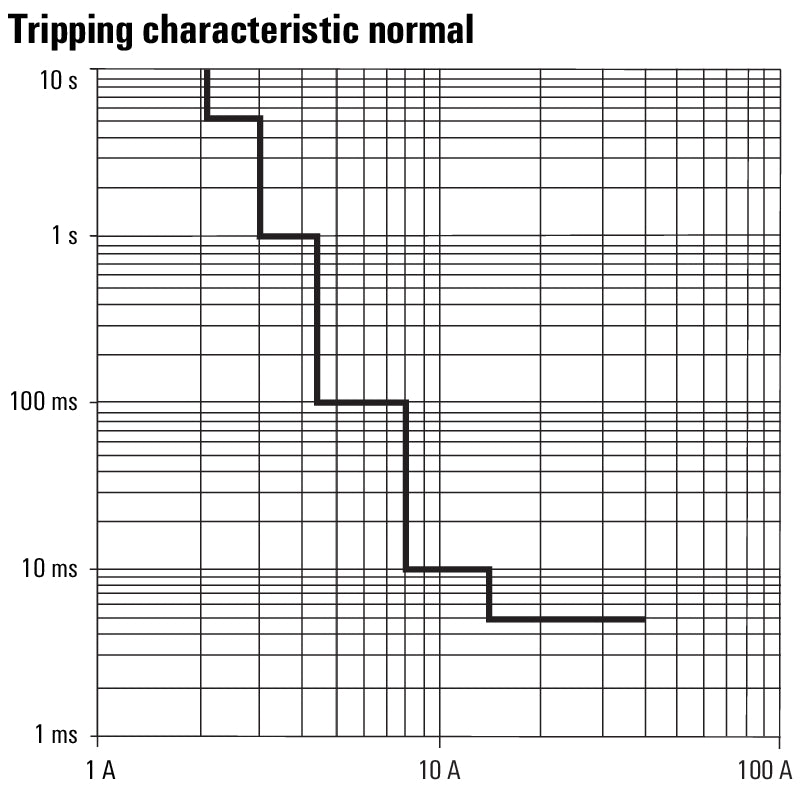

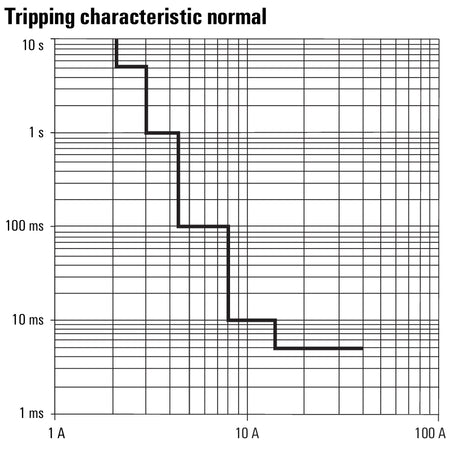

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve
• Switch-on delay: 1 s
• Maximum load capacitance: 10,000 µF
• Signalling: green LED for healthy operation; red LED for switched off, flashing red for tripped, fast-flashing red for internal fault
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 6.1 mm
• Dimensions (W x H x D): 6.1 x 125 x 96.5 mm
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080480000
