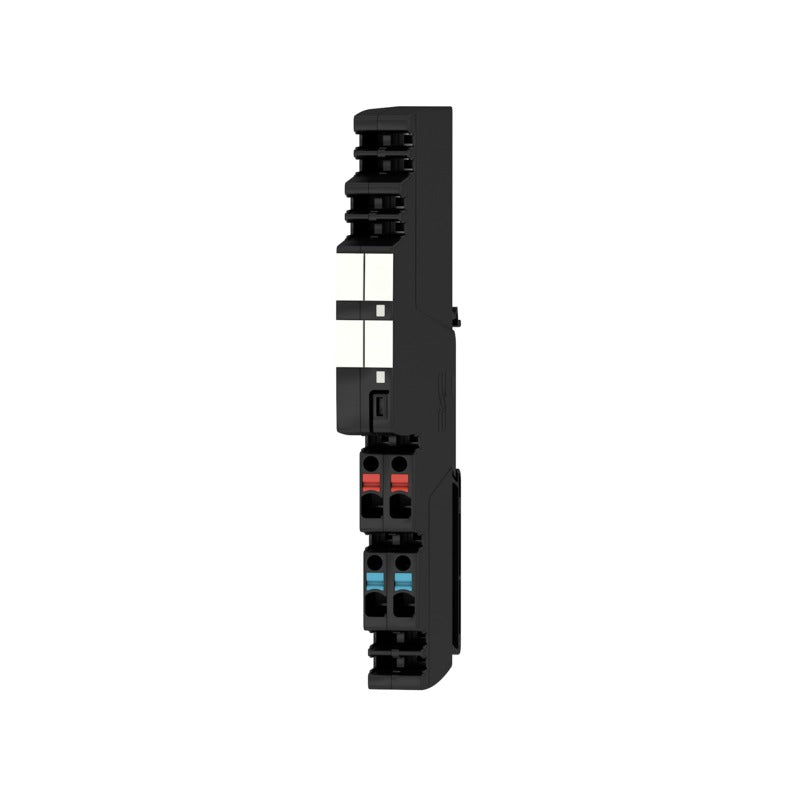

maxGUARD Electronic load monitoring, 10.00 A, 24 V DC - AMG ELM-10F

Weidmüller maxGUARD AMG ELM-10F is a single-channel electronic load monitoring module with a fixed 10 A rating, the highest fixed rating in the maxGUARD ELM range, supplied in the 12.2 mm double-width housing with doubled terminals (++ / −−). It also carries the highest capacitive load allowance of the fixed types at 20,000 µF, which matters when feeding switched-mode loads with large input capacitors.

• Rated current: 10 A, fixed (not adjustable)

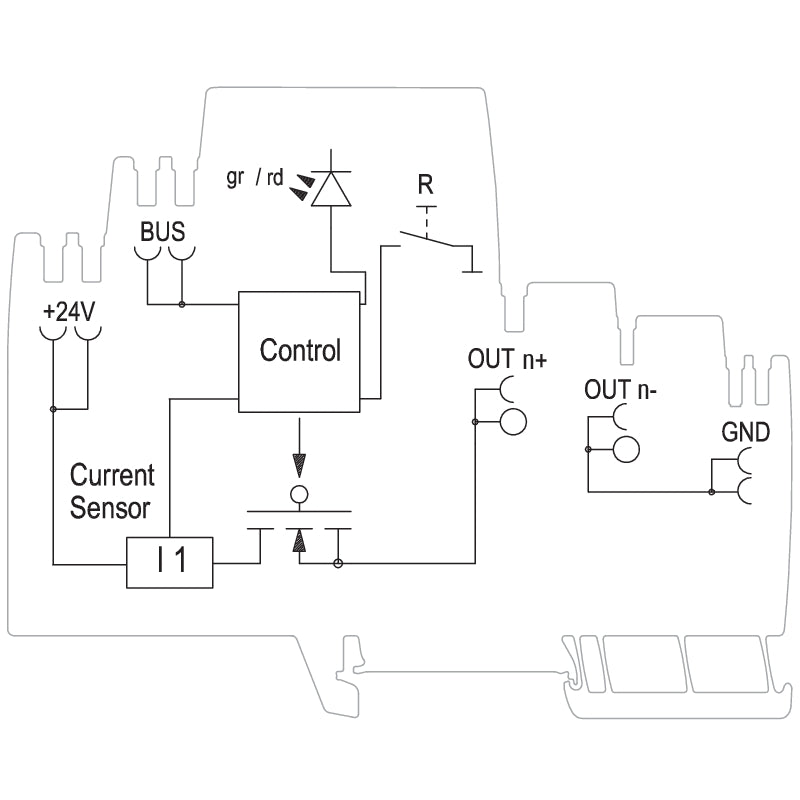

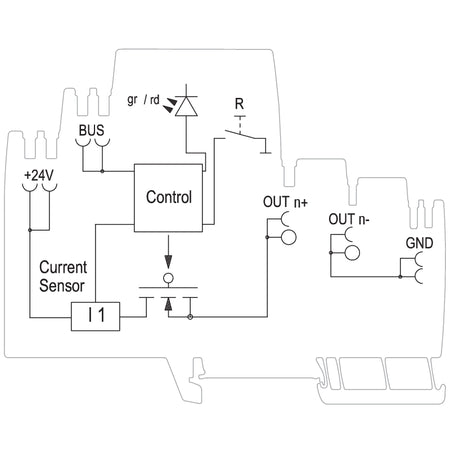

• Channels: 1 output channel, 4 terminals (++ / −−)
• Supply voltage: 24 V DC nominal, 18 V DC to 30 V DC operating range

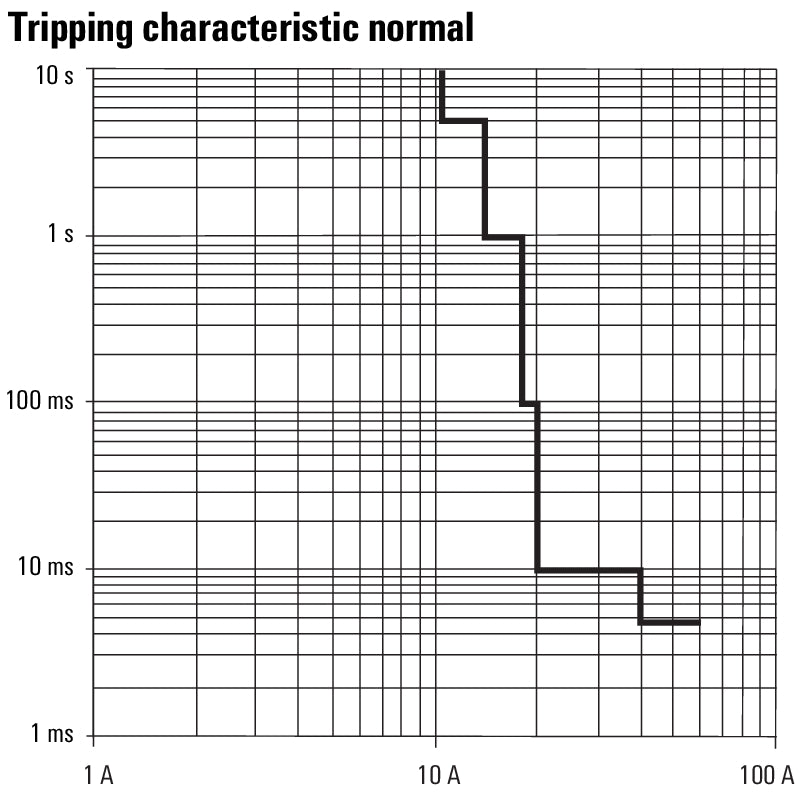

• Trip behaviour: overload and short-circuit disconnection to the published characteristic curve
• Switch-on delay: 1 s
• Maximum load capacitance: 20,000 µF
• Signalling: green LED for healthy operation; red LED for switched off, flashing red for tripped, fast-flashing red for internal fault
• Reset: manual, via the front function key (activation time < 3 s for reset / ON)
• Connection system: PUSH IN, 0.14 mm² to 2.5 mm²
• Width: 12.2 mm
• Dimensions (W x H x D): 12.2 x 125 x 96.5 mm
• Mounting: TS 35 DIN rail; cross-connectable with maxGUARD potential distribution terminals to build a combined load monitoring and distribution station
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (file E258476), RoHS compliant
• Order number: 2080650000
