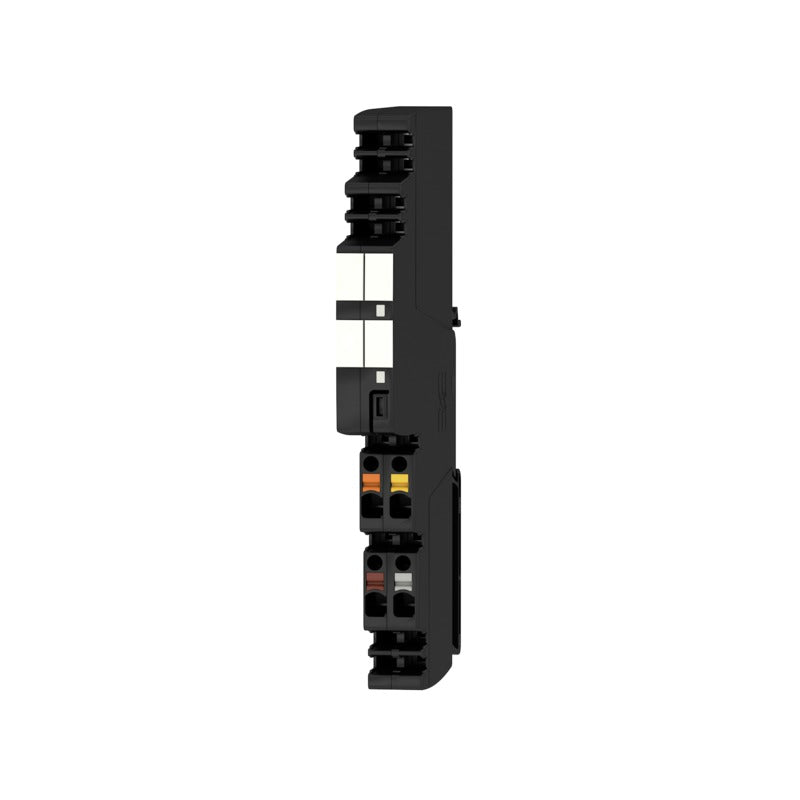

maxGUARD Control Module, 24VDC - AMG CM
- IP Rating
- Voltage
Standards & certifications
IP20Ingress protection

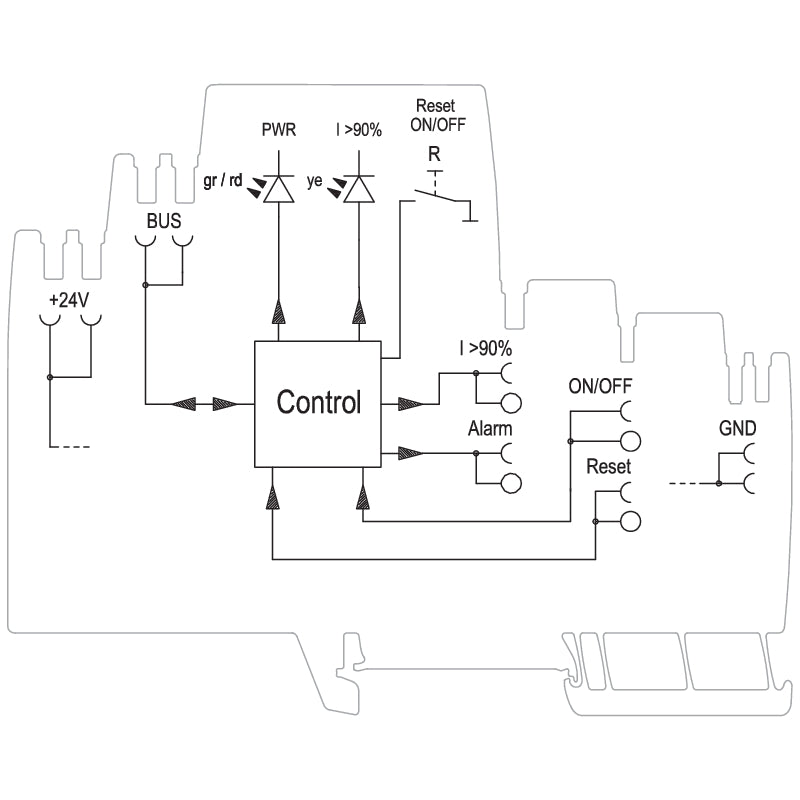

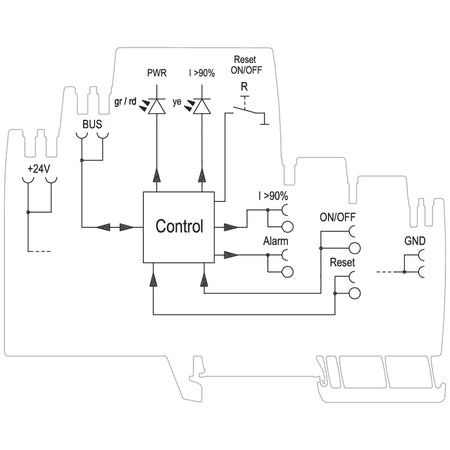

The Weidmüller maxGUARD AMG CM is the control module that drives the station's internal bus and forms the two-way link between the ELM load monitoring channels and an external controller or PLC. It differs from the AMG AM in being bidirectional: as well as reporting alarm and I > 90 % pre-warning on short-circuit-proof transistor outputs, it accepts Reset and ON/OFF inputs so channels can be switched and acknowledged remotely. The outputs are positive-switching rather than floating, so specify the AMG AM where galvanic isolation of the signalling is required.
- Function: Control module, drives the internal bus and links the ELM channels to an external control unit or PLC
- Supply voltage: 24 V DC, range 18…30 V DC
- Current consumption: 25 mA idle, 225 mA at full load
- Control inputs: Reset and ON/OFF (2 terminals); input resistance 10 kΩ; switching hysteresis LOW to HIGH 15 V, HIGH to LOW 5 V
- Outputs: 2 x transistor, positive-switching, short-circuit proof — alarm and I > 90 % pre-warning
- Output rating: 24 V / 20 mA
- Status LEDs: Green (operation; early warning when output current exceeds 90 % of rated), red (load monitoring disconnected, alarm triggered or internal error)
- Connection system: PUSH IN
- Width: 12.2 mm
- Dimensions (W x H x D): 12.2 mm x 125 mm x 96.5 mm
- Operating temperature: −25 °C to +70 °C
- Protection degree: IP20
- Approvals: UL (file E258476), RoHS compliant (exemptions 7a, 7c-I)
- Order number: 2081900000
