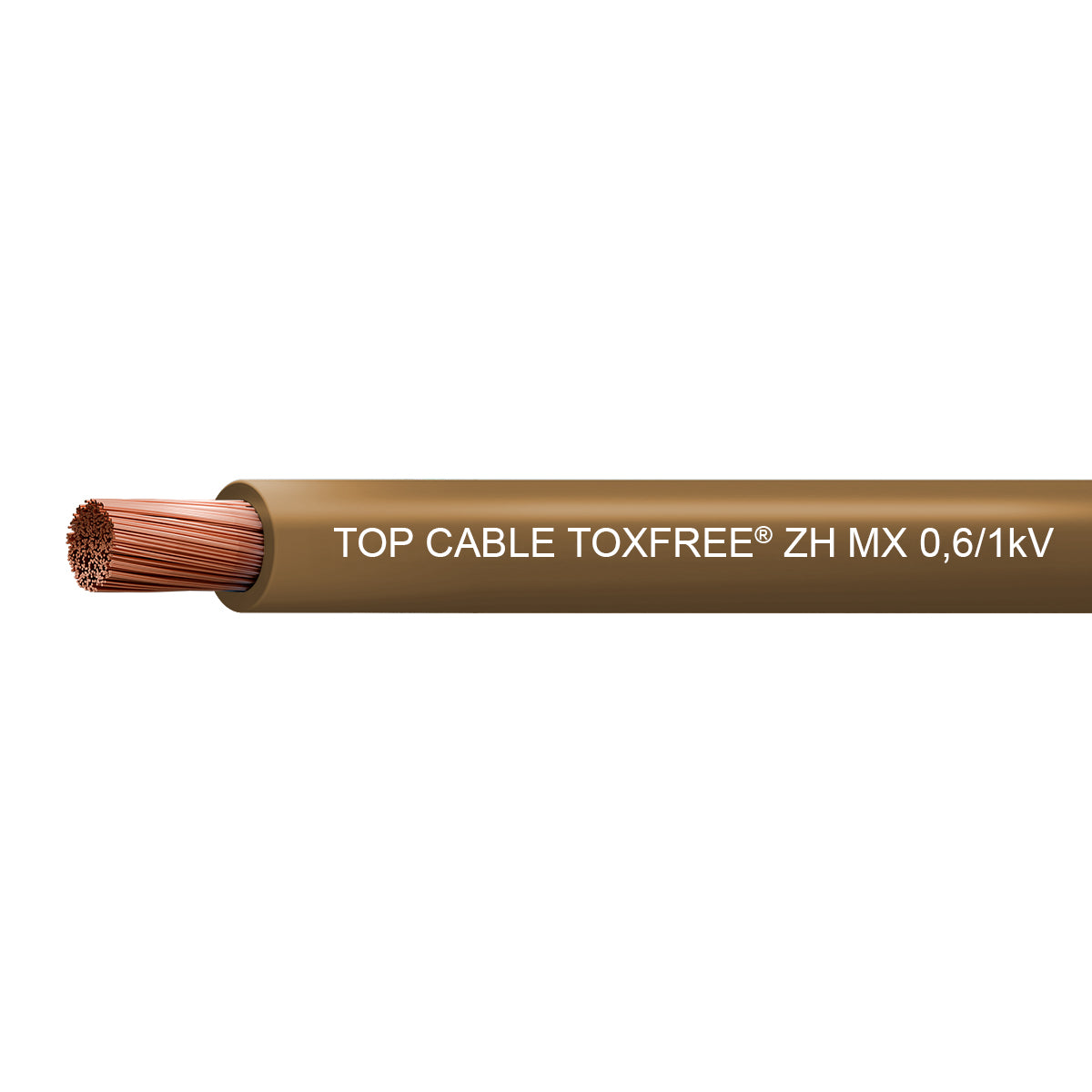

LSZH Marine Panel Wire 1x2.5mm Brown 100M Roll

Toxfree ZH MX – LSZH Marine Panel Wire

The Toxfree® ZH MX is a premium-specification, flexible halogen-free cable specifically engineered for electrical panel wiring. This high-performance cable is dual-rated for both industrial panel applications and marine use, carrying DNV-GL certification. It is highly recommended for use in public places and for installations where fire safety and low smoke emissions are critical.

Key Features:

• Dual-Rated Performance: Certified for both industrial electrical panel wiring and marine applications (DNV-GL).
• High Temperature Rating: Rated for a maximum conductor temperature of 90°C.
• Superior Safety: Low Smoke Zero Halogen (LSZH) construction ensures minimal corrosive gas and smoke emission in the event of a fire.
• Enhanced Voltage Rating: 0.6/1kV rating provides increased electrical performance over standard 450/750V panel wires.
• Flexible Construction: Class 5 electrolytic annealed copper conductor allows for easy routing in tight cabinet spaces.
• Environmental Resilience: Offers acceptable chemical and oil resistance for industrial environments.

Standards & Compliance:

• IEC 60092-353 (Design and construction).
• IEC 60332-1 & 60332-3-22 (Flame and Fire non-propagation).
• IEC 60754-1 & 60754-2 (Halogen-free and low corrosive gases).
• IEC 61034 (Low smoke emission).
• DNV-GL / RoHS / CE compliant.
