AS-40E3-40A Air Circuit Breaker 4000A 3P Drawout + Cradle — LS Electric
AS-40E3-40A Air Circuit Breaker 4000A 3P Drawout + Cradle — LS Electric

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

LS Electric

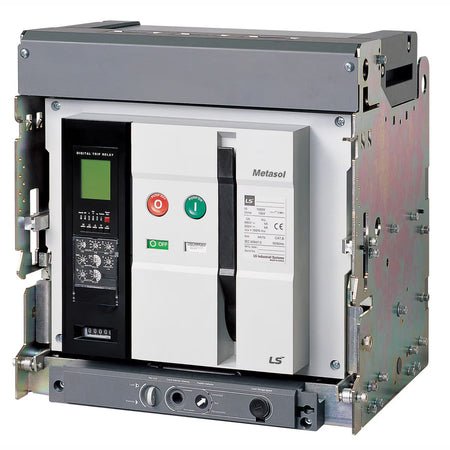

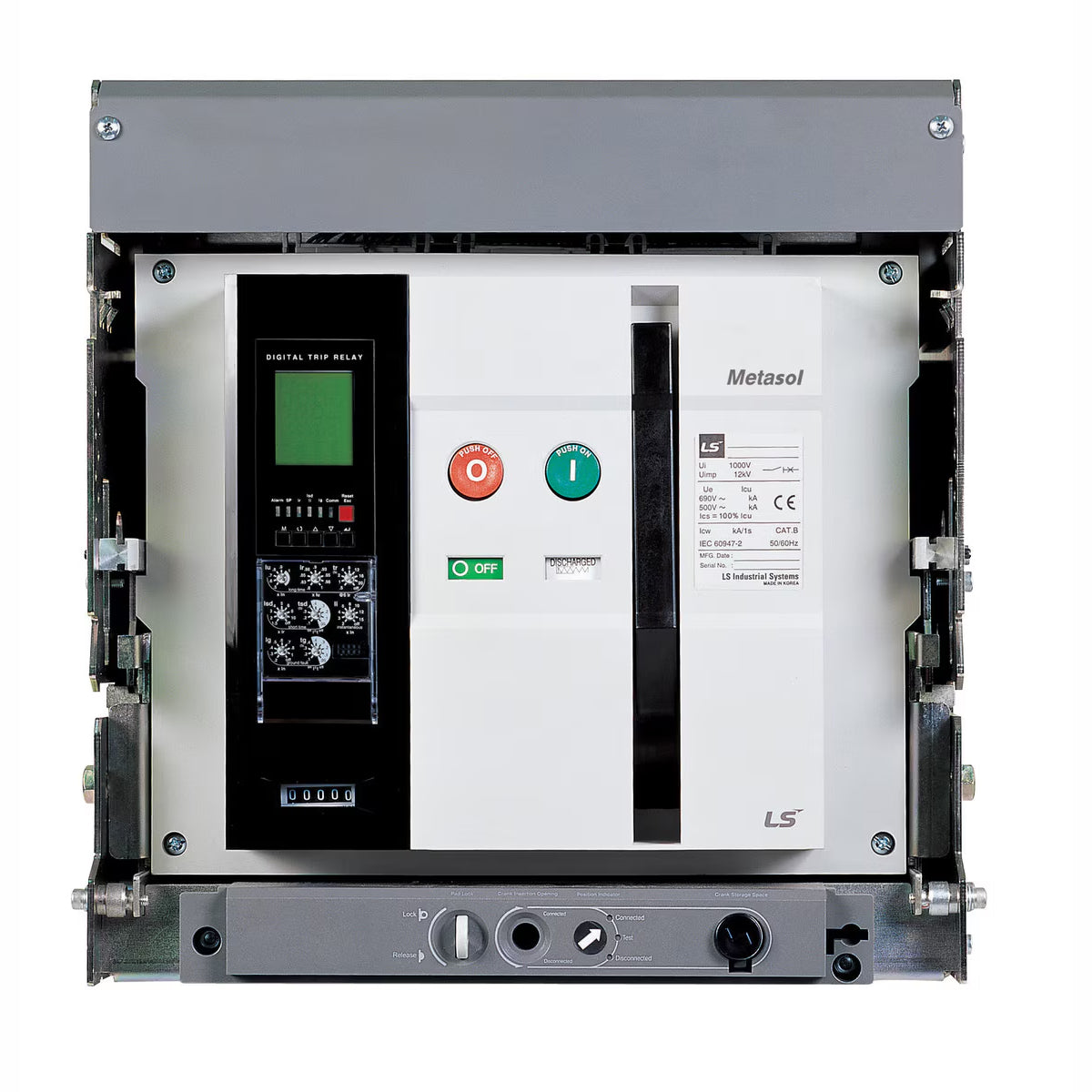

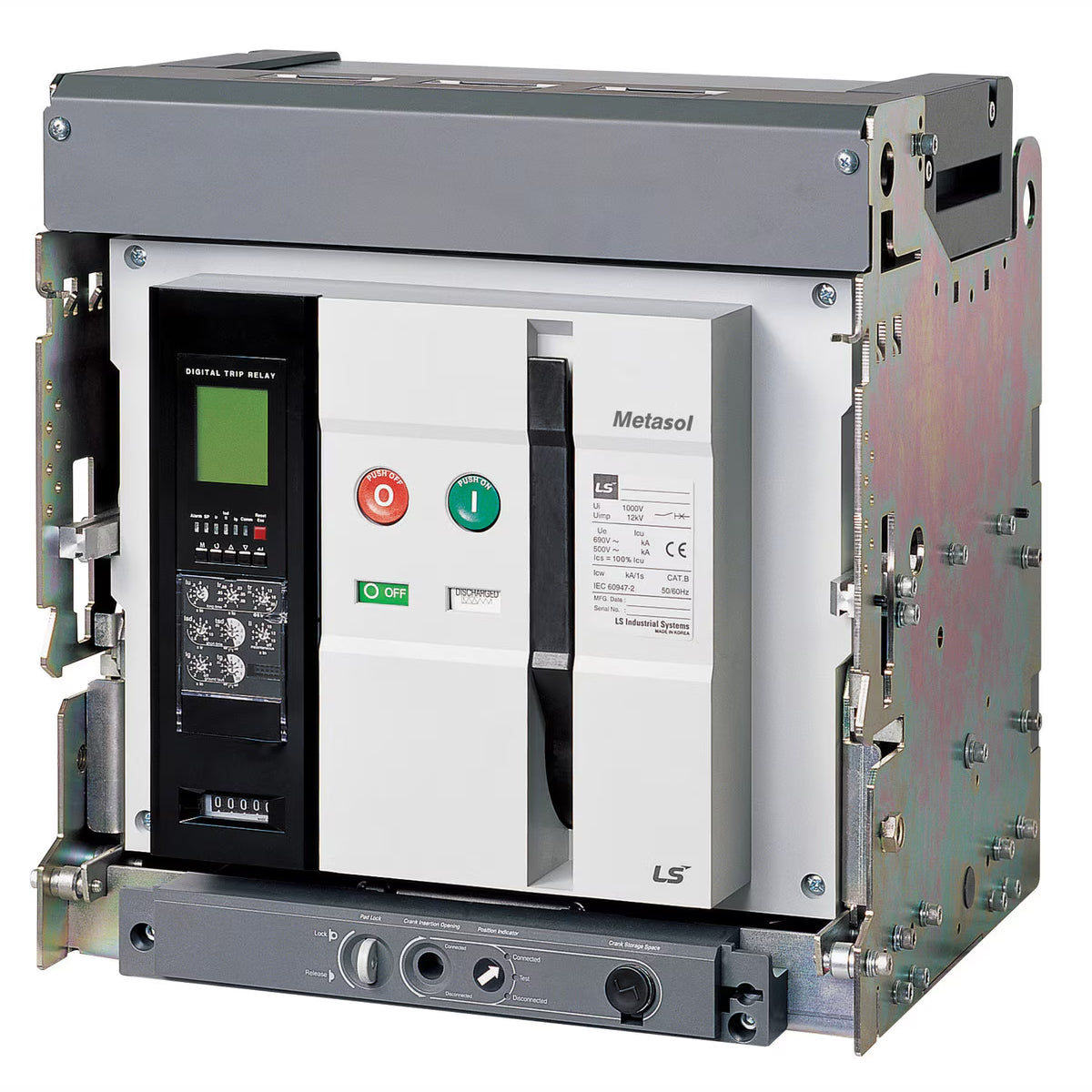

AS-40E3-40A 4000A 3P | LS Metasol 85kA Air Circuit Breaker Drawout + Vertical Cradle

SKU
$7,150 ex. GST $7,865 inc. GST
-45% Clearance $12,970.74 AUD
$7,150 ex. GST $7,865 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
2 in stock across 2 warehouses
  • Type Electronic Trip
  • Series Metasol
  • Mounting Drawout
  • Weight (kg) 102
  • Operating Temp −20°C to +60°C
  • Country of Origin KR
  • Standards
    • IEC 60947-1
    • IEC 60947-2
  • Certifications
    • CE
  • Voltage 690VAC
  • Current 4000A
  • Poles 3 Pole
  • Contacts 3NO+3NC
  • Size E Frame

Standards & certifications

CEEU conformity IEC/EN 60947-1 · 60947-2 Tested standards
Product Brochure PDF

AS-40E3-40A 4000A 3P | LS Metasol 85kA Air Circuit Breaker Drawout + Vertical Cradle

LS Electric AS-40E3-40A: A 4000A drawout ACB, the largest E-frame rating, for main incomers on large industrial and infrastructure switchboards. Supplied with a vertical-terminal cradle. End of life: remaining stock only.

Features and Specifications

  • Rated current (In): 4000A, 3 pole
  • Rated operational voltage (Ue): 690VAC, 50/60Hz. Rated insulation voltage (Ui): 1000V. Rated impulse withstand (Uimp): 12kV
  • Rated ultimate breaking capacity (Icu): 85kA at 220–415V, 85kA at 550–690V. Service breaking capacity Ics = 100% Icu
  • Rated making capacity (Icm): 187kA peak at 415V
  • Rated short-time withstand (Icw): 85kA 1s / 75kA 2s / 65kA 3s
  • Frame: E-frame. Mechanical life 15,000 operations, electrical life 5,000 operations
  • Dimensions (drawout with cradle, H x W x D): 430 x 412 x 375 mm
  • Mounting: Drawout, supplied with AL-S40E3-AVFN vertical drawout cradle (automatic connection, vertical terminals, safety shutter)
  • Trip relay: A-type (ammeter) electronic trip relay with L, S, I and G protection (vector-sum ground fault), 50Hz self-powered, no communication (AG5, superseded by the AH5 trip relay)
  • Trip relay settings: long-time delay (Ir = 0.8–1.0 x Iu, Iu = 0.5–1.0 x In), short-time Isd 1.5–10 x Ir (I²t on/off), instantaneous Ii 2–15 x In, ground fault Ig 0.2–1.0 x In
  • Trip relay features: LCD current display (±1.0%), trip-cause and overload alarm LEDs, 10 fault records (ZSI, digital outputs and communication need an external control supply, not available on self-powered AG5)
  • Options fitted: Manual spring charging (no motor), no closing coil, no shunt trip, 3a3b auxiliary contacts (OFF-charge), no UVT, On/Off button lock
  • Operating temperature: −20°C to +60°C (derating above 45°C)

Standards (& Conformities): IEC 60947-1, IEC 60947-2, CE. Approvals: KEMA, KERI, KS, GOST.

Ordering Code:

AS-40E3-40A MAD0D0AX AG5U0B + AL-S40E3-AVFN

What's Included: AS-40E3-40A air circuit breaker and AL-S40E3-AVFN drawout cradle.

Full ratings, trip curves and accessories: LS Susol & Metasol ACB catalogue.
