LED Light 24VDC with On/Off Switch, Magnet Mount

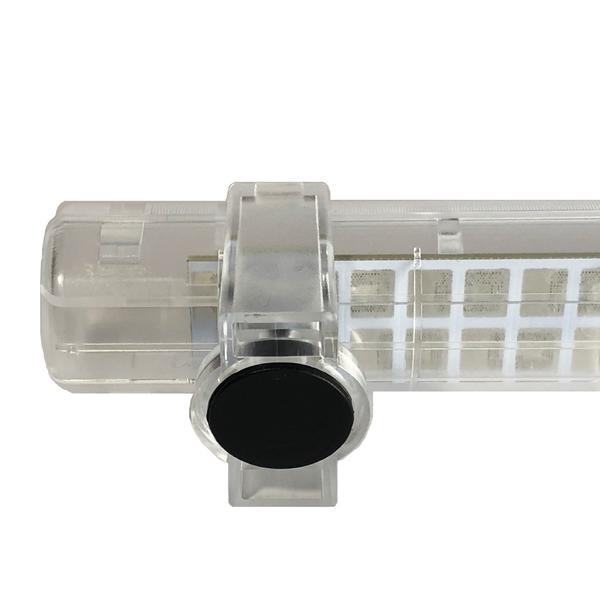

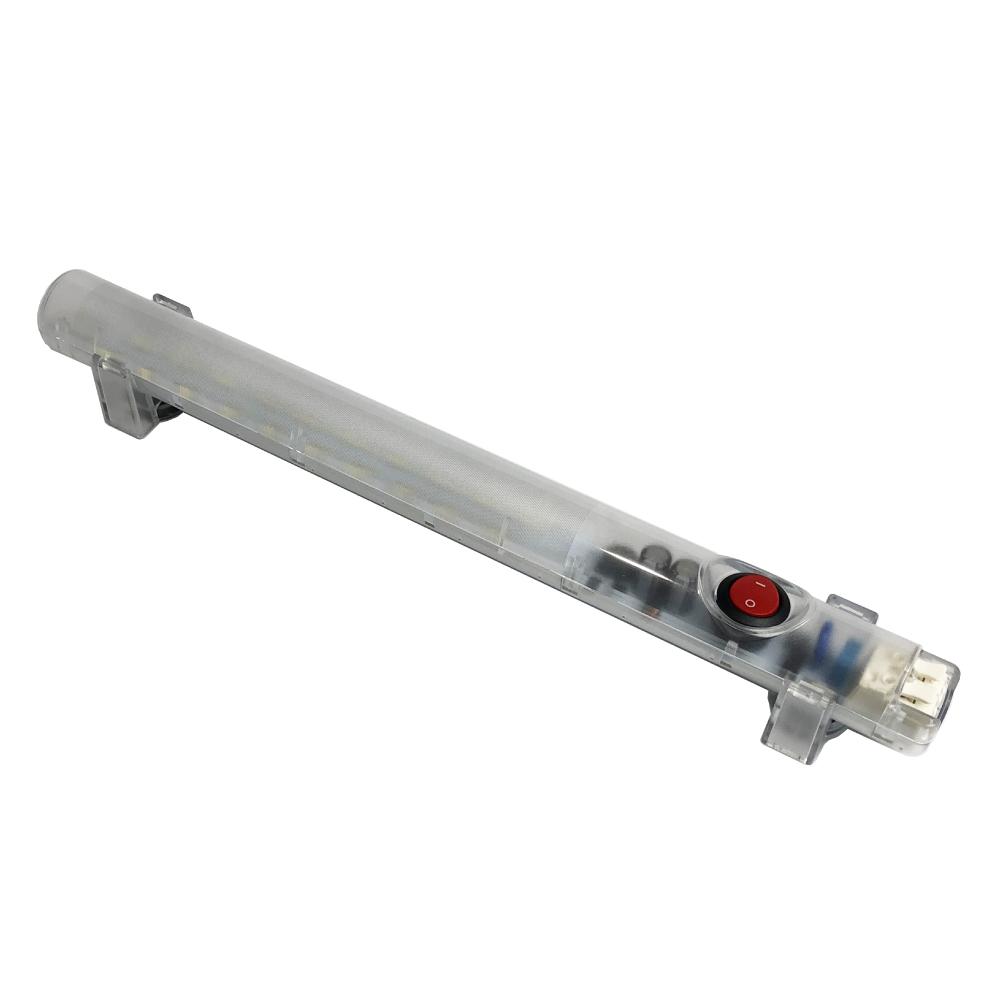

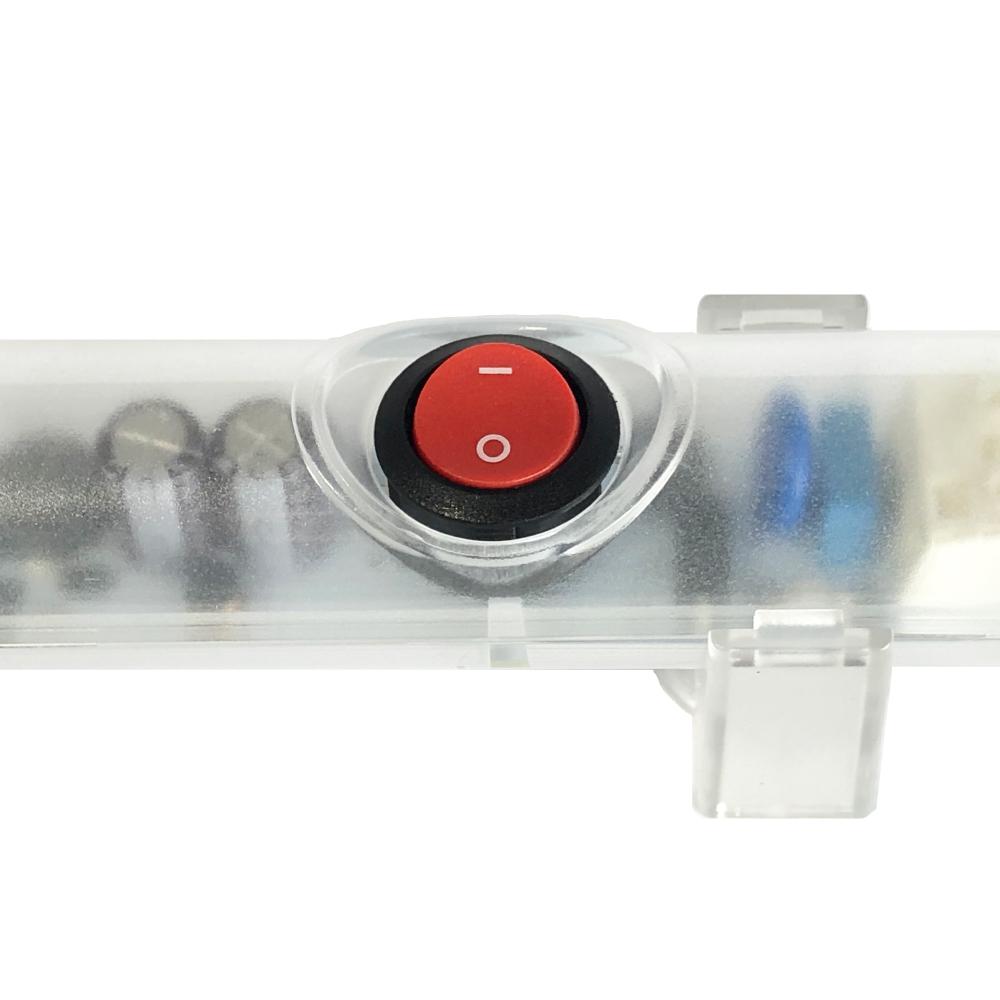

IP Enclosures slimline, high efficiency LED light for electrical enclosure. Spring terminal connection. Fixing clips allow lamp to be rotated to suit lighting needs. Provided with integral on-off switch and magnet-mounting for ease of installation. Made in Italy.
| Features | Unit | IP-LEDLAMP3201 |
|---|---|---|
| Power supply | V/Hz | 24VDC |
| Luminosity | Lm | 400 |
| Lamp type | - | LED |
| Power consumption | W | 2.5 |
| Service life (@ 20°C) | hr | 60.000 |
| Switch | - | On/off switch |
| Electrical connection | - | 2-poles spring terminals ** |
| Casing | - | Plastic |
| Protection degree / Class | - | IP20 / Classe II |
| Operating temperature | °C (°F) | -30 / +60 (-22 / +140) |
| Storage temperature | °C (°F) | -40 / +85 (-40 / +185) |
| Mounting | - | magnet fixing |
| Installation position | - | Variable |
| Dimensions | mm | |
| Weight (with packaging) | kg | 0.175 (0.225) |
| Package dimensions | mm | 415x50x44 |
| Conformity/Certifications | - | CE  File n° E301229 |
Available through TROPAC, stocked in QLD, NSW and VIC, stocked in Auckland, stocked in the UK. Free shipping on all AU & NZ online orders — terms apply.
Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
