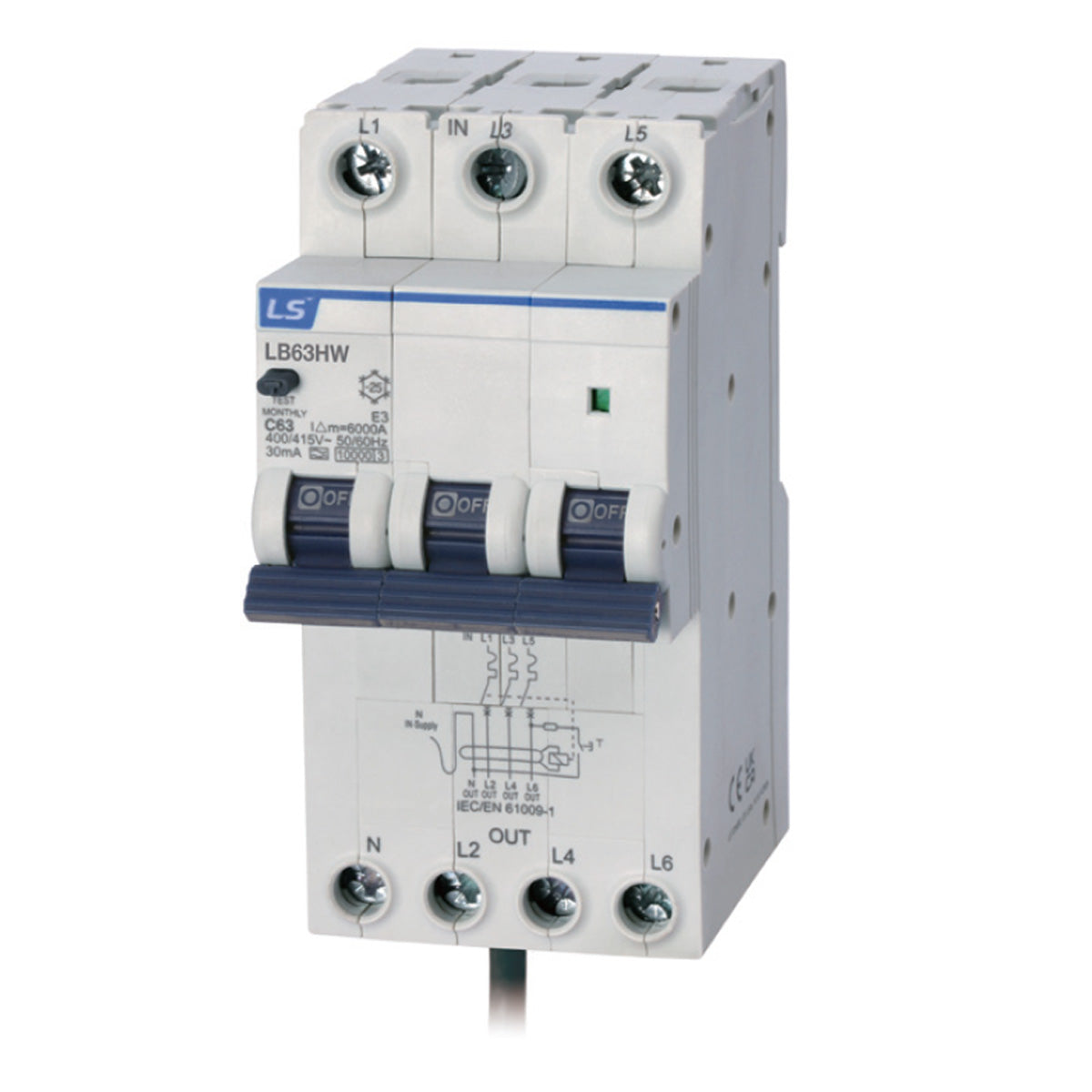

LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve — LS Electric
LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve — LS Electric

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

LS Electric

LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve

SKU
$213.98 ex. GST $235.38 inc. GST
In stock
124 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Current 40A
  • Poles 3 Pole

LB63HW 3P+N C40 30mA A-TYPE | RCBO 40A 3P+N 10kA C Curve


The LS Electric LB63HW 3P+N RCBO is engineered for robust protection in industrial and commercial applications. Rated at 40A with a 10kA short-circuit capacity, it features a C-curve tripping profile, A-type RCD sensitivity at 30mA, and supports electronic trip mechanisms. Designed to IEC/EN 61009-1 standards, this RCBO provides integrated overload, short-circuit, and residual current protection. Its 500V insulation voltage, IP20 rating, and 35mm DIN rail compatibility make it ideal for panel installations requiring compact multi-pole protection. Supports cable terminations up to 25mm² with a 2Nm tightening torque.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
