Home » Enclosures» IP69K Hygienic Quarter Turn Lock For Electrical Enclosures
IP69K Hygienic Quarter Turn Lock For Electrical Enclosures — IP Enclosures
IP-L030 - image 2
IP69K Hygienic Quarter Turn Lock For Electrical Enclosures — IP Enclosures
IP-L030 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

IP69K Hygienic Quarter Turn Lock For Electrical Enclosures

SKU
$59.64 ex. GST $65.60 inc. GST
In stock
34 in stock across 2 warehouses
  • Type Quarter Turn
  • Material Stainless Steel 316

IP69K Hygienic Quarter Turn Lock For Electrical Enclosures

FEATURES

• Dirt resistant and easy to clean
• The lock has been tested according to the GS-NV 6:2015/12 for hygiene requirements

MATERIAL

HOUSING: 316 Stainless Steel
KNOB: 316 Stainless Steel
CAM: 304 Stainless Steel
NUT: 304 Stainless Steel
ORING: Silicone

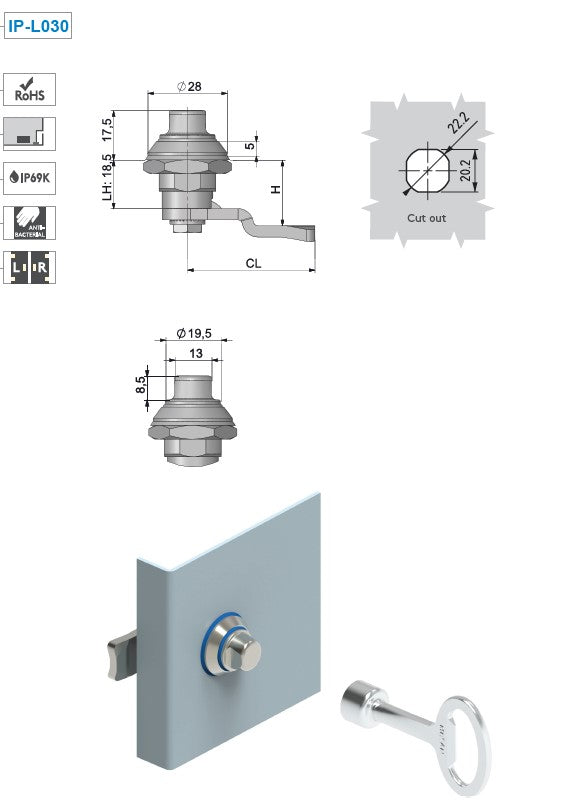

DIMENSIONS

H=25.5mm

CL=49mm


Key to suit: IP-L032

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
